4-20mA 0-10V Weighing Indicator Controller For Auto Weight Checking

4-20mA 0-10V Weighing Indicator Controller For Auto Weight Checking

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-M60S(L)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 30-50usd/pcs
Packaging Details: 1pcs/box
Delivery Time: 1-3days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/day
Get Best Price Contact Now

Detail Information

Power Supplier: DC12~24V Outline Size: 71.5×113×57.9mm [W×H×D]
Product Name: Guide Rail Weighing Indicator Application: Load Cell Company
High Light:

10V Weighing Indicator Controller

,

20mA Weighing Indicator Controller

,

Auto Checking Weighing Indicator Controller

Product Description

4-20mA 0-10V loadcell weight transmitter Weighing Indicator Controller

BST106-M60S[L] Guide Rail Type
Weighing / Force Measuring Control Module
Weight/Force Display, Peak Value Detection / Display Holding,
Auto Weight-checking, Setpoint DO Output, AO/Digit Transmission

Applications
Weight/Force Display, Peak Value Detection&Display Holding, Auto Weight-checking, Setpoint DO Output and AO/Digit Transmission.

Main Features:
1. Applications: Weight/Force Display, Peak Value Detection&Display Holding, Auto Weight-checking, Setpoint DO Output and AO/Digit Transmission.
2. EMC design with high anti-jamming capability, suitable for industrial environment.
3. 32-bit ARM CPU with 48MHz clock & high arithmetic speed.
4. 6+6 Red LED digital tubes for English character and digit display.
5. 4-key English keypad for Menu&Shortcut mode operation.
6. 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and max. sampling frequency 3200Hz.

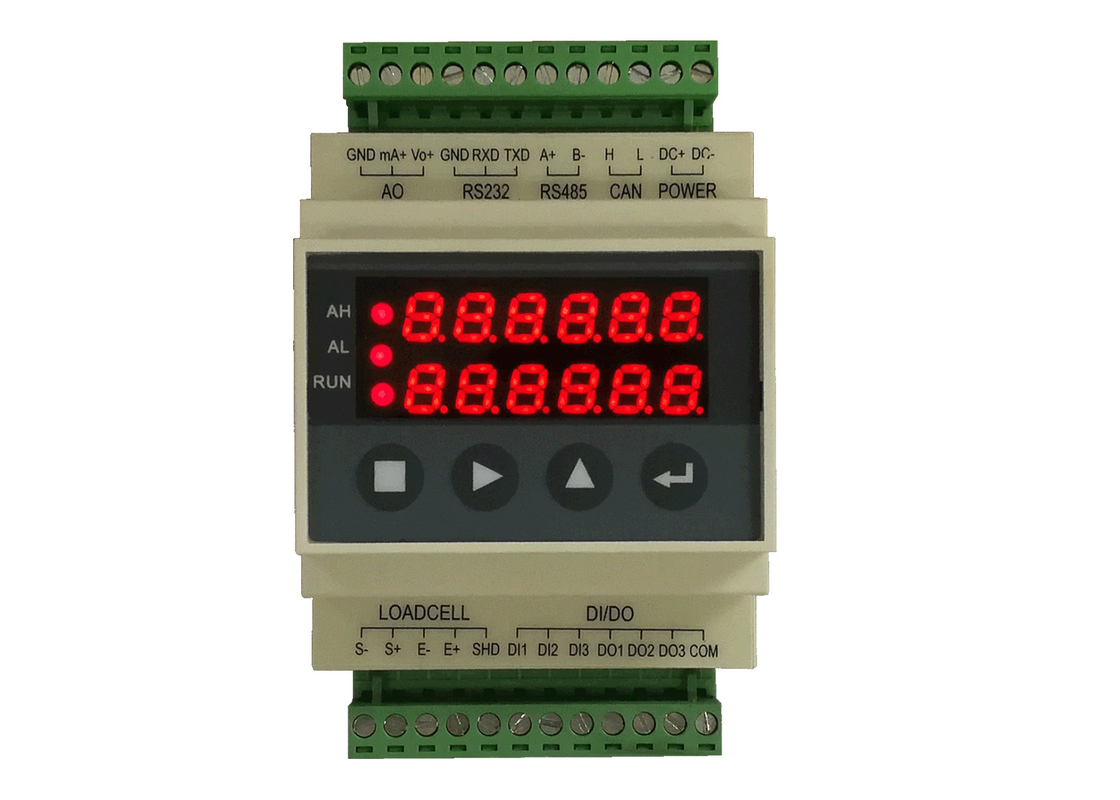

4-20mA 0-10V Weighing Indicator Controller For Auto Weight Checking 0


Technical Specifications:

Display
LED number 6+6 Red LED digital tubes for English character and digit display
Weight Display Range -9,999~+99,999
Scale Capacity Setting Range 1~99,999
Scale Division Optional 1, 2, 5, 10, 20, 50, 100, 200, 500
Display Resolution 1/50,000
Decimal Point Position Optional 0, 0.0, 0.00, 0.000, 0.0000
Display Refreshing Time Setting Range 0.01~1.00s
Keypad
4-key English keypad for Menu&Shortcut mode operation
Weighing Signal Interface
Excitation Voltage/Max. Current DC5V/120mA [8-350Ω loadcells]
Signal Input Range 0~12.5mV
Output Sensitivity of Loadcell 1.0~2.5mV/V
Optional Sampling Frequency 3200Hz, 1600Hz, 800Hz, 400Hz, 200Hz, 5Hz
Switch&Analog Signal Interface
DI 3 Optional&definable normally open switch inputs
DO 3 Optional&definable normally open transistor switch outputs
AO 0~20mA
VO 0~10V
Digital Communication Interface
COM1 RS232
COM2 Optional RS485
COM3 Optional CANBUS
Connectable Host IPC/PLC and LED Remote Display


User Interface Diagram

4-20mA 0-10V Weighing Indicator Controller For Auto Weight Checking 1



Terminal

4-20mA 0-10V Weighing Indicator Controller For Auto Weight Checking 2

Delivery

4-20mA 0-10V Weighing Indicator Controller For Auto Weight Checking 3
