Electronic Weighing Indicator For Batching Machines

China Electronic Weighing Indicator For Batching Machines supplier
Electronic Weighing Indicator For Batching Machines supplier Electronic Weighing Indicator For Batching Machines supplier Electronic Weighing Indicator For Batching Machines supplier Electronic Weighing Indicator For Batching Machines supplier Electronic Weighing Indicator For Batching Machines supplier

Large Image :  Electronic Weighing Indicator For Batching Machines

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-B68(U)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Power Supply: DC24V DI: 6
DO: 8 COM1: RS232
COM2: RS485

Ration Batching Controller Electronic Weighing Indicator For Batching Machines




     Main Features:

  • Suitable for Ration Batching Scale with 4-Material&2-Speed Feeding [Single-Scale Mode].
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • 32-bit ARM CPU with 48MHz clock & higher arithmetic speed.
  • 6+8 Red LED digital tubes for English character and digit display.
  • 4-key English keypad.
  • Menu&Shortcut mode operation with key tone.
  • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
  • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
  • Max. Connection Quantity: 4 Loadcells (350Ω).
  • Auto Zero Initial Calibration after Power-on, Auto Zero Tracking, Zero Fine Adjustment, Zero Calibration and Load Calibration functions available.
  • Optional Data Calibration function.
  • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
  • 6 Normally open switch inputs [DI] and 8 normally open transistor switch outputs [DO].
  • Optional ‘High/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.
  • 1 Optional and definable analog signal AO[4~20mA] for weight signal output or ‘High/Low Speed Feed’ control.Optional ‘Fall Value Auto Correction’ function.
  • Optional ‘Fall Value Auto Correction’ function.
  • Optional ‘Auto Pause for Deviation Alarm’, ‘Auto Pause for Gross Weight Upper Limit Alarm’ and ‘Manual Pause’ functions.
  • Optional ‘Target Batch Control’ function [With Target Batch Count finished, the batching process will stop automatically].
  • ‘Batching Process Power-off Protection’ function available.
  • One Batch Record can be queried.
  • 2 Communication ports [RS232&RS485] for connecting Host IPC/PLC and LED Remote Display.
  • With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

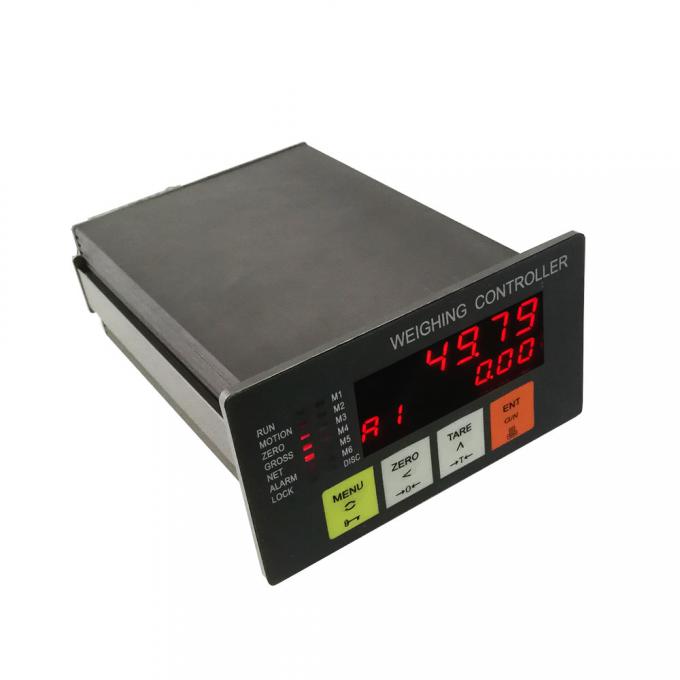

Electronic Weighing Indicator For Batching Machines

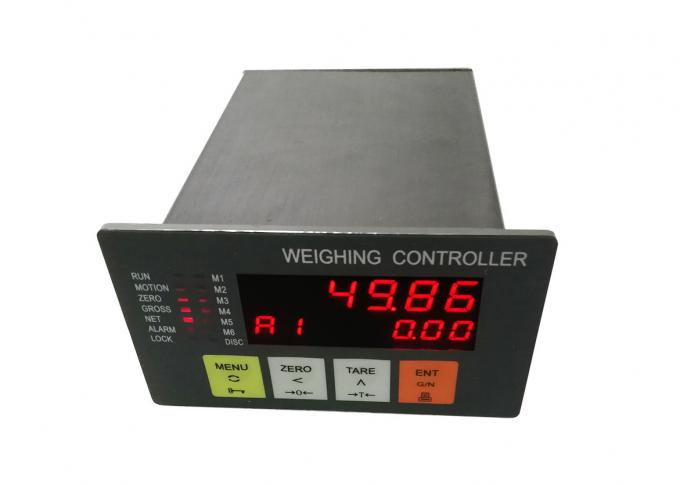

Electronic Weighing Indicator For Batching Machines

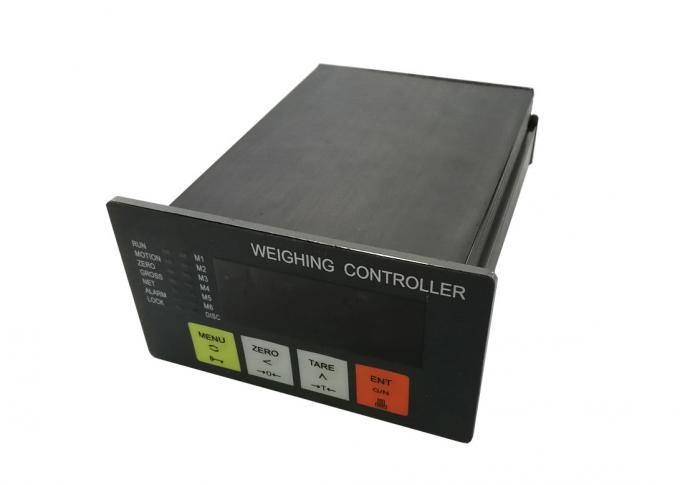

Electronic Weighing Indicator For Batching Machines

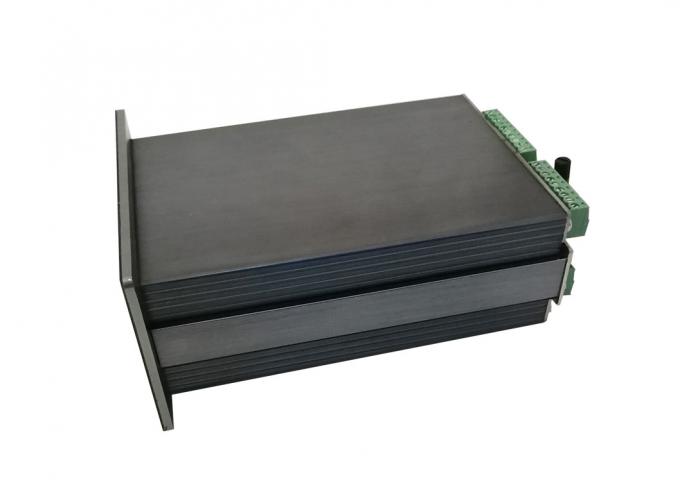

Electronic Weighing Indicator For Batching Machines

     Technical Specification

  • Executing Standard
  • CMC GB/T 7724-2008PRC National Standard.
  • OMIL R76: 2006International Recommendation.
  • Accuracy Grade: III.
  • Verification Accuracy: 0.03%.
  • Static Weighing Accuracy: 0.2%~0.5%.
  • Batching Accuracy: 0.2%~0.5%.
  • Display
  • 6+8 Red LED digital tubes for English character and digit display.
  • Weight Display Range: -99,999~+999,999.
  • Scale Capacity: Setting Range 1~999,999.
  • Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500.
  • Display Resolution: 1/100,000.
  • Weight Unit: Optional kg, t, g, none.
  • Decimal Point: Optional 0, 0.0, 0.00, 0.000, 0.0000.
  • Display Refreshing Time: Setting Range 0.01~1.00s.
  • Kaypad
  • Model Panel-mounting: 4-key English keypad.
  • Model Explosion-proof: 6-key English keypad.
  • Menu&Shortcut mode operation with key tone.
  • Loadcell Interface
  • Excitation Voltage/Max. Current: DC9V/120mA [4-350Ω loadcells].
  • Signal Input Range: 0~22.5mV.
  • Output Sensitivity of Loadcell: 1.0~2.5mV/V.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • Sampling Frequency: 400Hz.
  • Special anti-vibration digital filtering algorithm.
  • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  • Gain Drift: ±5ppm/℃.
  • Non-linearity: 0.005%FS.
  • Switch&Analog Signal Interface
  • 6 Normally Open Switch Inputs [DI].
  • 8 Normally Open Transistor Switch Outputs [DO]: DC24V, 250mA.
  • 1 Optional&Definable Analog Signal Output [AO]: 4~20mA, Non-linearity: 0.05%FS.

  • Digital Communication Interface
  • COM1: RS232.
  • COM2: RS485.
  • Connectable: Host IPC/PLC and LED Remote Display.
  • Operating Specification
  • Operating Voltage
  • Model Panel-mounting: DC24V±20%.
  • Model Explosion-proof: AC110~240V, 50/60Hz.
  • Max. Power Consumption: 5W.
  • Outline Size
  • Model Panel-mounting: 110×62×150mm [W×H×D].
  • Model Explosion-proof: 256×290×166mm [W×H×D].
  • Panel Cut-out Size
  • Model Panel-mounting: 94×47 mm [W×H].
  • Operating Temperature: -25℃ to +45℃.
  • Storage Temperature: -30℃ to +60℃.
  • Relative Humidity: Max. 85%RH.
  • Application Environment of Model Explosion-proof
  • Explosion gas environment: Zone 1&2.
  • Classes of explosion gas mixture: IIA, IIB.
  • Temperature grades of explosion gas mixture: T1~T6.
  • Ex-mark: Ex d IIB T6 Gb.
  • Protection Level
  • Front Panel of Model Panel-mounting: IP65.
  • Model Explosion-proof: IP65.
  • Weight
  • Model Panel-mounting: Approx. 0.5kg.
  • Model Explosion-proof: Approx. 9.2kg.

     Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.


Menu Operation
Key NameDescription
【MENU】

Enter Main Menu.
Exit.

【ENT】Enter / Save / Alarm Acknowledge.
【◄】

Cursor shifts left.
Display the previous option.

【►】

Cursor shifts left.
Display the next option.

【▲】

Display the next interface or option.
Digit input: +1 ( 0~9 loop).

【▼】

Display the previous interface or option.
Digit input: -1 ( 0~9 loop).

Quick Operation

【MENU】
【Ñ】
*

  • Key-locking.
  • Key-unlocking.

【◄】
(【SET】)

M1~M4 Target Values setting.

【◄】
【ZERO】
【→0←】
*

  • [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
  • [≡ZEro≡] Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight.
  • The controller will switch to Gross Weight display.

【▲】
【TARE】
【→T←】
*

  • [≡tArE≡]: Manual Tare without Power-down Protection.
  • [-PStr-]: Preset Tare Weight with Power-down Protection.
  • [-rStr-]: Clear Tare Weight with Power-down Protection.
  • The controller will switch to Net Weight display.

【ENT】
【G/N】

Gross Weight / Net Weight display switch.
【ENT】

Pause State:

  • [Cont]: Recover Running.
  • [StoP]: Stop.
