Decrement Ration Bagging Controller Indicator 0.2%~0.5% Static Weighing Accuracy

Good quality Batch Weighing Controller for sales
Good quality Batch Weighing Controller for sales
I'm Online Chat Now

Decrement Ration Bagging Controller Indicator 0.2%~0.5% Static Weighing Accuracy

China Decrement Ration Bagging Controller Indicator 0.2%~0.5% Static Weighing Accuracy supplier
Decrement Ration Bagging Controller Indicator 0.2%~0.5% Static Weighing Accuracy supplier Decrement Ration Bagging Controller Indicator 0.2%~0.5% Static Weighing Accuracy supplier Decrement Ration Bagging Controller Indicator 0.2%~0.5% Static Weighing Accuracy supplier Decrement Ration Bagging Controller Indicator 0.2%~0.5% Static Weighing Accuracy supplier

Large Image :  Decrement Ration Bagging Controller Indicator 0.2%~0.5% Static Weighing Accuracy

Product Details:

Place of Origin: China
Brand Name: SUPMETER
Certification: CE
Model Number: BST106-B66[D]

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3~30 working days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Customization: Available Accuracy: III
Verification Accuracy: 0.03% Static Weighing Accuracy: 0.2%~0.5%
Packing Accuracy: 0.2%~0.5% IP Grade: IP65

Loss In Weight Decrement Ration Bagging Packing Controller Indicator



Main Application:

Suitable for Loss-in-weight Ration Packing Scale with Auto Bag-releasing or Manual Bag-releasing and Loss-in-weight Bulk Material Ration Feeding Scale.



Main Features

  • Suitable for Loss-in-weight Ration Packing Scale with Auto Bag-releasing or Manual Bag-releasing and Loss-in-weight Bulk Material Ration Feeding Scale.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • 32-bit ARM CPU with 48MHz clock & higher arithmetic speed.

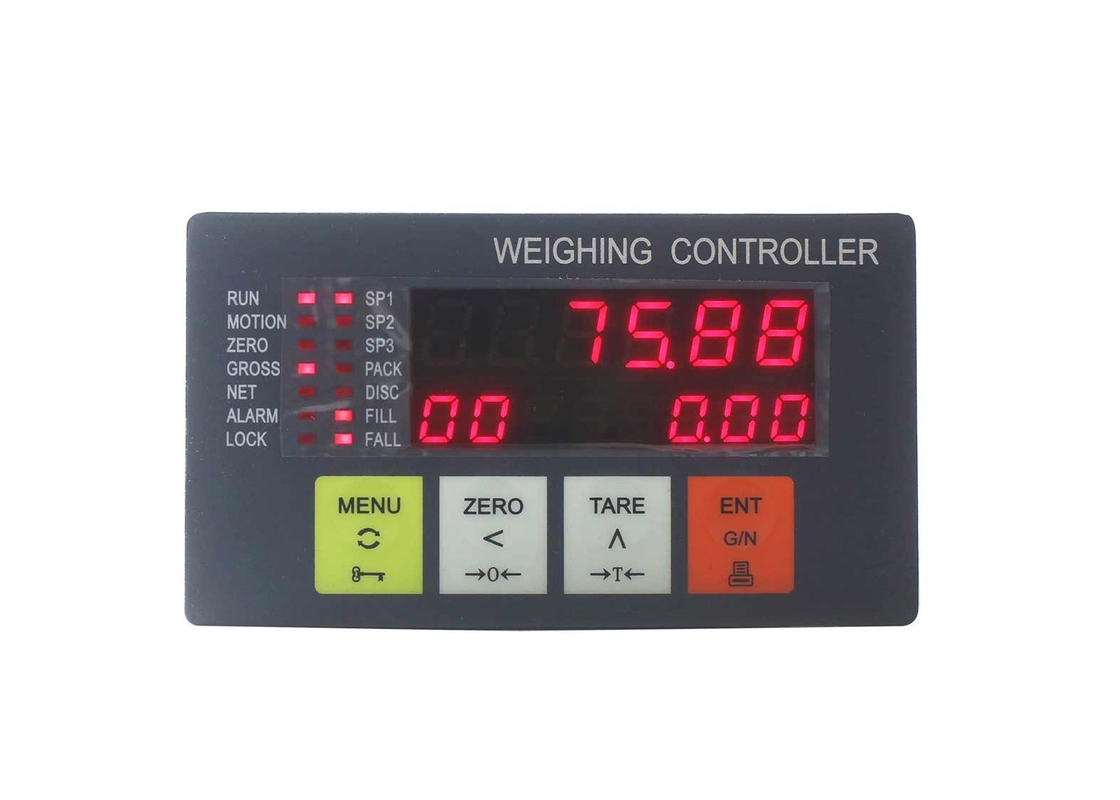

  • 6+8 Red LED digital tubes for English character and digit display.
  • 4-key English keypad.
  • Menu&Shortcut mode operation with key tone.
  • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
  • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and occuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
  • Max. Connection Quantity: 4 Loadcells (350Ω).
  • Auto Zero Initial Calibration after Power-on, Auto Zero Tracking, Zero Fine Adjustment, Zero Calibration and Load Calibration functions available.
  • Optional Data Calibration function.
  • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
  • 6 Normally open switch inputs [DI] and 8 normally open transistor switch outputs [DO].
  • Optional ‘High/Medium/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.
  • 1 Optional and definable analog signal AO[4~20mA] for weight signal output or ‘High/Medium/Low Speed Feed’ control.
  • Optional ‘Fall Value Auto Correction’ function.
  • Optional ‘Auto Pause for Deviation Alarm’ function.
  • Optional ‘Target Batch Control’ function [With Target Batch Count or Target Batch Weight finished, the packing process will stop automatically].
  • 2 Communication ports [RS232&RS485] for connecting Host IPC/PLC and LED Remote Display.
  • With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

Technical Specification:



Display 6+8 Red LED digital tubes for English character and digit display
Weight Display Range -99,999~+999,999
Scale Capacity Setting Range 1~999,999
Scale Division Optional 1, 2, 5, 10, 20, 50, 100, 200, 500
Display Resolution 1/100,000
Weight Unit Optional kg, t, g, none
Loadcell Interface Excitation Voltage/Max. Current DC9V/120mA [4-350Ω loadcells]
Signal Input Range 0~22.5mV
Output Sensitivity of Loadcell 1.0~2.5mV/V
Sampling Frequency 400Hz
Non-linearity 0.005%FS
Switch&Analog Signal Interface DI 6 Normally Open Switch Inputs
DO 8 Normally Open Transistor Switch Outputs [DO]: DC24V, 250mA
AO 1 AO:4~20mA
Digital Communication Interface COM1 RS232
COM2 RS485
Connectable Host IPC/PLC and LED Remote Display

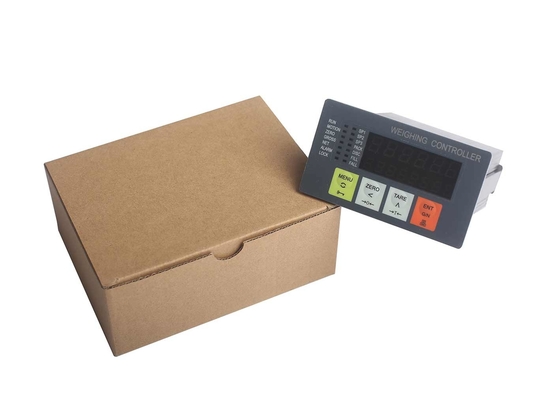

 Package:



Decrement Ration Bagging Controller Indicator 0.2%~0.5% Static Weighing Accuracy



Other Option:



Decrement Ration Bagging Controller Indicator 0.2%~0.5% Static Weighing AccuracyExplosion-proof one: dCX-106B66







FAQ:





1. Sample is Available?



Yes. This product support free sample (Standard one). As long as you can bear the freight charge.



2. What detailed information do I need to provide if I want to place an order?

We need to know the following information: accuracy, Quantity, special requirements if you have, etc.



3. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.



4. What terms of payment are available?

We accept T/T, L/C, Trade assurance, Secure payment, Western Union,etc.



5.When will you arrange the production?

We will arrange the production immediately after receiving your payment.



6. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.



7. How long is the warranty period?

The warranty period for our products is 12 (twelve) months.

If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.

(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
