Liquid Tank Weighing Scale Indicator For Filling Scales System

Liquid Tank Weighing Scale Indicators for Filling Scale System, Accurate and Reliable Weighing Scales Controller

Main Applications
Liquid/Gas/Powder Ration Fillingweigher.
‘Fill on Drum’s Top’ / ‘Fill on Drum’s Bottom’ / ‘Step-fill from Bottom’ Modes.

Main Features
1. EMC design with high anti-jam for industrial environment.
2. DC24V power input with reverse polarity protection.
3. Cortex-A8 CPU with 600MHz Clock, 128M Flash.
4. 7” [800×480] or 10.2” [1024×600] TFT touch panel.
5. 24-bit ∑-△ADC with internal resolution 1/1,000,000.
6. High sampling frequency 800Hz.
7. Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.

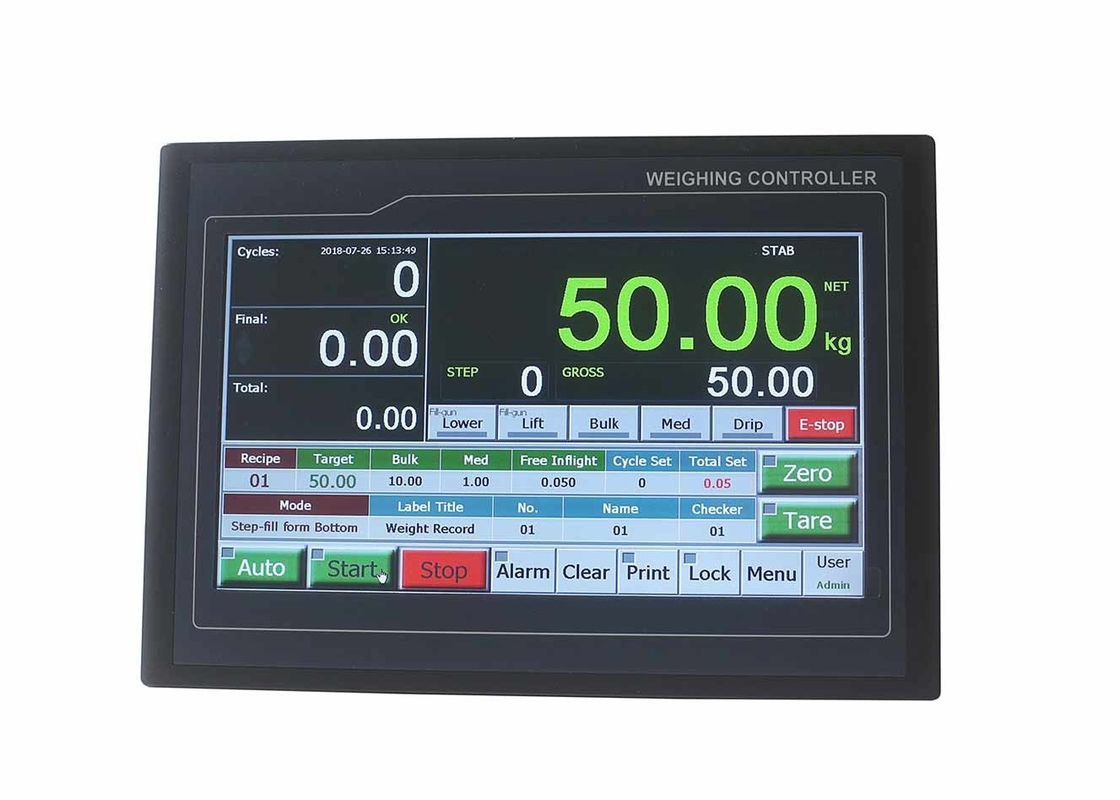

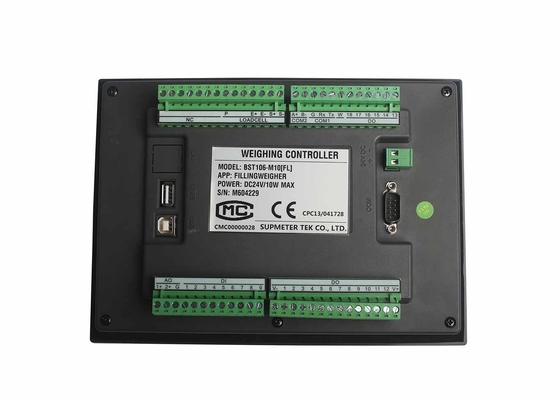

Liquid Tank Weighing Scale Indicator For Filling Scales System 0
Liquid Tank Weighing Scale Indicator For Filling Scales System 1
Liquid Tank Weighing Scale Indicator For Filling Scales System 2

Button Operation

NameOperationState IndicatorAuthorization
【Auto】Auto / Manual [Emergency Stop] switch.

Green: Auto state.
Grey: Manual state.

All Users
【Start】Start.

Green: Running state.
Grey: Stop state.

【Stop】Stop [Valid at Auto-running state].
【Re-run】Clear Alarm & Recover Running.
【E-stop】Emergency Stop.
【Alarm】

Alarm Query / Clear Alarm.
‘Auto/Pause’ state: Recover Running after alarms cleared.

Red: Alarm state.
【Print】Report Print.Green: Auto Print is allowed.
【Lock】

Screen-locking: Locking/unlocking the operating buttons of main user interface.
Auto Screen-locking: Refer to parameter [901].

Flashing Red: Locked.
Grey: Unlocked.

【Menu】Enter Main Menu.
【User】User Login. Display: Operator / Engineer / Admin.
【Lower】Manual Lower Filling Gun.Flashing Green: Filling Gun is moving down.
【Lift】Manual Lift Filling Gun.Flashing Red: Filling Gun is moving up.
【Bulk】Manual Start/Stop Bulk Fill.Green: Working state.
【Med】Manual Start/Stop Medium Fill.
【Drip】Manual Start/Stop Dribble Fill.
【Zero】Manual Zero [No Power-down Protection].Flashing Red.
【Tare】Manual Tare [No Power-down Protection].Flashing Red.
【Clear】Clear Screen: Clear the display values of Filling Weight, Totalized Weight and Batch Count.

Engineer
Administrator



User Login Interface


NameOperationNote
【Login】

User Login.
Exfactory Passwords:

  • Operator: None.
  • Engineer: 0.
  • Administrator: 1.
Operation ‘Main Menu / F5 User / Password / PSW Set’ for Modifying Password.
【User Name】After password inputted, the matching User Name will be displayed.
  • Operator: User with lowest authorization.
  • Engineer: User with higher authorization.
  • Administrator: User with highest authorization.
【Operate】Enter ‘Main User Interface’.Operation ‘Main Menu / F5 User / Password / Login [Logoff]’ for Re-login and Logoff.


Outline Size
Liquid Tank Weighing Scale Indicator For Filling Scales System 3


Installation Mode
Liquid Tank Weighing Scale Indicator For Filling Scales System 4

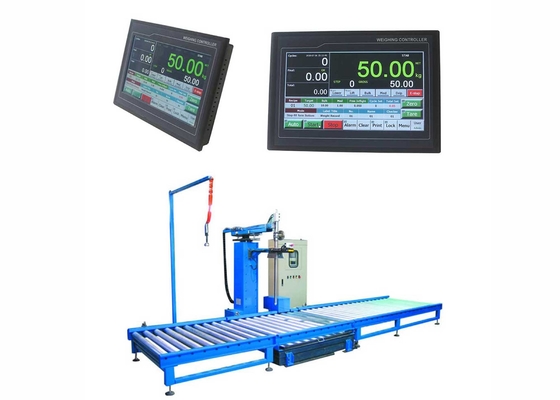

System Diagram
Liquid Tank Weighing Scale Indicator For Filling Scales System 5

Liquid Tank Weighing Scale Indicators for Filling Scale System, Accurate and Reliable Weighing Scales Controller
