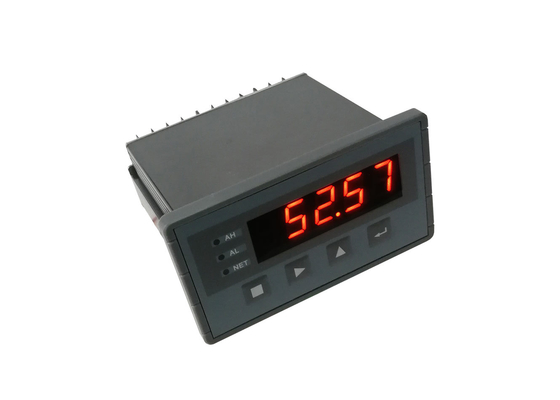

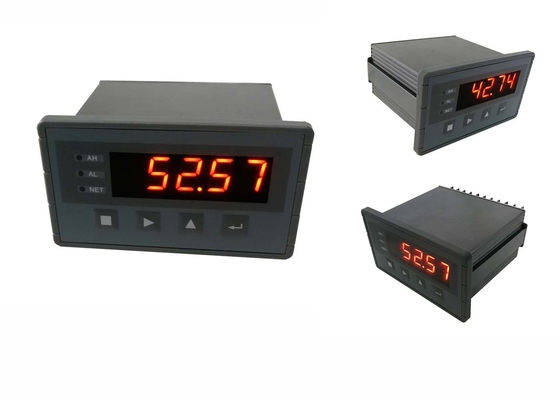

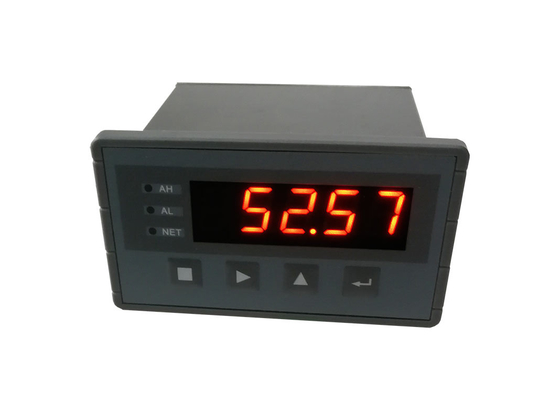

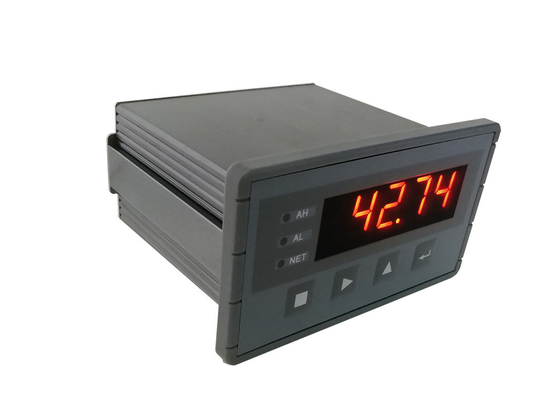

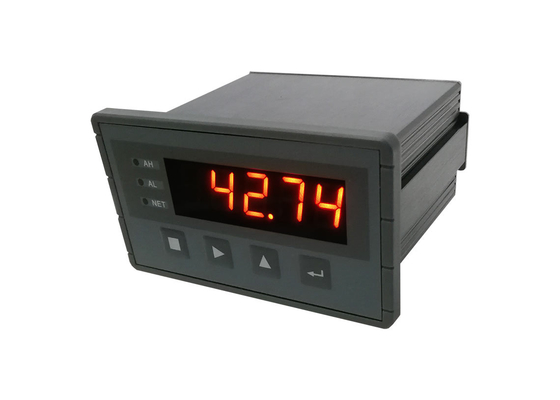

Mini Digital Weight Indicator Controller

Mini Digital Weight Indicator Controller
Mini Digital Weight Indicator Controller Mini Digital Weight Indicator Controller Mini Digital Weight Indicator Controller Mini Digital Weight Indicator Controller Mini Digital Weight Indicator Controller

Large Image :  Mini Digital Weight Indicator Controller

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-B60S

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/month
Detailed Product Description
Power Supply: DC24V COM1: RS232
COM2: RS485
High Light:

digital load cell indicator

,

digital display system and indicators

Mini Weighing Force Measuring Controller Digital Weight Indicator With Weight/Force Display





     Main Features:

  • Applications: Weight/Force Display, Peak Value Detection&Display Holding, Setpoint DO Output and AO/Digit Transmission.
  • 4 Optional Setpoint DO Output Modes: Weight Limit DO Alarm Mode, Weight Increment DO Output Mode, Weight Decrement DO Output Mode and Weight Section DO Output Mode.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • 32-bit ARM CPU with 48MHz clock & higher arithmetic speed.
  • 5 Red LED digital tubes for English character and digit display.
  • Menu&Shortcut mode operation.
  • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 1280Hz.
  • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
  • Optional weighing input signal mV, V and mA for connecting ‘【mV】Output Type Loadcell’, ‘【V】Voltage Output Type Weighing Transmitter’ and ‘【mA】Current Output Type Weighing Transmitter’.
  • Auto Zero Initial Calibration after Power-on, Auto Zero Tracking, Zero Fine Adjustment, Zero Calibration and Load Calibration functions available.
  • Optional Data Calibration, Segmenting Span Correction and Segmenting Weight Calculation functions.
  • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
  • 2 Relay switches with normally open and normally closed contacts for outputting upper limit and lower limit alarm signals.
  • 1 Optional and definable analog signal output [AO: 0~20mA].
  • Optional RS232 and RS485 communication ports for connecting Host IPC/PLC and LED Remote Display.
  • With the multitasking mode, the processes of weighing, alarm output and signal transmission will not be interrupted by parameter setting and the other operations.

Mini Digital Weight Indicator Controller 0

Mini Digital Weight Indicator Controller 1

Mini Digital Weight Indicator Controller 2

Mini Digital Weight Indicator Controller 3



      Technical Specification

  • Executing Standard
  • CMC GB/T 7724-2008PRC National Standard.
  • OMIL R76: 2006International Recommendation.
  • Accuracy Grade: III.
  • Verification Accuracy: 0.03%.
  • Static Weighing Accuracy: 0.2%~0.5%.
  • Display
  • 5 Red LED digital tubes for English character and digit display.
  • Weight Display Range: -9,999~+99,999.
  • Scale Capacity: Setting Range 1~99,999.
  • Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500.
  • Display Resolution: 1/50,000.
  • Decimal Point: Optional 0, 0.0, 0.00, 0.000, 0.0000.
  • Display Refreshing Time: Setting Range 0.01~1.00s.
  • Kaypad
  • 4-key keypad for Menu&Shortcut mode operation.
  • Weighing Signal Interface
  • Excitation Voltage / Max. Current 1: DC5V/120mA for 8-350Ω loadcells.
  • Excitation Voltage / Max. Current 2: DC12V/100mA for weighing transmitter.
  • Optional weighing input signal mV, V and mA for connecting ‘【mV】Output Type Loadcell’, ‘【V】Voltage Output Type Weighing Transmitter’ and ‘【mA】 Current Output Type Weighing Transmitter’.
  • 【mV】Signal Input Range: 0~19.5mV [Output Sensitivity of Loadcell: 1.0~3.5mV/V].
  • 【V】Signal Input Range: 0~2.5V, 0~5V, 0~10V.
  • 【mA】Signal Input Range: 0~20mA.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • Sampling Frequency: 1280Hz.
  • Special anti-vibration digital filtering algorithm.
  • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  • Gain Drift: ±5ppm/℃.
  • Non-linearity: 0.005%FS.
  • Switch&Analog Signal Interface
  • 2 Relay switches with normally open and normally closed contacts for outputting upper limit and lower limit alarm signals.
  • Contact Capacity of Relay Switch: AC250V/DC24V, 1A.
  • 1 Optional&Definable Analog Signal Output [AO]: 0~20mA, Non-linearity: 0.05%FS.

  • Digital Communication Interface
  • COM1: Optional RS232.
  • COM2: Optional RS485.
  • Connectable: Host IPC/PLC and LED Remote Display.
  • Operating Specification
  • Operating Voltage: DC24V±20%.
  • Max. Power Consumption: 5W.
  • Outline Size: 107×60×100mm [W×H×D].
  • Panel Cut-out Size: 94×47mm [W×H].
  • Operating Temperature: -25℃ to +45℃.
  • Storage Temperature: -30℃ to +60℃.
  • Relative Humidity: Max. 85%RH.
  • Protection Level of Front Panel: IP65.
  • Weight: Approx. 0.3kg.

     Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.



Menu Operation
Key Name Description
【■】 Enter Main Menu / Exit.
8 Enter / Save / Alarm Acknowledge.
【►】

Cursor shifts right.

Display the previous option.

【▲】

Display the next interface or option.

Digit input: +1 ( 0~9 loop).



Quick Operation Mode A

Parameter [904]= ‘0. dE’ [Default Set]

Key Name Description
【■】*
  • Key-locking.
  • Key-unlocking.

【►】

(【SET】)

Setpoint parameters setting.

【►】*

(【ZERO】)

(【→0←】)

  • [-ZEro]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
  • [≡ZEro]: Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight.
  • The controller will switch to Gross Weight display.

【▲】*

(【TARE】)

(【→T←】)

  • [≡tArE]: Manual Tare without Power-down Protection.
  • [-PStr]: Preset Tare Weight with Power-down Protection.
  • [-rStr]: Clear Tare Weight with Power-down Protection.
  • The controller will switch to Net Weight display.

8

(【G/N】)

Gross Weight / Net Weight / Net Weight Peak Value display switch.

8】*

(【CLS】)

  • [-CLS] : Clear Screen [Clear the display value of Peak Value].





Quick Operation Mode B

Parameter [904]= ‘1. Au’

Key Name Description
【■】*
  • Key-locking (Excluding Key【ZERO】&【TARE】).
  • Key-unlocking.

【►】

(【ZERO】)

(【→0←】)

  • Zero Calibration with Power-down Protection and Clearing Tare Weight.
  • The controller will switch to Gross Weight display.

【▲】

(【TARE】)

(【→T←】)

  • Manual Tare with Power-down Protection.
  • The controller will switch to Net Weight display.

8

(【G/N】)

Gross Weight / Net Weight / Net Weight Peak Value display switch.

8】*

(【CLS】)

  • [-CLS] : Clear Screen [Clear the display value of Peak Value].
