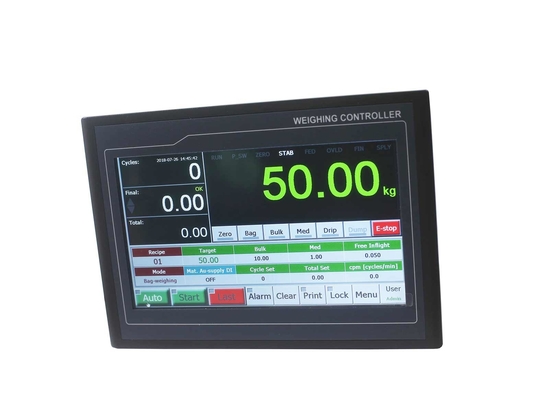

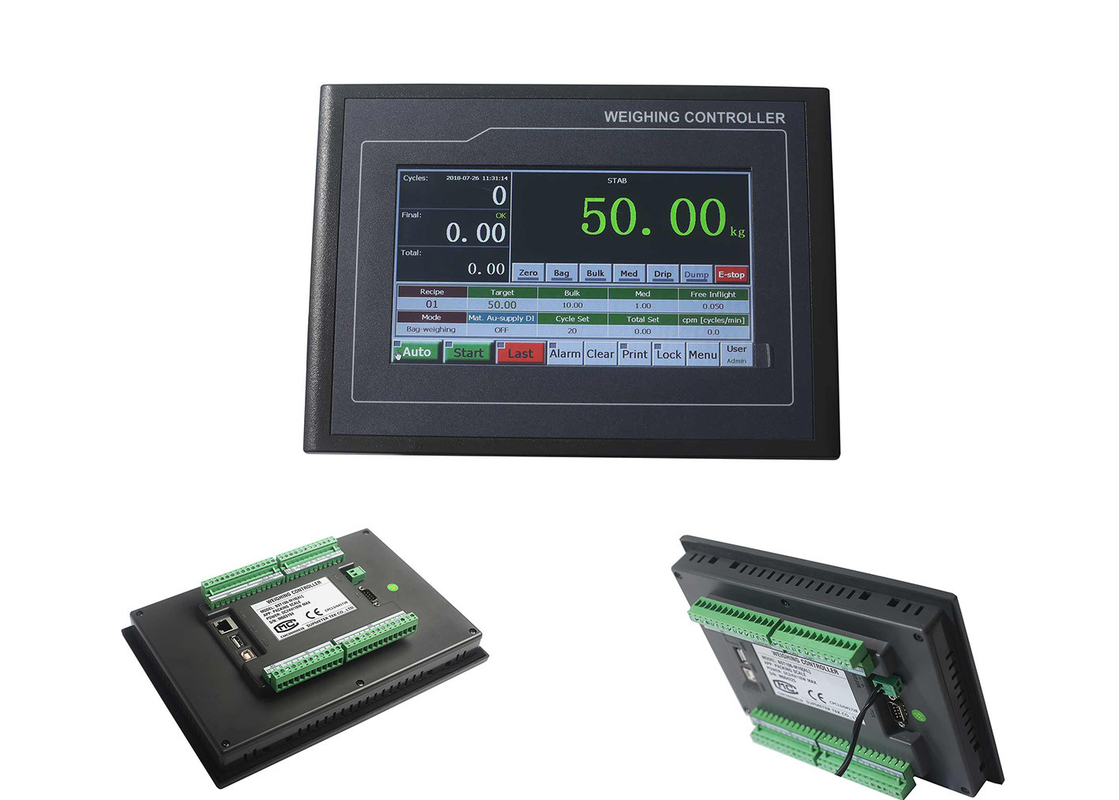

Packing Bagging Controller Weighing Indicator For Weighing And Packing Granule

Packing Bagging Controller Weighing Indicator For Weighing And Packing Granule

Product Details:

Place of Origin: China
Brand Name: SUPMETER
Certification: CE
Model Number: BST106-M10[AL]

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3~30 working days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 200pcs per month
Get Best Price Contact Now

Detail Information

Customization: Available Application: Single Scale Mode
Verification Accuracy: 0.02% Static Weighing Accuracy: 0.2%~0.5%
Packing Accuracy: 0.2%~0.5% IP Grade: IP65
High Light:

packing controller

,

weighing controller

Product Description

Main Application:

  • Single-weighing-hopper Ration Packing Scale.
  • Single-weighing-bag Ration Packing Scale.
  • Loss-in-weight Ration Packing Scale.

Main Features

  • Suitable for Ration Packing Scale with optional modes 1-Bucket Scale, 1-Bag Scale and Loss-in-weight Scale.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.

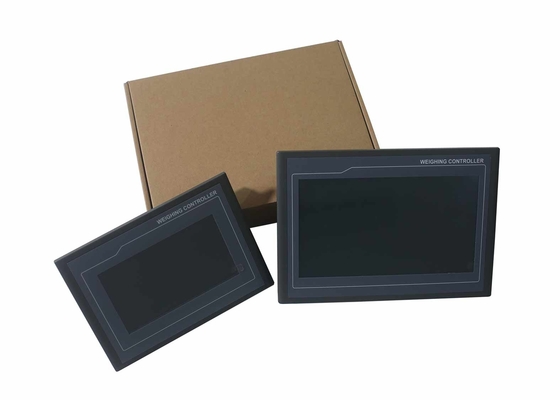

  • 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
  • Loadcell Interface
  • Max. Connection Quantity: 16 Loadcells (350Ω).
  • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 800Hz.
  • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
  • I/O Interface
  • 9 Definable normally open switch inputs [DI] and 12/18 definable normally open transistor switch outputs [DO].
  • Optional ‘Bulk/Medium/Dribble Feed’ DOs for feeding control. Optional Continuous and Jogging Dribble Feed Methods.
  • 2 Optional&definable analog signal AO[0~10V] for weight signal output or ‘Bulk/Medium/Dribble Feed’ control.
  • Digital Communication Interface
  • COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
  • COM[RS232] for connecting RS232 Serial Printer.
  • USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
  • LAN: Optional Ethernet port.

Technical Specification:

Power Supply DC24V±20%, Max. 10W
Display 16-bit Color screen with 800×480[7”] or 1024×600[10.2”] pixel and LED backlight
Weight Display Range -99,999~+999,999
Scale Capacity Setting Range 1~999,999
Scale Division Optional 1, 2, 5, 10, 20, 50
Display Resolution 1/100,000
Weight Unit Optional g, kg, t, lb[pound], oz[ounce], UserSet
Loadcell Interface Connection Quantity 16 Loadcells (350Ω)
Excitation Voltage/Max. Current DC5V, 250mA
Signal Input Range 0~12.5mV
Output Sensitivity of Loadcell 1.0~2.5mV/V
Sampling Frequency 800Hz
Non-linearity 0.005%FS
Switch&Analog Signal Interface DI 9 Normally Open Switch Inputs
DO 18 Normally Open Transistor Switch Outputs [DO]: DC24V, 500mA
AO 2 AO:0~10V/Max.50mA
Digital Communication Interface COM1 RS232
COM2 RS485
USB1 For connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.



Installation Mode

Packing Bagging Controller Weighing Indicator For Weighing And Packing Granule 0



System Diagram for APP1 1-Bucket Scale

Packing Bagging Controller Weighing Indicator For Weighing And Packing Granule 1
