CE 3W Digital Weight Indicator Peak Value Detection Display

Weight/Force DDisplay Peak Value Detection Display Holding Auto Weight-checking Setpoint DO Output AO Digit Transmission

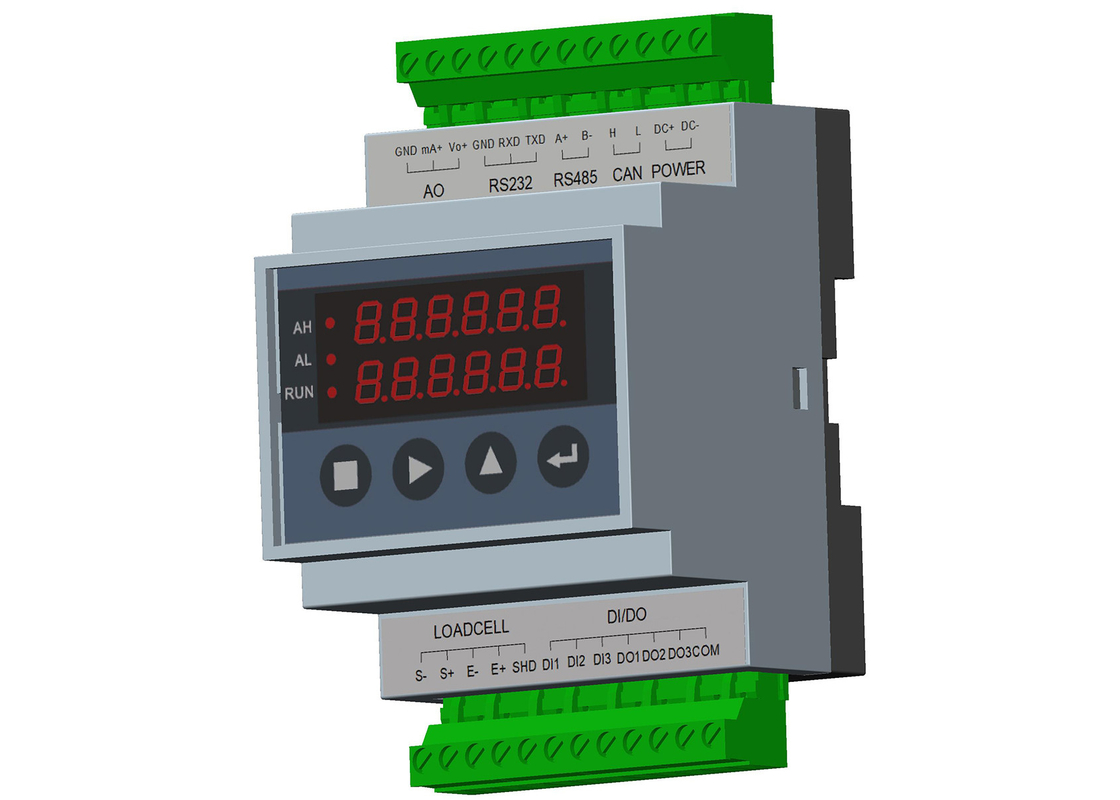

BST106-M60S[L] Guide Rail Type

Weighing / Force Measuring Control Module

Weight/Force Display, Peak Value Detection / Display Holding,

Auto Weight-checking, Setpoint DO Output, AO/Digit Transmission



Main Features:

1. Applications: Weight/Force Display, Peak Value Detection&Display Holding, Auto Weight-checking, Setpoint DO Output and AO/Digit Transmission.

2. Max. Connection Quantity: 8 Loadcells (350Ω).

3. Zero Upon Power Up, Zero Auto-tracking, Manual/Auto Zero and Zero Calibration available.

4. Load Calibration, Data Calibration, Segmenting Span Correction and Segmenting Weight Calculation available.

5. Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.

6. 3 Definable normally open switch inputs [DI] and 3 definable normally open transistor switch outputs [DO].

7. 1 Optional&definable current signal output [AO: 0~20mA].

8. 1 Optional&definable voltage signal output [VO: 0~10V].

9. RS232, optional RS485 and CANBUS communication ports for connecting Host IPC/PLC and LED Remote Display.



CE 3W Digital Weight Indicator Peak Value Detection Display 0

CE 3W Digital Weight Indicator Peak Value Detection Display 1

Display

1. 6+6 Red LED digital tubes for English character and digit display.

2. Weight Display Range: -9,999~+99,999.

3. Scale Capacity: Setting Range 1~99,999.

4. Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500.

5. Display Resolution: 1/50,000.

6. Decimal Point Position: Optional 0, 0.0, 0.00, 0.000, 0.0000.

7. Display Refreshing Time: Setting Range 0.01~1.00s.



Keypad

1. 4-key English keypad for Menu&Shortcut mode operation.



Weighing Signal Interface

1. Excitation Voltage/Max. Current: DC5V/120mA [8-350Ω loadcells].

2. Signal Input Range: 0~12.5mV.

3. Output Sensitivity of Loadcell: 1.0~2.5mV/V.

4. 24-bit ∑-△ADC with internal resolution 1/1,000,000.

5. Optional Sampling Frequency: 3200Hz, 1600Hz, 800Hz, 400Hz, 200Hz, 5Hz.

6. Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.

7. Zero Drift: ±0.1μV/℃ RTI (Relative to Input).

8. Gain Drift: ±5ppm/℃.

9. Non-linearity: 0.005%FS.



Keypad Operation

Key Name Function Description
【■】 【MENU】 Enter Main Menu / Exit.
【LOCK】* Key-locking / Key-unlocking.
【►】 【►】

Cursor shifts right.

Display the previous interface or option.

【ZERO】* Manual Zero without Power-down Protection.
【▲】 【▲】

Display the next interface or option.

Digit input: +1 ( 0~9 loop).

【SET】* Setpoint Parameters Setting.
8 【ENT】 Enter / Save / Clear Alarm.
【CLS】* Clear Screen [Clear the display value of Peak Hold Value and Weight-checking Value].



User Interface Diagram

CE 3W Digital Weight Indicator Peak Value Detection Display 2



Installation

CE 3W Digital Weight Indicator Peak Value Detection Display 3



Terminal

CE 3W Digital Weight Indicator Peak Value Detection Display 4


No. Pin Description
LOADCELL Loadcell Port
1 S- Weighing Signal Input +.
2 S+ Weighing Signal Input -.
3 E- Excitation Voltage -.
4 E+ Excitation Voltage + [DC5V].
5 SHD Shield Ground.
DI/DO Switch Input/Output Port [Definable]
6 DI1 Switch Signal Input 1.
7 DI2 Switch Signal Input 2.
8 DI3 Switch Signal Input 3.
9 DO1 Normally Open Contact Output 1.
10 DO2 Normally Open Contact Output 2.
11 DO3 Normally Open Contact Output 3.
12 COM DI/DO Common Terminal.
Contact Capacity of Transistor Switch: DC24V, 250mA.
