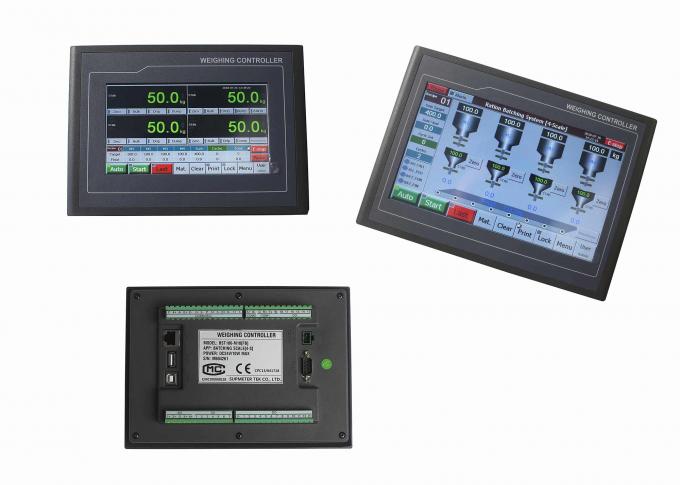

4 Scale Filling Weighing Controller 16 Loadcells Connectable CE Passed

China 4 Scale Filling Weighing Controller 16 Loadcells Connectable CE Passed supplier

Large Image :  4 Scale Filling Weighing Controller 16 Loadcells Connectable CE Passed

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-M10(FU)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3-10 working day
Payment Terms: T/T, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Power Supply: DC24V AO: 2
COM/COM1: RS232 COM2: RS485



TFT-Touch Ration Filling Controller With 4-Scale For Liquit Fillingweigher

. Technical Specifications

  • Executing Standards
  • PRC GB/T 7724-2008.
  • PRC JJG 649-2016.
  • OMIL R76-1: 2006International Recommendation.
  • Accuracy Grade:Ⅲ.
  • Number of Verification Scale Interval: n=3000.
  • Structure&Configuration
  • 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
  • Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
  • Display&Operation
  • 16-bit Color screen with 800×480[7”] or 1024×600[10.2”] pixel and LED backlight.
  • Graphic user interface and touch operation.
  • Weight Display Range: -99,999~+999,999.
  • Scale Capacity: Setting Range 1~999,999.
  • Scale Division: Optional 1, 2, 5, 10, 20, 50.
  • Display Resolution: 1/100,000.
  • Weight Unit: Optional g, kg, t, lb[pound], oz[ounce], UserSet.
  • Decimal Point Position: Optional 0, 0.0, 0.00, 0.000.
  • Loadcell Interface
  • Max. Connection Quantity: 16 Loadcells (350Ω).
  • Excitation Voltage/Max. Current: DC5V, 250mA.
  • Signal Input Range: 0~12.5mV.
  • Output Sensitivity of Loadcell: 1.0~2.5mV/V.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • Sampling Frequency: 800Hz.
  • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  • Gain Drift: ±5ppm/℃.
  • Non-linearity: 0.005%FS.
  • Switch&Analog Signal Interface
  • 7 Definable Normally Open Switch Inputs [DI].
  • 12/18 Definable Normally Open Transistor Switch Outputs [DO]: DC24V, 500mA.
  • 4 Optional&definable Analog Signal Output [AO]: 0~10V/Max.50mA, Non-linearity: 0.05%FS.



  • Digital Communication Interface
  • COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
  • COM[RS232] for connecting RS232 Serial Printer with Baud Rate ‘9600bps’, Parity Check ‘None’, 8 Data Bits and 1 Stop Bit.
  • USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
  • LAN: Optional Ethernet port.
  • Report Print
  • The Batch Records can be printed automatically.
  • Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.
  • Operating Specification
  • Operating Voltage: DC24V±20%.
  • Max. Power Consumption: 10W.
  • 7”[B] Touch Screen
  • Outline Size: 226.5×163×56mm [W×H×D].
  • Window Size: 153.6×86.64mm [W×H].
  • Box Body Size: 213×150mm [W×H].
  • Panel Cut-out Size: 215×152mm [W×H].
  • Weight: Approx. 0.72kg.
  • 7”[S] Touch Screen
  • Outline Size: 202.5×149×56mm [W×H×D].
  • Window Size: 153.6×86.64mm [W×H].
  • Box Body Size: 190×136mm [W×H].
  • Panel Cut-out Size: 192×138mm [W×H].
  • Weight: Approx. 0.67kg.
  • 10.2” Touch Screen
  • Outline Size: 274×193×56mm [W×H×D].
  • Window Size: 220.8×132.9mm [W×H].
  • Box Body Size: 259×178 [W×H].
  • Panel Cut-out Size: 261×180mm [W×H].
  • Weight: Approx. 1.2kg.
  • Protection Level of Front Panel: IP65.
  • Operating Temperature: -25℃ to +45℃.
  • Storage Temperature: -30℃ to +60℃.
  • Relative Humidity: Max. 85%RH.

Button Operation

Name Operation State Indicator Authorization
【Auto】 Auto / Manual [Emergency Stop] switch.

Green: Auto state.

Grey: Manual state.

All Users
【Start】 Start.

Green: Running state.

Grey: Stop state.

【Stop】 Stop [Valid at Auto-running state].
【Re-run】 Clear Alarm & Recover Running.
【E-stop】 Emergency Stop.
【Alarm】

Alarm Query / Clear Alarm.

‘Auto/Pause’ state: Recover Running after alarms cleared.

Red: Alarm state.
【Print】 Report Print. Green: Auto Print is allowed.
【Lock】

Screen-locking: Locking/unlocking the operating buttons of main user interface.

Auto Screen-locking: Refer to parameter [901].

Flashing Red: Locked.

Grey: Unlocked.

【Menu】 Enter Main Menu.
【User】 User Login. Display: Operator / Engineer / Admin.
【Lower】 Manual Lower Filling Gun. Flashing Green: Filling Gun is moving down.
【Lift】 Manual Lift Filling Gun. Flashing Red: Filling Gun is moving up.
【Bulk】 Manual Start/Stop Bulk Fill. Green: Working state.
【Med】 Manual Start/Stop Medium Fill.
【Drip】 Manual Start/Stop Dribble Fill.
【Zero】 Manual Zero [No Power-down Protection]. Flashing Red.
【Tare】 Manual Tare [No Power-down Protection]. Flashing Red.
【Clear】 Clear Screen: Clear the display values of Filling Weight, Totalized Weight and Batch Count.

Engineer

Administrator

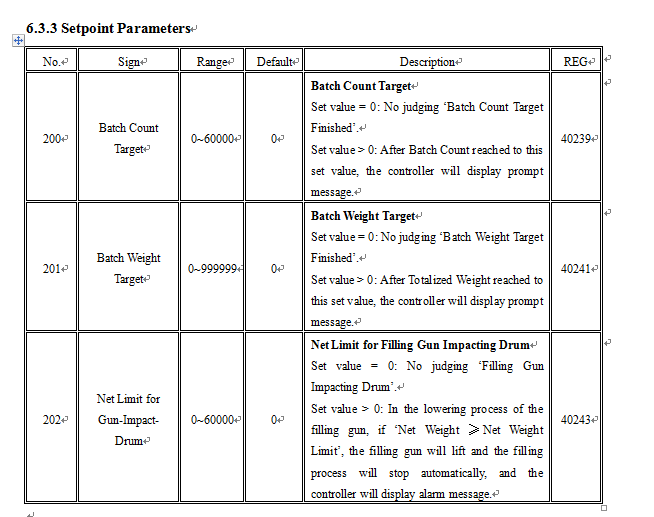

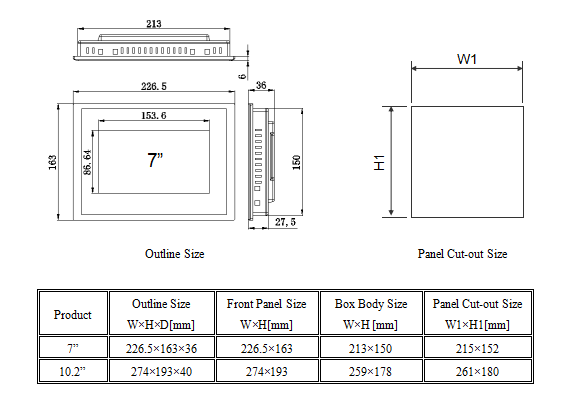

Outline Size
