High Accurancy Filling Weighing Load Cell Controller 50 Recipes For Filling Control

China High Accurancy Filling Weighing Load Cell Controller 50 Recipes For Filling Control supplier

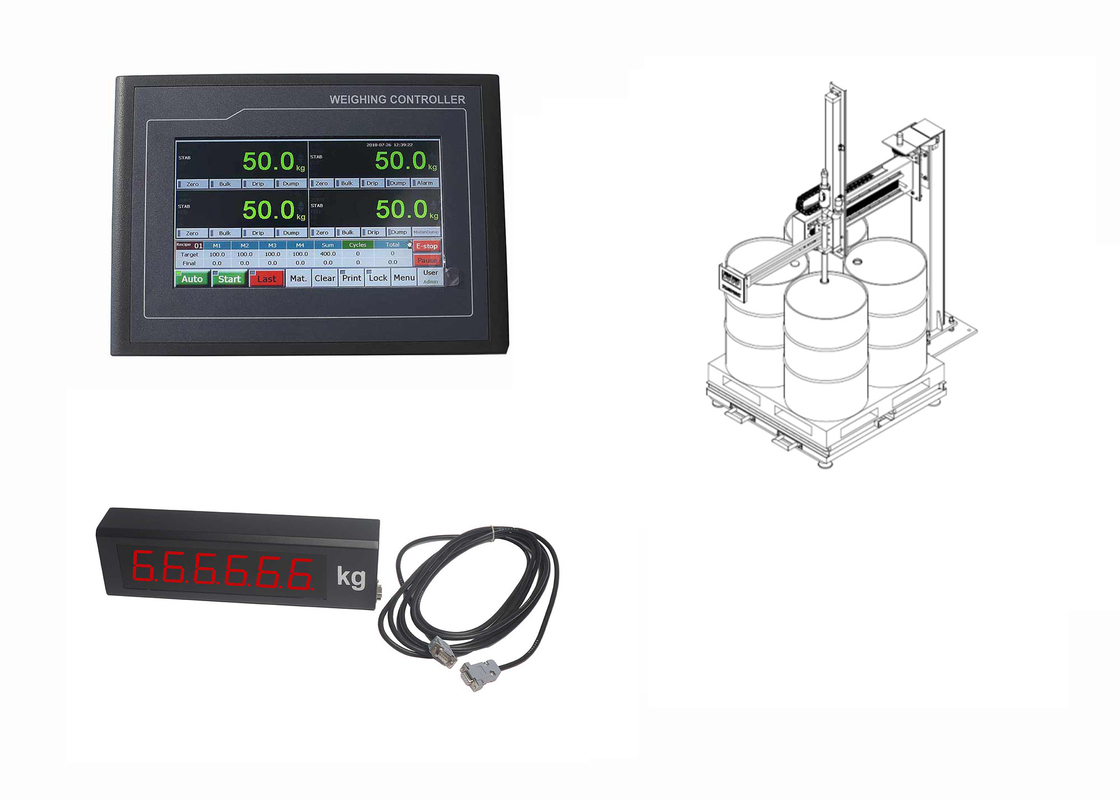

Large Image :  High Accurancy Filling Weighing Load Cell Controller 50 Recipes For Filling Control

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-M10(FU)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3-10 working day
Payment Terms: T/T, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Power Supply: DC24V DI: 9
DO: 18 AO: 2
COM/COM1: RS232 COM2: RS485



TFT-Touch Ration Filling Controller With 4-Scale For Liquit Fillingweigher

.

  • Display&Operation
  • 16-bit Color screen with 800×480[7”] or 1024×600[10.2”] pixel and LED backlight.
  • Graphic user interface and touch operation.
  • Weight Display Range: -99,999~+999,999.
  • Scale Capacity: Setting Range 1~999,999.
  • Scale Division: Optional 1, 2, 5, 10, 20, 50.
  • Display Resolution: 1/100,000.
  • Weight Unit: Optional g, kg, t, lb[pound], oz[ounce], UserSet.
  • Decimal Point Position: Optional 0, 0.0, 0.00, 0.000.
  • Loadcell Interface
  • Max. Connection Quantity: 16 Loadcells (350Ω).
  • Excitation Voltage/Max. Current: DC5V, 250mA.
  • Signal Input Range: 0~12.5mV.
  • Output Sensitivity of Loadcell: 1.0~2.5mV/V.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • Sampling Frequency: 800Hz.
  • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  • Gain Drift: ±5ppm/℃.
  • Non-linearity: 0.005%FS.



Technical Specifications

  • Executing Standards
  • PRC GB/T 7724-2008.
  • PRC JJG 649-2016.
  • OMIL R76-1: 2006International Recommendation.
  • Accuracy Grade:Ⅲ.
  • Number of Verification Scale Interval: n=3000.
  • Structure&Configuration
  • 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
  • Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
  • Display&Operation
  • 16-bit Color screen with 800×480[7”] or 1024×600[10.2”] pixel and LED backlight.
  • Graphic user interface and touch operation.
  • Weight Display Range: -99,999~+999,999.
  • Scale Capacity: Setting Range 1~999,999.
  • Scale Division: Optional 1, 2, 5, 10, 20, 50.
  • Display Resolution: 1/100,000.
  • Weight Unit: Optional g, kg, t, lb[pound], oz[ounce], UserSet.
  • Decimal Point Position: Optional 0, 0.0, 0.00, 0.000.
  • Loadcell Interface
  • Max. Connection Quantity: 16 Loadcells (350Ω).
  • Excitation Voltage/Max. Current: DC5V, 250mA.
  • Signal Input Range: 0~12.5mV.
  • Output Sensitivity of Loadcell: 1.0~2.5mV/V.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • Sampling Frequency: 800Hz.
  • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  • Gain Drift: ±5ppm/℃.
  • Non-linearity: 0.005%FS.
  • Switch&Analog Signal Interface
  • 7 Definable Normally Open Switch Inputs [DI].
  • 12/18 Definable Normally Open Transistor Switch Outputs [DO]: DC24V, 500mA.
  • 4 Optional&definable Analog Signal Output [AO]: 0~10V/Max.50mA, Non-linearity: 0.05%FS.



  • Digital Communication Interface
  • COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
  • COM[RS232] for connecting RS232 Serial Printer with Baud Rate ‘9600bps’, Parity Check ‘None’, 8 Data Bits and 1 Stop Bit.
  • USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
  • LAN: Optional Ethernet port.
  • Report Print
  • The Batch Records can be printed automatically.
  • Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.
  • Operating Specification
  • Operating Voltage: DC24V±20%.
  • Max. Power Consumption: 10W.
  • 7”[B] Touch Screen
  • Outline Size: 226.5×163×56mm [W×H×D].
  • Window Size: 153.6×86.64mm [W×H].
  • Box Body Size: 213×150mm [W×H].
  • Panel Cut-out Size: 215×152mm [W×H].
  • Weight: Approx. 0.72kg.
  • 7”[S] Touch Screen
  • Outline Size: 202.5×149×56mm [W×H×D].
  • Window Size: 153.6×86.64mm [W×H].
  • Box Body Size: 190×136mm [W×H].
  • Panel Cut-out Size: 192×138mm [W×H].
  • Weight: Approx. 0.67kg.
  • 10.2” Touch Screen
  • Outline Size: 274×193×56mm [W×H×D].
  • Window Size: 220.8×132.9mm [W×H].
  • Box Body Size: 259×178 [W×H].
  • Panel Cut-out Size: 261×180mm [W×H].
  • Weight: Approx. 1.2kg.

Button Operation

Name Operation State Indicator Authorization
【Auto】 Auto / Manual [Emergency Stop] switch.

Green: Auto state.

Grey: Manual state.

All Users
【Start】 Start.

Green: Running state.

Grey: Stop state.

【Stop】 Stop [Valid at Auto-running state].
【Re-run】 Clear Alarm & Recover Running.
【E-stop】 Emergency Stop.
【Alarm】

Alarm Query / Clear Alarm.

‘Auto/Pause’ state: Recover Running after alarms cleared.

Red: Alarm state.
【Print】 Report Print. Green: Auto Print is allowed.
【Lock】

Screen-locking: Locking/unlocking the operating buttons of main user interface.

Auto Screen-locking: Refer to parameter [901].

Flashing Red: Locked.

Grey: Unlocked.

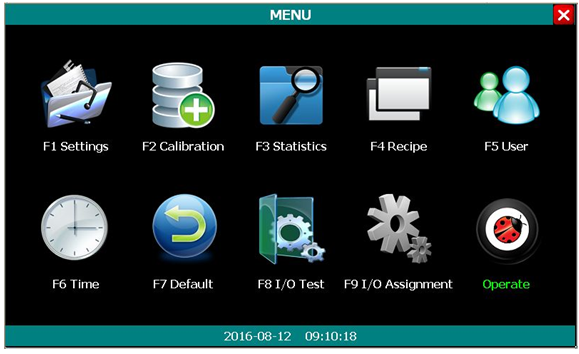

【Menu】 Enter Main Menu.
【User】 User Login. Display: Operator / Engineer / Admin.
【Lower】 Manual Lower Filling Gun. Flashing Green: Filling Gun is moving down.
【Lift】 Manual Lift Filling Gun. Flashing Red: Filling Gun is moving up.
【Bulk】 Manual Start/Stop Bulk Fill. Green: Working state.
【Med】 Manual Start/Stop Medium Fill.
【Drip】 Manual Start/Stop Dribble Fill.
【Zero】 Manual Zero [No Power-down Protection]. Flashing Red.
【Tare】 Manual Tare [No Power-down Protection]. Flashing Red.
【Clear】 Clear Screen: Clear the display values of Filling Weight, Totalized Weight and Batch Count.

Engineer

Administrator

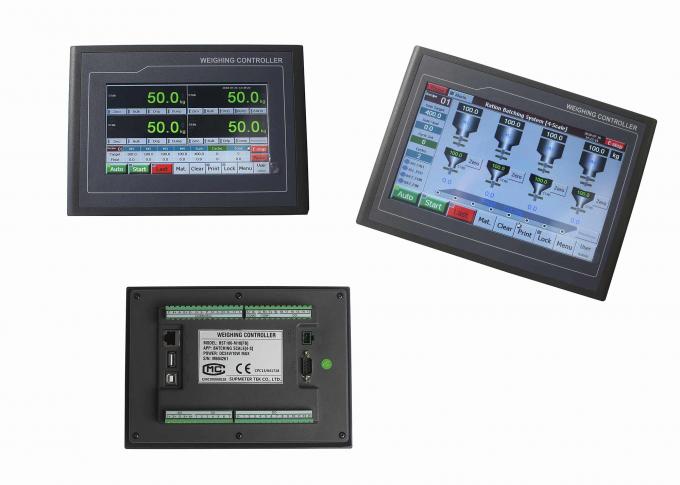

High Accurancy Filling Weighing Load Cell Controller 50 Recipes For Filling Control




System Diagram

High Accurancy Filling Weighing Load Cell Controller 50 Recipes For Filling Control
