Durable Digital Weight Indicator For Liquid / Gas / Powder Ration Filling Weigher

China Durable Digital Weight Indicator For Liquid / Gas / Powder Ration Filling Weigher supplier
Durable Digital Weight Indicator For Liquid / Gas / Powder Ration Filling Weigher supplier Durable Digital Weight Indicator For Liquid / Gas / Powder Ration Filling Weigher supplier Durable Digital Weight Indicator For Liquid / Gas / Powder Ration Filling Weigher supplier Durable Digital Weight Indicator For Liquid / Gas / Powder Ration Filling Weigher supplier

Large Image :  Durable Digital Weight Indicator For Liquid / Gas / Powder Ration Filling Weigher

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-M10(FL)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3-10 working day
Payment Terms: T/T, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Power Supply: DC24V DI: 9
DO: 18 AO: 2
COM/COM1: RS232 COM2: RS485

TFT-Touch Filling Controller/Digital Weight Indicator For Liquid/Gas/Powder Ration Fillingweigher


     Main Features:

  • Suitable for Liquid/Gas/Powder Ration Fillingweigher.
  • Optional application modes: Fill on Drum’s Top / Fill on Drum’s Bottom / Step-fill from Bottom.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
  • 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
  • Loadcell Interface
  • Max. Connection Quantity: 16 Loadcells (350Ω).
  • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 800Hz.
  • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
  • I/O Interface
  • 9 Definable normally open switch inputs [DI] and 18 definable normally open transistor switch outputs [DO].
  • Optional ‘High-speed/Medium-speed/Low-speed Fill’ DOs for Filling control. Optional Low-speed Filling Modes: Continuous Filling Mode and Inching Filling Mode.
  • 2 Definable analog signal AO[0~10V] for weight signal output or ‘High-speed/Medium-speed /Low-speed Fill’ control.
  • Digital Communication Interface
  • COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
  • COM[RS232] for connecting RS232 Serial Printer.
  • USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
  • Software Function
  • Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.
  • Initial Zero Adjustment after Power-on, Auto Zero Tracking, Zero Fine Adjustment and Zero Calibration functions available.
  • Load Calibration function available.
  • 10 Recipes for filling control.
  • Optional ‘Fall Value Auto Correction’ function.
  • Optional ‘Auto Pause for Deviation Alarm’ and ‘Auto Re-fill’ functions.
  • ‘Target Batch [Count/Weight] Finished’ alarm function available.
  • The Batch Records can be printed automatically.
  • Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.
  • With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

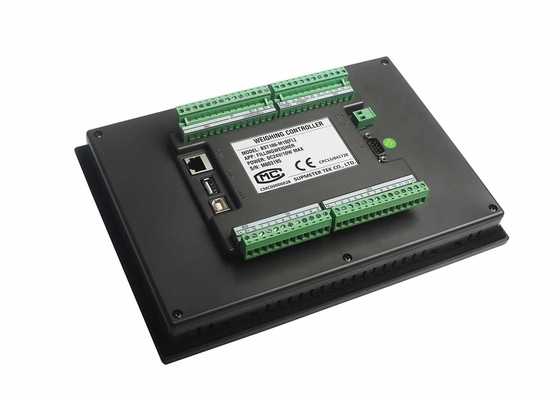

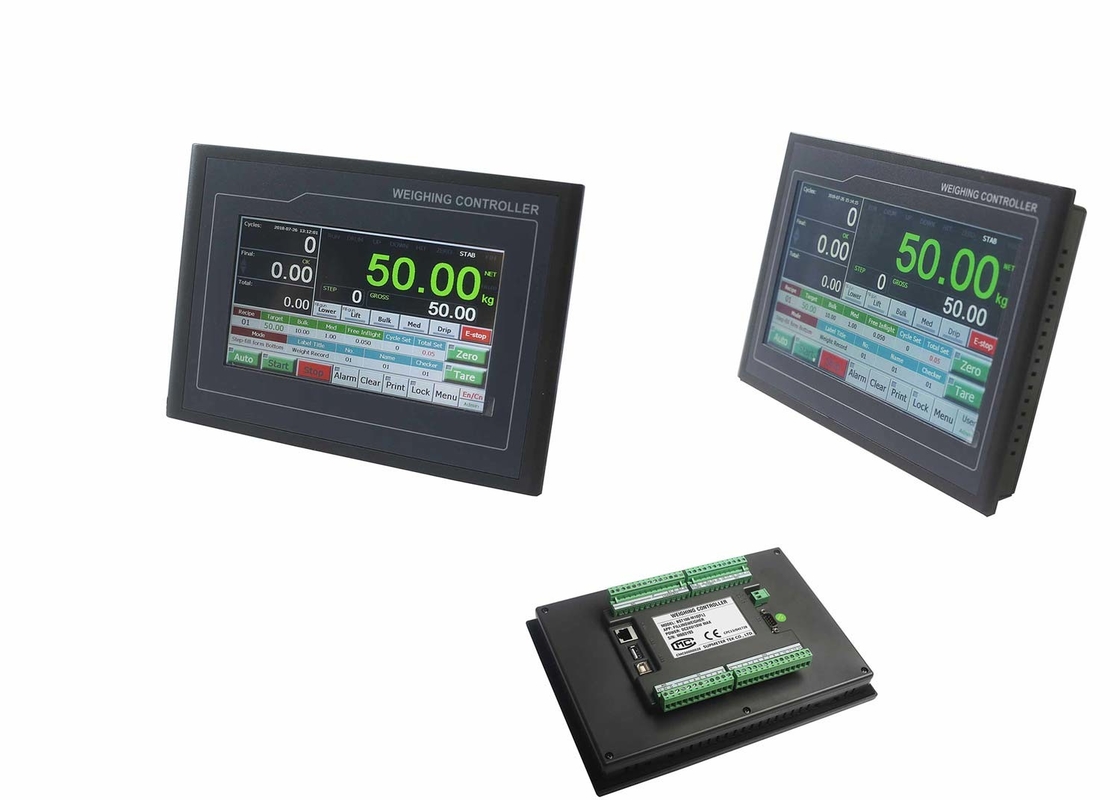

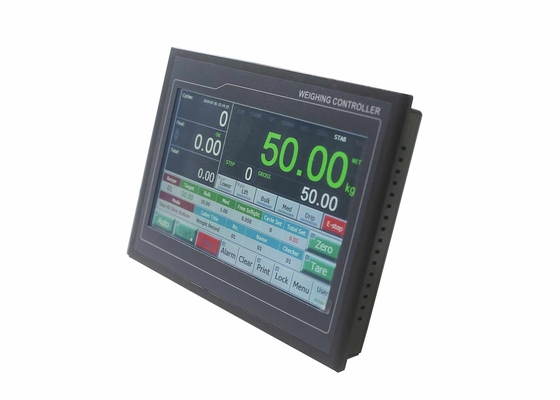

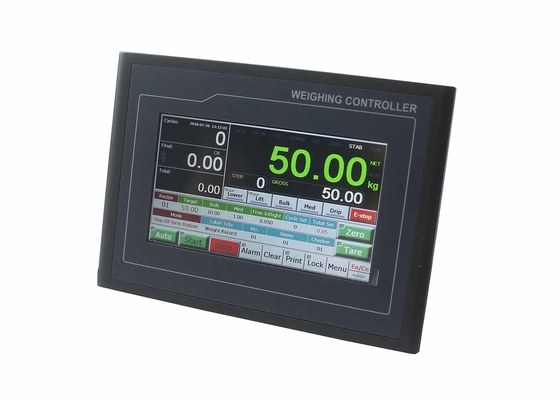

     Pictures

Durable Digital Weight Indicator For Liquid / Gas / Powder Ration Filling Weigher

Durable Digital Weight Indicator For Liquid / Gas / Powder Ration Filling Weigher

Durable Digital Weight Indicator For Liquid / Gas / Powder Ration Filling Weigher

Durable Digital Weight Indicator For Liquid / Gas / Powder Ration Filling Weigher

Data Display&Quick Setting

Name Description Authorization
[NET] Net Weight [Weight Unit].
[FIL] Filling Process Ended.
[GROSS] Gross Weight.
[HIGH] Gross Weight Upper Limit Alarm.
[OVLD] Overload Alarm.
[PCS] Batch Count.
[FINAL] Final Filling Weight.
[▲]/[HI] Positive Deviation Alarm and ‘Deviation & Limit Set’. Administrator
[▼]/[LO] Negative Deviation Alarm and ‘Deviation & Limit Set’.
[TOT] Totalized Weight.
[Date&Time] Date&Time.
[RUN] Auto Running state.
[PAUSE] Pause state.
[DRUM] DI switch ‘Empty Drum Ready’ turned on.
[UP] Filling Gun Lift in Place.
[DOWN] Filling Gun Lowered in Place.
[HIT] Filling Gun Impacting Drum Alarm.
[ZERO] Gross Weight ≤ Non-load Zero Range.
[STAB] Weight is stable.
[FIN] Target Batch [Count/Weight] Finished.
[Highest Filling Position ] DI switch ‘Highest Step-filling Position Limit’ turned on.
[RECIPE] ‘Working Recipe No.’ Selection. All Users
Recipe Parameter Setting. Engineer
[TARGET] ‘Target Value’ Setting. All Users
[HIGH] ‘SP1 Lead Value for High-speed Filling’ Setting. Engineer
‘DO Filling's Mode’ Parameter Setting. Administrator
[MED] ‘SP2 Lead Value for Medium-speed Filling’ Setting. Engineer
‘DO Filling's Mode’ Parameter Setting. Administrator
[FALL] ‘SP3 Fall Value for Low-speed Filling’ Setting. Engineer

‘Fall Value Auto Correction’ Parameter Setting.

  • ‘AUTO FALL’: Fall Value Auto Correction function is open.
  • ‘FREE FALL’: Fall Value Auto Correction function is closed.
Administrator
[MODE] APP1 Fill on Top / APP2 Fill on Bottom / APP3 Step-fill from Bottom. Refer to Parameter [300] ‘Application Mode’.
[BAT. CNT] ‘Target Batch Count’ Setting. All Users
[BAT. WT] ‘Target Batch Weight’ Setting.
[Label Print Information] Label title, No., Name and Checker Setting.


Outline Size
Durable Digital Weight Indicator For Liquid / Gas / Powder Ration Filling Weigher
Terminal Diagram
Durable Digital Weight Indicator For Liquid / Gas / Powder Ration Filling Weigher
