Detailed Product Description
Power Supply: DC24V DI: 9
DO: 18 COM&COM1: RS232
COM2: RS485

1-Scale TFT-Touch Digital Weight Indicator For Single-weighing-hopper Ration Packing Scale



      Main Features:

  • Suitable for Ration Packing Scale with optional Hopper-weighing Mode, Bag-weighing Mode and Loss-in-weight Mode.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
  • 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
  • Loadcell Interface
  • Max. Connection Quantity: 16 Loadcells (350Ω).
  • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 800Hz.
  • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
  • I/O Interface
  • 9 Definable normally open switch inputs [DI] and 18 definable normally open transistor switch outputs [DO].
  • Optional ‘High/Medium/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.
  • 2 Definable analog signal AOs[0~10V] for weight signal output or ‘High/Medium/Low Speed Feed’ control.
  • Digital Communication Interface
  • COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
  • COM[RS232] for connecting RS232 Serial Printer.
  • USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
  • Software Function
  • Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.
  • Initial Zero Adjustment after Power-on, Auto Zero Tracking, Zero Fine Adjustment and Zero Calibration functions available.
  • Load Calibration and Loss Calibration functions available.
  • 10 Recipes for packing control.
  • Optional ‘Fall Value Auto Correction’ function.
  • Optional ‘Auto Pause for Deviation Alarm’ and ‘Auto Re-feed’ functions.
  • Optional ‘Target Batch Control’ function [With Target Batch Count or Target Batch Weight finished, the packing process will stop automatically].
  • The Batch Records can be printed automatically.
  • Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.

With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.



      Pictures

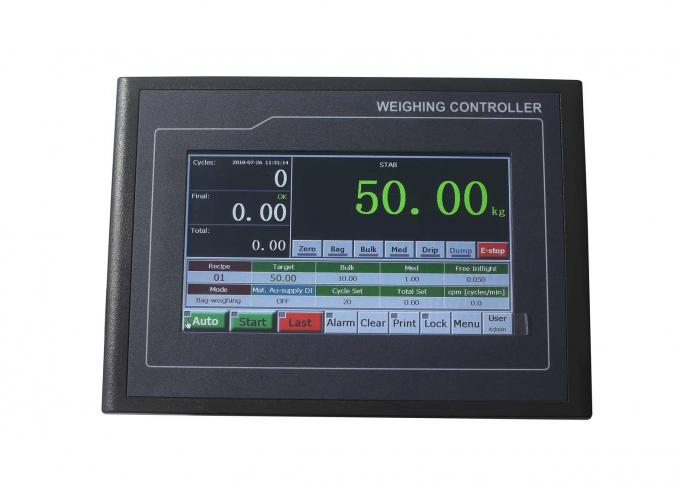

1 - Scale Digital Weight Indicator Manual Screen Locking / Screen Unlocking

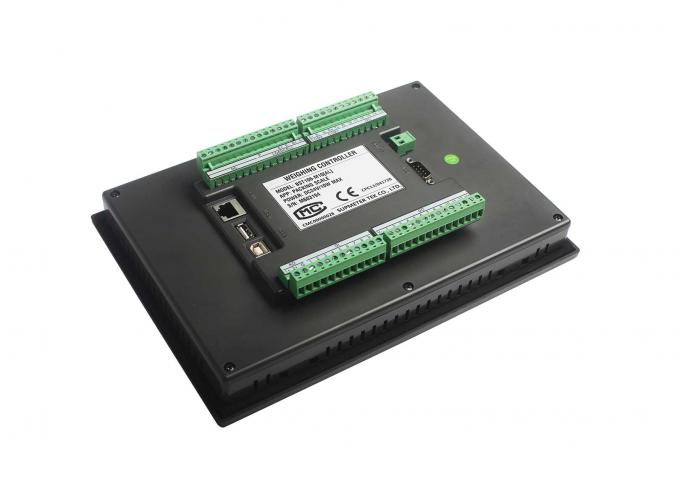

1 - Scale Digital Weight Indicator Manual Screen Locking / Screen Unlocking

1 - Scale Digital Weight Indicator Manual Screen Locking / Screen Unlocking

         Button Operation

Name Operation State Indicator Authorization
【Auto】 Auto / Manual [Emergency Stop] switch.

Green: Auto state.

Grey: Manual state.

All Users
【Start】 Start.

Green: Running state.

Grey: Stop state.

【Re-run】 Clear Alarm & Recover Running.
【Last】

Last Batch [Normal Stop].

Stop after the present batch finished.

Flashing Red.
【E-Stop】 Emergency Stop.
【Alarm】

Alarm Query / Clear Alarm.

‘Auto/Pause’ state: Recover Running after clearing alarm.

Red: Alarm state.
【Print】

Report Print:

  • [ Auto Print]: Print Batch Records.
  • [Total]: Print Totalizing Report.
  • [Recipe]: Print Working Recipe.

【Lock】

Screen-locking: Locking/unlocking the operating buttons of main display interface.

Auto Screen-locking: Refer to parameter [901].

Flashing Red: Locked.

Grey: Unlocked.

【Menu】 Enter Main Menu.
【User】 User Login. Display: Operator / Engineer / Admin.
【Zero】 Zero Fine Adjustment [No Power-down Protection]. Flashing green.
【Bag】 Bag-clamp/release Request.

Green: Bag-clamping state.

Grey: Bag-releasing state.

【High】 Manual Start/Stop High-speed Feeding. Green: Working state.
【Med】 Manual Start/Stop Medium-Speed Feeding.
【Low】 Manual Start/Stop Low-speed Feeding.
【Dump】 Manual Start/Stop Dumping.
【Clear】 Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Packing Speed.

Engineer

Administrator

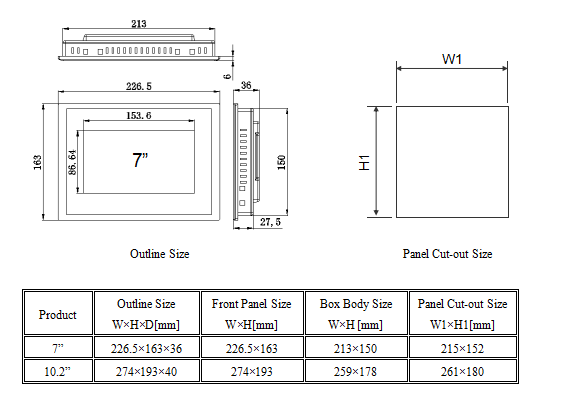

         Outline Size

1 - Scale Digital Weight Indicator Manual Screen Locking / Screen Unlocking

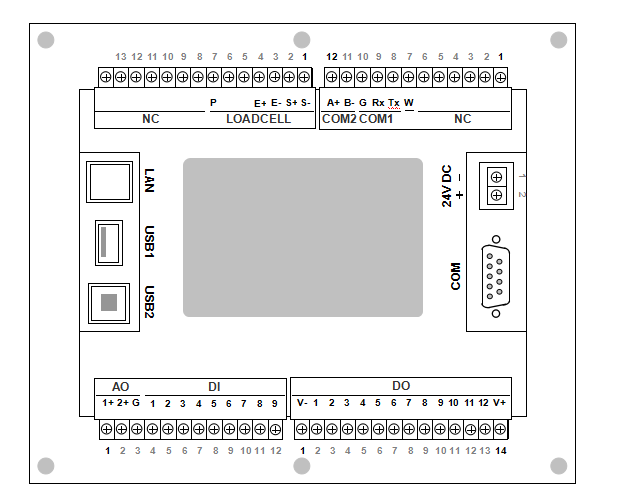

          Terminal Diagram

1 - Scale Digital Weight Indicator Manual Screen Locking / Screen Unlocking
