High Anti Jamming Capability Weighing Scale Indicator , Smart Load Batch Controller

Product Description

      LED Display Ration Batching Controller With RS232 Communication

  BST106-B68[U] Weighing Controller

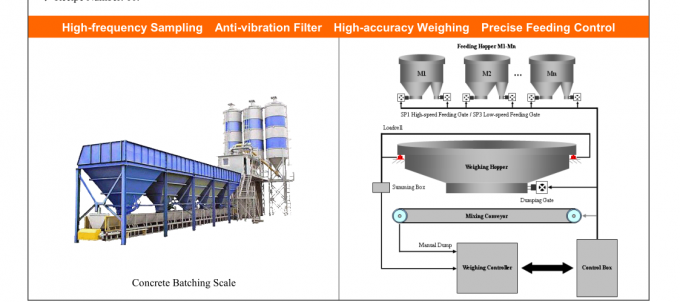

     For: Ration Batching Scale with 4-Material&2-Speed Feeding [Single-Scale Mode]

       Main Features:

• Suitable for Ration Batching Scale with 4-Material&2-Speed Feeding [Single-Scale Mode].
• EMC design with high anti-jamming capability, suitable for industrial environment.
•  32-bit ARM CPU with 48MHz clock & higher arithmetic speed.

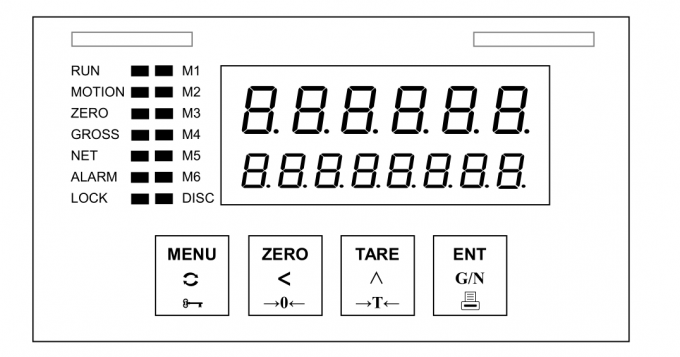

•  6+8 Red LED digital tubes for English character and digit display.
•  4-key English keypad.
•
• Menu&Shortcut mode operation with key tone.
• 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal
• resolution and sampling frequency 400Hz.
•  Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy
• when there is strong vibration on the load receptor, and the rapid response capability when the
• weight signal changes.
•  Max. Connection Quantity: 4 Loadcells (350Ω).
•  Auto Zero Initial Calibration after Power-on, Auto Zero Tracking, Zero Fine Adjustment, Zero
• Calibration and Load Calibration functions available.

• Optional Data Calibration function.
• Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing
• functions available.
• 6 Normally open switch inputs [DI] and 8 normally open transistor switch outputs [DO].
•  Optional ‘High/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes:
• Continuous Feeding Mode and Inching Feeding Mode.
• 1 Optional and definable analog signal AO[4~20mA] for weight signal output or ‘High/Low
• Speed Feed’ control.Optional ‘Fall Value Auto Correction’ function.
•  Optional ‘Fall Value Auto Correction’ function.
•  Optional ‘Auto Pause for Deviation Alarm’, ‘Auto Pause for Gross Weight Upper Limit Alarm’
• and ‘Manual Pause’ functions.
• Optional ‘Target Batch Control’ function [With Target Batch Count finished, the batching
• process will stop automatically].
• Batching Process Power-off Protection’ function available.
• One Batch Record can be queried.

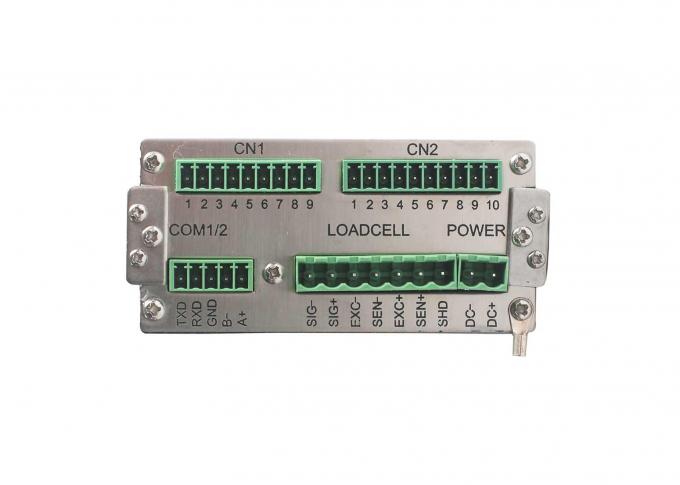

•  2 Communication ports [RS232&RS485] for connecting Host IPC/PLC and LED Remote
• Display.
• With the multitasking mode, the weighing&control process will not be interrupted by parameter
• setting and the other operations.
•

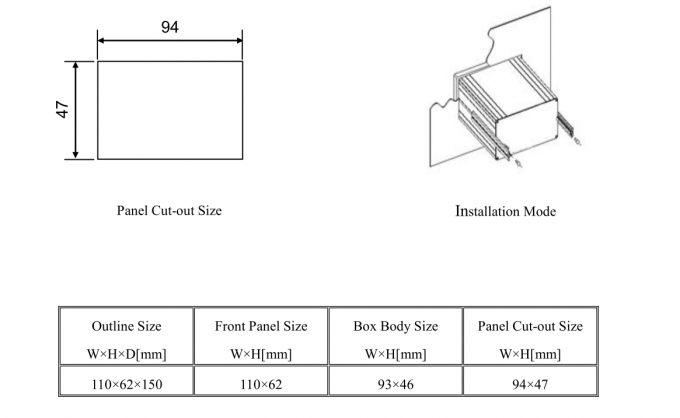

 Outline Size [W×H×D]: 110 × 62 × 150 mm.
 Panel Cut-out Size [W×H]: 94 × 47 mm.
