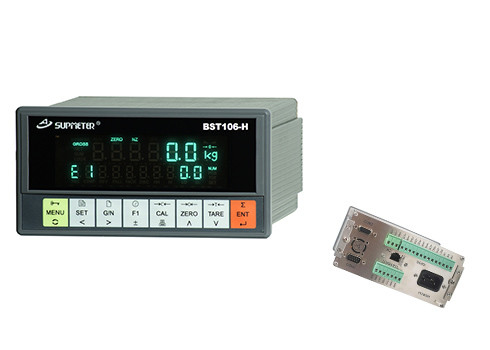

VFD Display Batch Weighing Controller , Weighing Scale Controller With 5- Material
Product Details:
Place of Origin: | CHINA |
Brand Name: | Supmeter |
Certification: | CE |
Model Number: | BST106-H18[F] |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | 150USD PER PCS |
Packaging Details: | CARTON PACKING |
Delivery Time: | 3 WORKING DAYS |
Payment Terms: | T/T |
Supply Ability: | 1000 PCS PER MONTH |
Detail Information |
|||
Display: | VFD | Communication: | RS232 |
---|---|---|---|
Static Weighing Accuracy: | 0.03% | ||
High Light: | batch controller unit,smart load batch controller |
Product Description
VFD Display Batching Controller Weighing Scale Controller With 5-Material
Technical Specifications

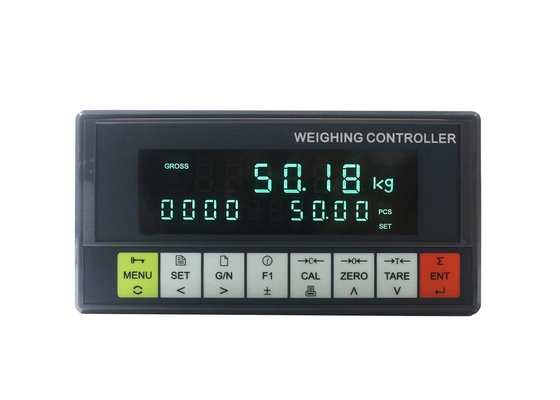

- Display
- 6+10 Green VFD digital tubes for English character and digit display.
- Weight Display Range: -99,999~+999,999.
- Scale Capacity: Setting Range 1~999,999.
- Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500.
- Display Resolution: 1/100,000.
- Weight Unit: Optional kg, t, g, none.
- Decimal Point Position: Optional 0, 0.0, 0.00, 0.000, 0.0000.
- Display Refreshing Time: Setting Range 0.01~1.00s.
- Keypad
- 8-key English keypad.
- Menu&Shortcut mode operation with key tone.
- Loadcell Interface
- Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].
- Signal Input Range: 0~25mV.
- Output Sensitivity of Loadcell: 1.0~2.5mV/V.
- 24-bit ∑-△ADC with internal resolution 1/1,000,000.
- Sampling Frequency: 400Hz.
- Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
- Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
- Gain Drift: ±5ppm/℃.
- Non-linearity: 0.005%FS.

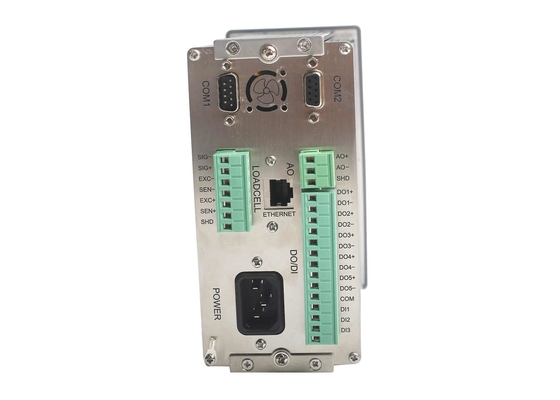

- Switch&Analog Signal Interface
- 7 Normally Open Switch Inputs [DI].
- 12 Normally Open Transistor Switch Outputs [DO]: DC24V, 500mA.
- 1 Optional&Definable Analog Signal Output [AO]: 4~20mA, Non-linearity: 0.05%FS.
- Digital Communication Interface
- COM1: RS232.
- COM2 Optional: RS232/RS485/RS422/Profibus-DP/Ethernet modules.
- Connectable: Host IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
- Report Print
- The present Batch Record can be printed automatically and manually.
- 500 Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.
- Operating Specification
- Optional Operating Voltage
- Operating Voltage 1: DC24V±20%.
- Operating Voltage 2: AC85~264V, 50/60Hz.
- Operating Voltage 3: AC220V±15%, 50/60Hz.
- Free to configure one of them.
State Indication
Sign | Description |
[GROSS] | Gross Weight display. |
[NET] | Net Weight display. |
[LOCK] |
ON: Key-locked. OFF: Key-unlocked. |
[◣◢] | Weight is stable: Weight Variance per [107] ‘Stablity Time’ is in [106] ‘Stablity Range’. |
[→0←] | The present Weight display value is in the range of ‘Zero Display Limit’. |
[kg/t/g] | Weight unit. |
[ NUM] | Material No. display. |
[ PCS] | Batch Count display. |
[TOT] |
Totalized Weight display. Total Feeding Weight display. |
[SET] |
Target Weight display. Parameter setting state. |
[RUN] |
ON: Running state. Blinking: Pause state. OFF: Stop or Calibrating state. |
[ZERO] | Net Weight ≤ Non-load Zero Range. |
[NZ] | It’s allowed to do Manual/Auto Zero . |
[SP1] | Bulk Feeding. |
[SP3] | Dribble Feeding. |
[FILL] | Stop state: Weight value is increasing. |
Running state: It’s in the feeding process. | |
[COMP] |
ON: It’s doing comparation between Feeding Weight and Target Weight. OFF: It turns off in Comparing-prohibited Time. |
[DEV] | Up/Low Tolerance Alarm. |
[FALL] | ON: Inflight Value Auto Correction function is open. |
[DISC] | Stop state: Weight value is reducing. |
Running state: It’s in the dumping process. | |
[HH] | Gross Weight Upper Limit Alarm. |
System Diagram for M1~M5 Ration Batching System
