LED Display Batch Weighing Controller With 2 Speed Feeding Control By DOs Or AOs
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Supmeter |
| Certification: | CE |
| Model Number: | BST106-B68[U] |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | 150USD PER PCS |
| Packaging Details: | CARTON PACKING |
| Delivery Time: | 3 WORKING DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 1000 PCS PER MONTH |
|
Detail Information |
|||
| Display: | LED | Communication: | RS232 |
|---|---|---|---|
| Static Weighing Accuracy: | 0.03% | ||
| High Light: | batch controller unit,smart load batch controller |
||
Product Description

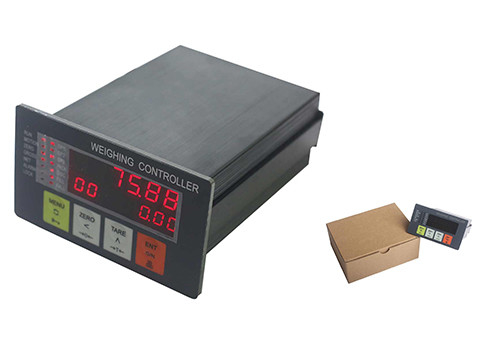

LED Display Batching Weighing Indicator Controller With 2-Speed Feeding Control By DOs Or AOs
Main Applications
- 4-Material Ration Batching Scale.
Main Features
- EMC design with high anti-jam for industrial environment.
- DC24V power input with reverse polarity protection.
- 32-bit ARM CPU with 48MHz clock & high arithmetic speed.
- 6+8 Red LED digital tubes for English&digit display.
- 24-bit ∑-△ADC with internal resolution 1/1,000,000.
- High sampling frequency 400Hz.
- Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
- Auto Zero Tracking.
- Fall Value Auto Correction.
- Auto Re-feed for Negative Deviation Alarm.
- Target Batch Count Control.
- Auto Pause for Gross Weight Upper Limit & Deviation Alarm.
- ‘Manual Pause’ Operation.
- Batching Process Power-off Protection.
- 2-speed[high/low] feeding control by DOs or AOs.
- Definable AO/COM[Communication Port].
- Recipe Number: 1.
DI/DO Function Definition
| CN1 [DI] | |||
| No. | Pin | Signal Name | Description |
| 1 | COM | COM | DI Common Terminal [DC-]. |
| 2 | DI1 | AUTO |
Auto/Manual. ON: Auto state. OFF: Manual state / Emergency Stop. |
| 3 | DI2 | START |
Start / Clear Alarm. In running process: Clear Alarm. Pause state: Clear Alarm & Recover Running. OFF→ON→OFF. |
| 4 | DI3 | PAUSE |
Manual Pause. OFF→ON→OFF. |
| 5 | DI4 | DUMP_I |
Manual Dump. 1. Stop state: ON: Manual Dump; OFF: Stop. 2. In the Auto-batching process If [312] ‘Dumping Mode’ = ‘0. HAnd’, it’s necessary to input the DI signal ‘Manual ‘Dump’ (OFF→ON→OFF) for triggering the dumping process. |
| 6 | DI5 | STOP |
Normal Stop [Last Batch]. OFF→ON→OFF: The batching process will stop automatically after the present batch finished. |
| 7 | DI6 | SP3_I |
Manual Dribble Re-feed. Valid at Pause state with Mn’s Low Tolerance Alarm. ON: Start Mn’s Dribble Feed. OFF: Stop Mn’s Dribble Feed. |
System Diagram for M1~M4 Ration Batching System
