Product Details:

Place of Origin: CHINA
Brand Name: Supmeter
Certification: CE
Model Number: BST106-H18[E]

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: 150USD PER PCS
Packaging Details: CARTON PACKING
Delivery Time: 3 WORKING DAYS
Payment Terms: T/T
Supply Ability: 1000 PCS PER MONTH
Get Best Price Contact Now

Detail Information

Display: VFD Communication: RS232
Static Weighing Accuracy: 0.03%
High Light:

batch controller unit

,

smart load batch controller

Product Description

8 Material Smart Load Batch Controller



  BST106-H18[F] Weighing Controller

    For: Ration Batching Scale with 5-Material&2-Speed Feeding
     [Single-Scale Mode]



       Main Features:

  • Suitable for Ration Batching Scale with 4-Material&2-Speed Feeding [Single-Scale Mode].
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  •  32-bit ARM CPU with 48MHz clock & higher arithmetic speed.
  •  6+8 Red LED digital tubes for English character and digit display.
  •  4-key English keypad.
  • 8 Material Smart Load Batch Controller 0
  • Menu&Shortcut mode operation with key tone.
  • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal
  • resolution and sampling frequency 400Hz.
  •  Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy
  • when there is strong vibration on the load receptor, and the rapid response capability when the
  • weight signal changes.
  •  Max. Connection Quantity: 4 Loadcells (350Ω).
  •  Auto Zero Initial Calibration after Power-on, Auto Zero Tracking, Zero Fine Adjustment, Zero
  • Calibration and Load Calibration functions available.



8 Material Smart Load Batch Controller 1

  • Optional Data Calibration function.
  • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing
  • functions available.

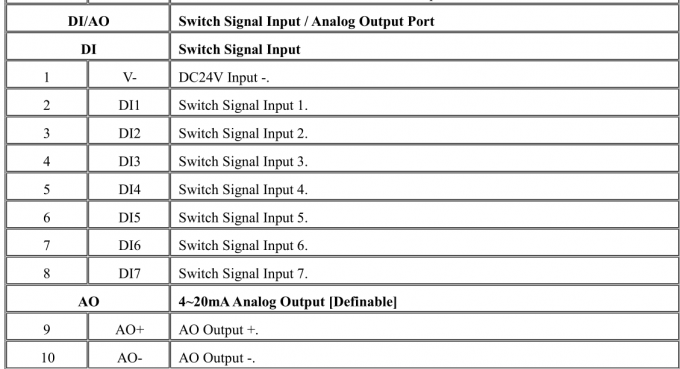

  • 6 Normally open switch inputs [DI] and 8 normally open transistor switch outputs [DO].
  •  Optional ‘High/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes:
  • Continuous Feeding Mode and Inching Feeding Mode.
  • 1 Optional and definable analog signal AO[4~20mA] for weight signal output or ‘High/Low
  • Speed Feed’ control.Optional ‘Fall Value Auto Correction’ function.
  •  Optional ‘Fall Value Auto Correction’ function.
  •  Optional ‘Auto Pause for Deviation Alarm’, ‘Auto Pause for Gross Weight Upper Limit Alarm’
  • and ‘Manual Pause’ functions.
  • Optional ‘Target Batch Control’ function [With Target Batch Count finished, the batching
  • process will stop automatically].
  • Batching Process Power-off Protection’ function available.
  • One Batch Record can be queried.
  •  2 Communication ports [RS232&RS485] for connecting Host IPC/PLC and LED Remote
  • Display.
  • With the multitasking mode, the weighing&control process will not be interrupted by parameter
  • setting and the other operations.
  •


8 Material Smart Load Batch Controller 2



8 Material Smart Load Batch Controller 3





 Outline Size [W×H×D]: 110 × 62 × 150 mm.
 Panel Cut-out Size [W×H]: 94 × 47 mm.



8 Material Smart Load Batch Controller 4
