cShovel Loader/Wheel Loader Weighing Controller, With Position Sensor, Oil Pressure Sensor, Printer and Install Accessory

Whether you have a mining, forestry, landscaping, waste or construction application, SUPMETER offer a complete range of Wheel Loader attachments.Configuration ofc 1 set:

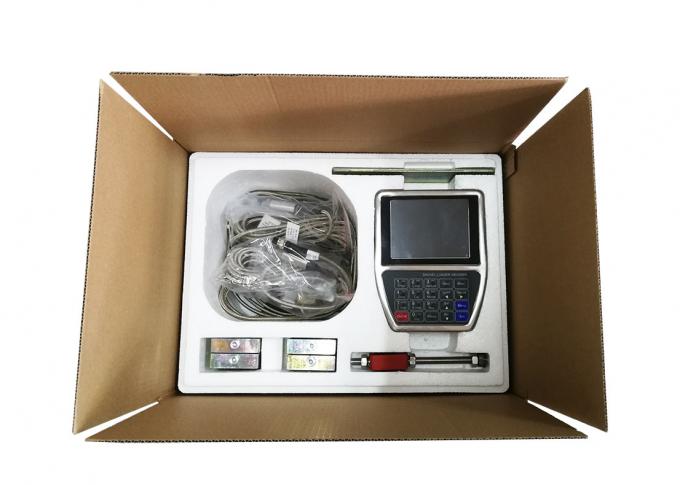

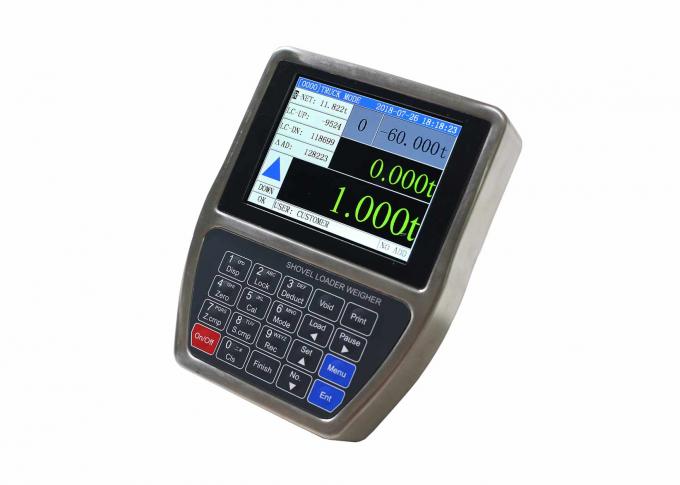

Controller*1

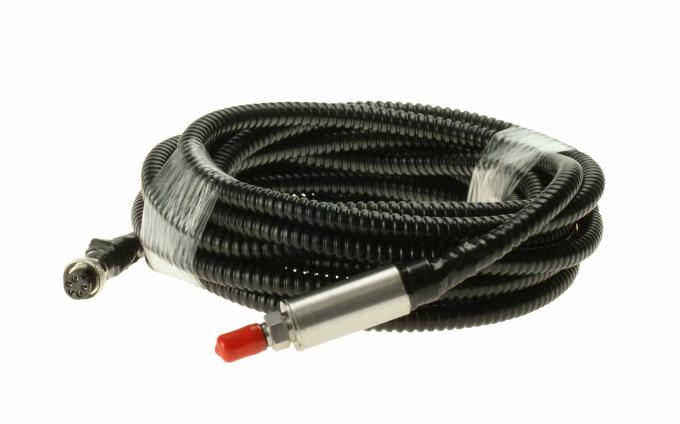

Oil Pressure Sensor*2

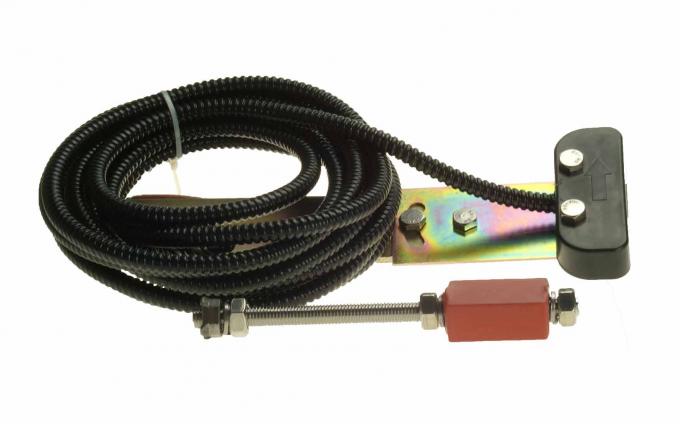

Posiion Sensor*1

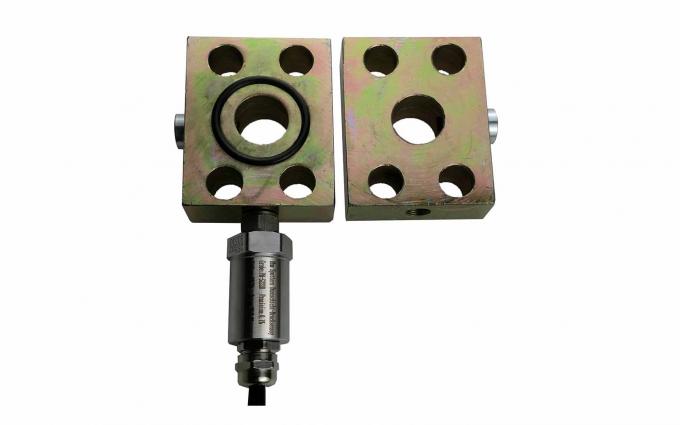

Three-way Joint*1

Package:

Technical Specification

Specifications of Weighing Indicator

• Executing Standard
• CMC GB/T 7724-2008PRC National Standard.
• OMIL R76: 2006International Recommendation.
•
• Display
• 640×480 TFT color display screen for English character display.
• Weight Display Range of Indicator: -99,999~99,999.
• System Weighing Range: 100~12,000kg.
• Scale Division: Optional 1, 2, 5, 10, 20, 50kg.
• Display Resolution: 1/100,000.
• Scale Unit: Fixed kg.
• Weight Unit: Optional kg, t.
• Ton Decimal Point: Optional 0, 0.0, 0.00, 0.000.
• Display Refreshing Time: Setting Range 0.1~2.0s.

• Keypad
• 20-key English keypad with controllable backlight.
• Menu&Shortcut mode operation with key tone.
• Number and English Alphabet can be inputted.
•
• Position Sensor Input Interface
• 2 Switch signal Input.
• Output Voltage: DC12V.
• Max. Output Current: 100mA.
• Oil Pressure Sensor Interface
• Excitation Voltage/Max.Current: DC12V/100mA & DC5V/100mA.
• 2 Oil Pressure signal inputs.
• Signal Input Range: Optional 0~20mV, 0~5V[Factory Set Value].
• ∑-△ADC: 24-bit, 1,000,000 internal code used.
• Sampling Frequency: 400Hz.
• Special anti-vibration digital filtering algorithm.
• Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
• Gain Drift: ±5ppm/℃.
• Non-linearity: 0.005%FS.
• Digital Communication Interface
• COM1: RS232.
• Internal COM2: Optional wireless serial communication module.
• Internal COM3: Connected Thermal Serial Printer, Baud Rate 9600bps, No Parity Check Bit.
• Report Print
• 10000 Loading Records can be saved, queried and printed, and each record can contain 50pcs Single-bucket-loading-weight value.
• Operating Specification

• Operating Voltage: DC24V±20%.
• Max. Power Consumption: 10W.
• Outline Size: 168×213×50mm [W×H×D].
• Operating Temperature: -25℃ to +45℃.
• Storage Temperature: -30℃ to +60℃.
• Relative Humidity: Max. 85%RH.
• Protection Level: IP65.
• Weight: Approx. 2.0kg.

Specifications of Position Sensor

• HALL Type Proximity Switches
• Operating Voltage: DC5~24V.
• Detecting Distance: 1~8mm.
• Response Frequency: 5KHz.
• Quiescent Current:Max. 2mA.
• Thread Size: M8×1mm.
• Service Temperature: -25℃~+70℃.
• Protection Level: IP67.
• Standard Detecting Target
• Permanent magnet.
• Outline Size: 30×10×5mm [L×W×T].

Specifications of Oil Pressure Sensor

• Operating Voltage: DC5V.
• Capacity: 0~25MPa.
• Accuracy: ±0.1%FS.
• Output Sensitivity: 2mV/V.
• Zero Drift: ±0.015%FS/℃.
• Safe Overload: 120%FS.
• Thread Size: M10×1mm.
• Service Temperature: -40℃~+125℃.
• Protection Level: IP67.
