Product Name: TFT-Touch Screen Filling Controller Model Number: BST106-M10(FL)
MOQ: 1pcs Material: Steel
Input: 9DI Output: 18DO
High Light:

digital weighing controller

,

programmable weighing controller

Product Description

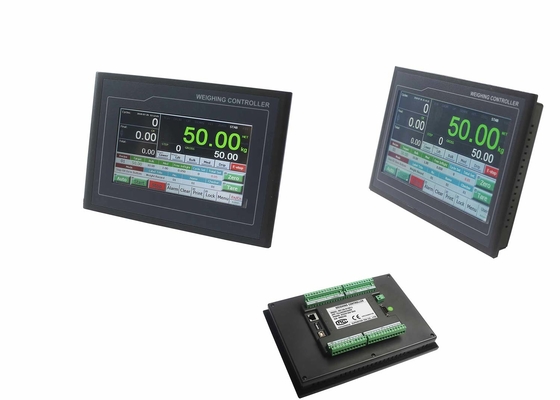

Liquid And Powder Filling Machine Controller , Petroleum / Oil Filling Digital Scale Indicator



Liquid and Powder Filling Machine Controller, Petroleum/Oil Filling Indicator for Filling System

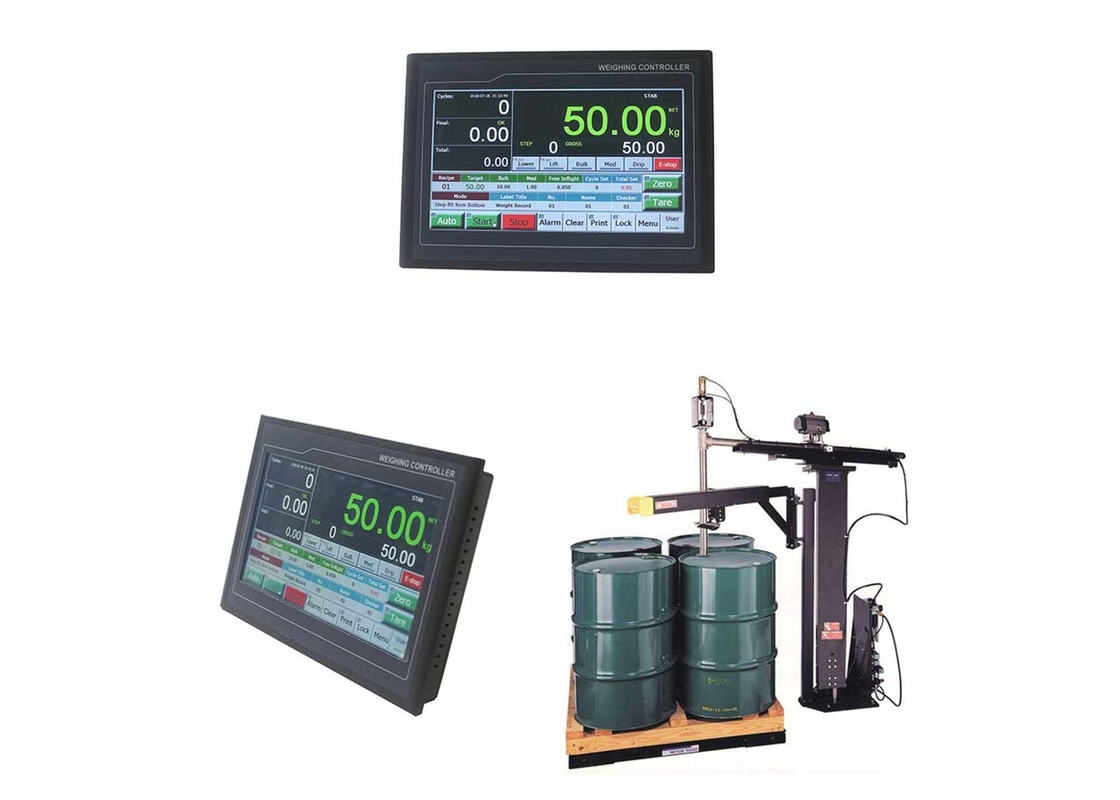

  • Suitable for Liquid/Gas/Powder Ration Fillingweigher [1-Scale].
  • Optional filling modes: Fill on Drum’s Top / Fill on Drum’s Bottom / Step-fill from Drum’s Bottom.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
  • 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
  • Loadcell Interface
  • Max. Connection Quantity: 16 Loadcells (350Ω).
  • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 800Hz.
  • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
  • I/O Interface
  • 9 Definable normally open switch inputs [DI] and 12/18 definable normally open transistor switch outputs [DO].
  • Optional ‘Bulk/Medium/Dribble Fill’ DOs for filling control. Optional Continuous and Jogging Dribble Fill Methods.
  • 2 Optional&definable analog signal AO[0~10V] for weight signal output or ‘Bulk/Medium /Dribble Fill’ control.
  • Digital Communication Interface
  • COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
  • COM[RS232] for connecting RS232 Serial Printer.
  • USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
  • LAN: Optional Ethernet port.

Liquid And Powder Filling Machine Controller , Petroleum / Oil Filling Digital Scale Indicator 0

Liquid And Powder Filling Machine Controller , Petroleum / Oil Filling Digital Scale Indicator 1

Liquid And Powder Filling Machine Controller , Petroleum / Oil Filling Digital Scale Indicator 2



User Login Interface

Name Operation Note
【Login】

User Login.

Exfactory Passwords:

  • Operator: None.
  • Engineer: 0.
  • Administrator: 1.
Operation ‘Main Menu / F5 User / Password / PSW Set’ for Modifying Password.
【User Name】 After password inputted, the matching User Name will be displayed.
  • Operator: User with lowest authorization.
  • Engineer: User with higher authorization.
  • Administrator: User with highest authorization.
【Operate】 Enter ‘Main User Interface’. Operation ‘Main Menu / F5 User / Password / Login [Logoff]’ for Re-login and Logoff.



Button Operation

Name Operation State Indicator Authorization
【Auto】 Auto / Manual [Emergency Stop] switch.

Green: Auto state.

Grey: Manual state.

All Users
【Start】 Start.

Green: Running state.

Grey: Stop state.


【Stop】 Stop [Valid at Auto-running state].
【Re-run】 Clear Alarm & Recover Running.
【E-stop】 Emergency Stop.
【Alarm】

Alarm Query / Clear Alarm.

‘Auto/Pause’ state: Recover Running after alarms cleared.

Red: Alarm state.
【Print】 Report Print. Green: Auto Print is allowed.
【Lock】

Screen-locking: Locking/unlocking the operating buttons of main user interface.

Auto Screen-locking: Refer to parameter [901].

Flashing Red: Locked.

Grey: Unlocked.


【Menu】 Enter Main Menu.
【User】 User Login. Display: Operator / Engineer / Admin.
【Lower】 Manual Lower Filling Gun. Flashing Green: Filling Gun is moving down.
【Lift】 Manual Lift Filling Gun. Flashing Red: Filling Gun is moving up.
【Bulk】 Manual Start/Stop Bulk Fill. Green: Working state.
【Med】 Manual Start/Stop Medium Fill.
【Drip】 Manual Start/Stop Dribble Fill.
【Zero】 Manual Zero [No Power-down Protection]. Flashing Red.
【Tare】 Manual Tare [No Power-down Protection]. Flashing Red.
【Clear】 Clear Screen: Clear the display values of Filling Weight, Totalized Weight and Batch Count.

Engineer

Administrator



Outline Size
