Ration Weighing Controller For Single Weighing Hopper / Bag Ration Packing Scale

Good quality Batch Weighing Controller for sales
Good quality Batch Weighing Controller for sales
I'm Online Chat Now

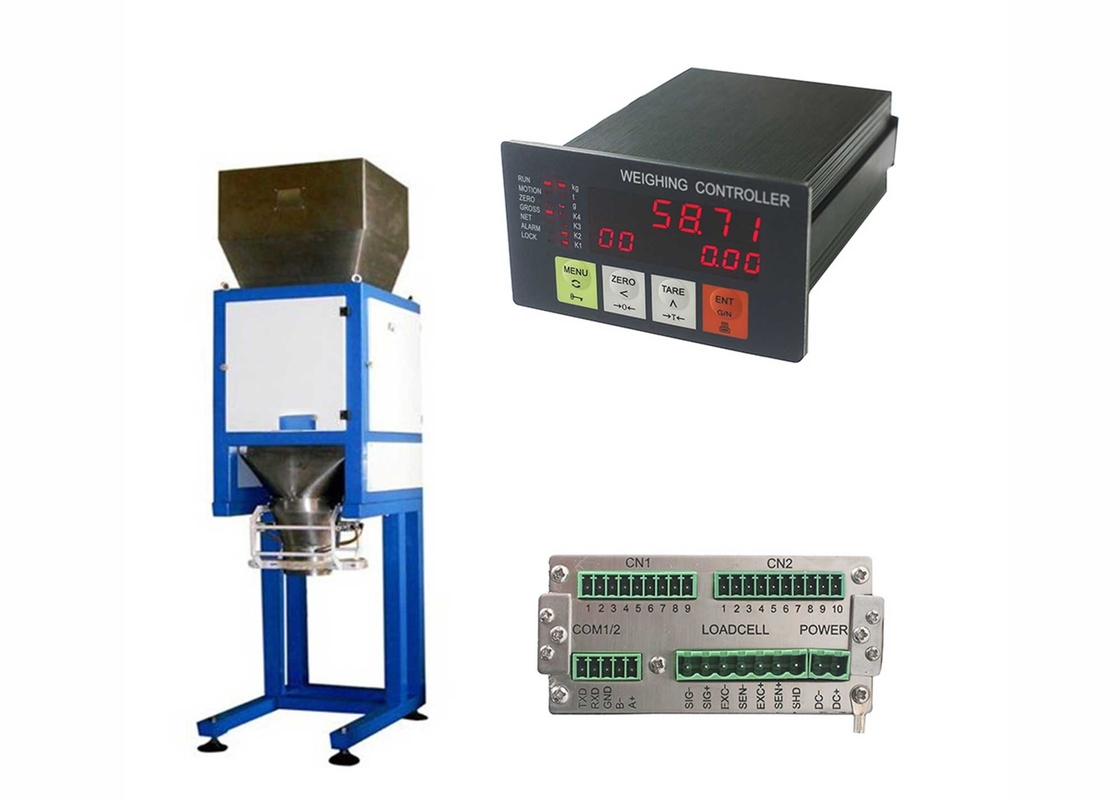

Ration Weighing Controller For Single Weighing Hopper / Bag Ration Packing Scale

China Ration Weighing Controller For Single Weighing Hopper / Bag Ration Packing Scale supplier
Ration Weighing Controller For Single Weighing Hopper / Bag Ration Packing Scale supplier Ration Weighing Controller For Single Weighing Hopper / Bag Ration Packing Scale supplier

Large Image :  Ration Weighing Controller For Single Weighing Hopper / Bag Ration Packing Scale

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-B66(A)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 88-128usd/pcs
Packaging Details: 1pcs/box
Delivery Time: 1-3days
Payment Terms: L/C, T/T
Supply Ability: 2000pcs/day
Contact Now
Detailed Product Description
Power Supply: DC24V COM1: RS232
COM2: RS485 Packing Accuracy: 0.2%-0.5%
Product Name: LED Display Packing Controller Customization: Available

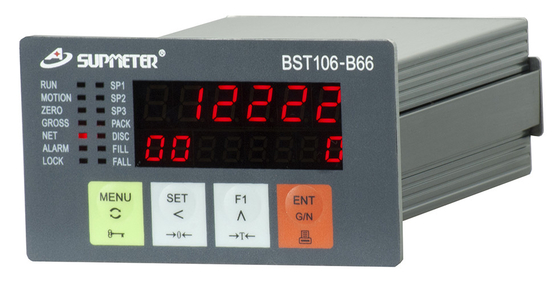

Ration Packing Controller/Indicator For Single-weighing-hopper/bag Ration Packing Scale BST106-B66



Main Features​:

Suitable for Loss-in-weight Ration Packing Scale with Auto Bag-releasing or Manual Bag-releasing and Loss-in-weight Bulk Material Ration Feeding Scale.



Main Features

1.BST106-B66[D] Suitable for Loss-in-weight Ration Packing Scale with Auto Bag-releasing or Manual Bag-releasing and Loss-in-weight Bulk Material Ration Feeding Scale.

2. EMC design with high anti-jamming capability, suitable for industrial environment.

3. 32-bit ARM CPU with 48MHz clock & high arithmetic speed.

4. 6+8 Red LED digital tubes for English character and digit display.

5. English keypad for Menu&Shortcut mode operation with key tone.

6. 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.

7. Special anti-vibration digital filtering algorithm for ensuring the weighing stability and occuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.



Technical Specification:

Display 6+8 Red LED digital tubes for English character and digit display
Weight Display Range -99,999~+999,999
Scale Capacity Setting Range 1~999,999
Scale Division Optional 1, 2, 5, 10, 20, 50, 100, 200, 500
Display Resolution 1/100,000
Weight Unit Optional kg, t, g, none
Loadcell Interface Excitation Voltage/Max. Current DC9V/120mA [4-350Ω loadcells]
Signal Input Range 0~22.5mV
Output Sensitivity of Loadcell 1.0~2.5mV/V
Sampling Frequency 400Hz
Non-linearity 0.005%FS
Switch&Analog Signal Interface DI 6 Normally Open Switch Inputs
DO 8 Normally Open Transistor Switch Outputs [DO]: DC24V, 250mA
AO 1 AO:4~20mA
Digital Communication Interface COM1 RS232
COM2 RS485
Connectable Host IPC/PLC and LED Remote Display



Ration Weighing Controller For Single Weighing Hopper / Bag Ration Packing Scale

Ration Weighing Controller For Single Weighing Hopper / Bag Ration Packing Scale



System Diagram for APP1 Ration Packing Mode

Ration Weighing Controller For Single Weighing Hopper / Bag Ration Packing Scale



System Diagram for APP2 Bulk Material Ration Feeding Mode

Ration Weighing Controller For Single Weighing Hopper / Bag Ration Packing Scale



Keypad Operation

Menu Operation
Key Name Description
【MENU】

Enter Main Menu.

Exit.

【ENT】 Enter / Save / Clear Alarm.
【◄】

Cursor shifts left.

Display the previous option.

【►】

Cursor shifts left.

Display the next option.

【▲】

Display the next interface or option.

Digit input: +1 ( 0~9 loop).

【▼】

Display the previous interface or option.

Digit input: -1 ( 0~9 loop).

Quick Operation

【MENU】

【Ñ】

*

  • Key-locking.
  • Key-unlocking.

【◄】

(【SET】)

Recipe parameters setting.

【◄】

【ZERO】

【→0←】

*

  • [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
  • [≡ZEro≡]: Manual Zero without Power-down Protection and without Clearing Tare Weight.
  • The controller will switch to Gross Weight display.

【▲】

【TARE】

【→T←】

*

  • [≡tArE≡]: Manual Tare without Power-down Protection.
  • [-PStr-]: Preset Tare Weight with Power-down Protection.
  • [-rStr-]: Clear Tare Weight with Power-down Protection.
  • The controller will switch to Net Weight display.

【ENT】

【G/N】

Gross Weight / Net Weight display switch.



Package

Ration Weighing Controller For Single Weighing Hopper / Bag Ration Packing Scale
