TFT Touch 25kg Bag Packing Machine Weight Scale Controller For Rice Weighing

TFT Touch 25kg Bag Packing Machine Weight Scale Controller For Rice Weighing

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-M10(AL)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiate
Packaging Details: 1pcs into 1 box
Delivery Time: 5-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs/week
Get Best Price Contact Now

Detail Information

Power Supply: DC24V Product Name: TFT-Touch Packing Controller
Product Size: 226.5*163*36mm Display: TFT Touch Screen
MOQ: 1pcs Model No.: BST106-M10(AL)
High Light:

Packing Machine Weight Scale Controller

,

TFT Touch Weight Scale Controller

,

TFT Touch Bag Scale Controller

Product Description

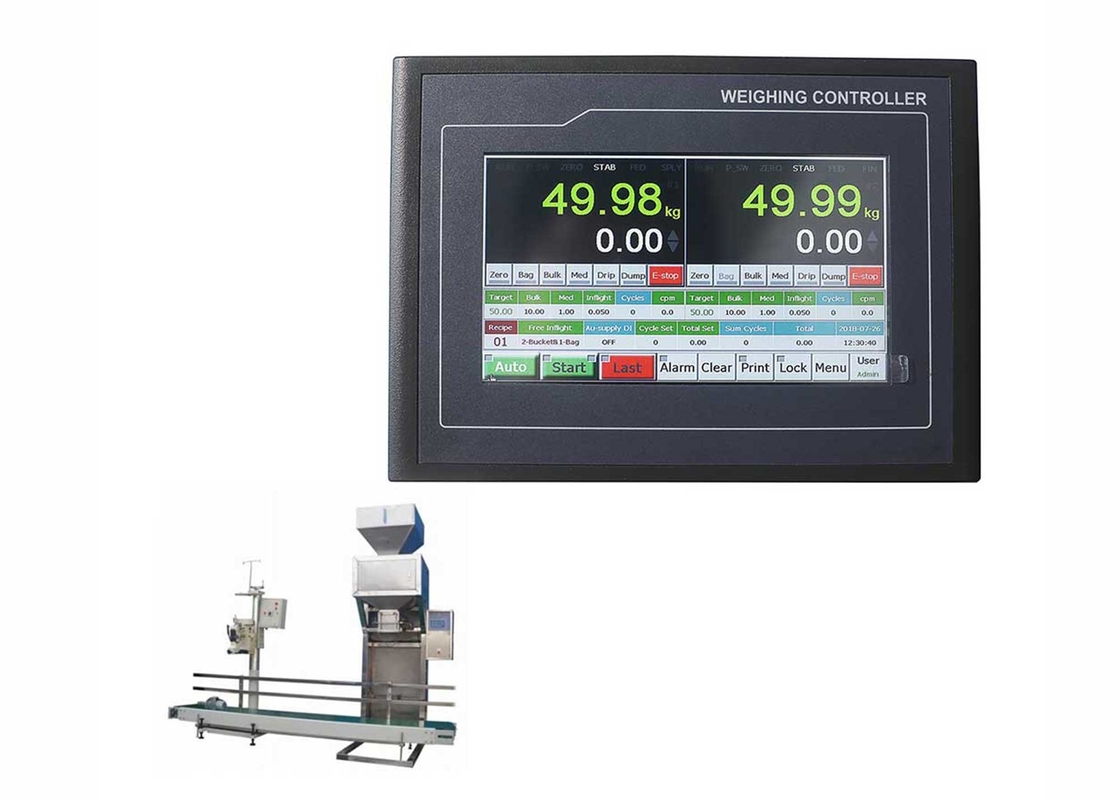

Semi Automatic 25kg Bag Weight Scales, Fertilizer Vertical Fill Seal Packing Machine Instrument



Operation Interface of User Login

Name Operation Note
【Login】

User Login.

Exfactory Passwords:

  • Operator: None.
  • Engineer: 0.
  • Administrator: 1.
Operation ‘Main Menu / F5 User / Password / PSW Set’ for Modifying Password.
【User Name】 After password inputted, the matching User Name will be displayed.
  • Operator: User with lowest authorization.
  • Engineer: User with higher authorization.
  • Administrator: User with highest authorization.
【Operate】 Enter ‘Main User Interface’.

Operation ‘Main Menu / F5 User / Password / Login [Logoff]’ for Re-login and Logoff.





                 Main Features:

² Suitable for Ration Packing Scale with optional Hopper-weighing Mode, Bag-weighing Mode and Loss-in-weight Mode.

² EMC design with high anti-jamming capability, suitable for industrial environment.

² Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.

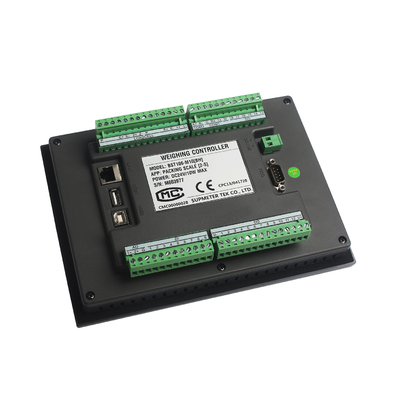

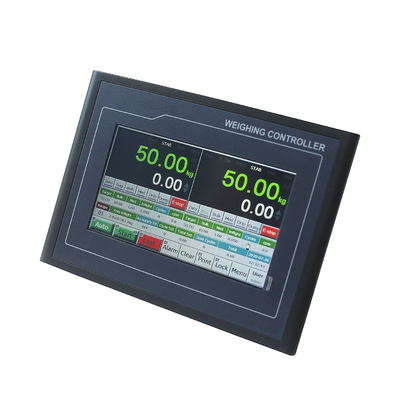

² 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.

² Loadcell Interface

l Max. Connection Quantity: 16 Loadcells (350Ω).

l 24-bit High-precision and high-speed ∑-A/D conversion module with 1/1,000,000 internal resolution and samplingfrequency 800Hz.

l Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strongvibration on the load receptor, and the rapid response capability when the weight signal changes.

² I/O Interface

l 9 Definable normally open switch inputs [DI] and 18 definable normally open transistor switch outputs [DO].

l Optional ‘High/Medium/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.

l 2 Definable analog signal AOs[0~10V] for weight signal output or ‘High/Medium/Low Speed Feed’ control.

² Digital Communication Interface

l COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.

l COM[RS232] for connecting RS232 Serial Printer.

l USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.

² Software Function

l Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.

l Initial Zero Adjustment after Power-on, Auto Zero Tracking, Zero Fine Adjustment and Zero Calibrationfunctions available.

l Load Calibration and Loss Calibration functions available.

l 10 Recipes for packing control.

l Optional ‘Fall Value Auto Correction’ function.

l Optional ‘Auto Pause for Deviation Alarm’ and ‘Auto Re-feed’ functions.

l Optional ‘Target Batch Control’ function [With Target Batch Count or Target Batch Weight finished, the packing process will stop automatically].

l The Batch Records can be printed automatically.

l Historical Batch Records, Totalizing Reports and Recipes can be queried and printed.

With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.



TFT Touch 25kg Bag Packing Machine Weight Scale Controller For Rice Weighing 0

TFT Touch 25kg Bag Packing Machine Weight Scale Controller For Rice Weighing 1





TFT Touch 25kg Bag Packing Machine Weight Scale Controller For Rice Weighing 2

TFT Touch 25kg Bag Packing Machine Weight Scale Controller For Rice Weighing 3



Button Operation

Name Operation State Indicator Authorization
【Auto】 Auto / Manual [Emergency Stop] switch.

Green: Auto state.

Grey: Manual state.

All Users
【Start】 Start.

Green: Running state.

Grey: Stop state.

【Re-run】 Clear Alarm & Recover Running.
【Stop】

Normal Stop [Last Batch].

Stop after the present batch finished.

Flashing Red.
【E-Stop】 Emergency Stop.
【Alarm】

Alarm Query / Clear Alarm.

‘Auto/Pause’ state: Recover Running after alarms cleared.

Red: Alarm state.
【Print】

Report Print:

  • [ Auto Print]: Print Batch Records.
  • [Total]: Print Totalizing Report.
  • [Recipe]: Print Working Recipe.

【Lock】

Screen-locking: Locking/unlocking the operating buttons of main user interface.

Auto Screen-locking: Refer to parameter [901].

Flashing Red: Locked.

Grey: Unlocked.

【Menu】 Enter Main Menu.
【User】 User Login. Display: Operator / Engineer / Admin.
【Zero】 Manual Zero [No Power-down Protection]. Flashing green.
【Bag】 Bag-clamp/release Request.

Green: Bag-clamping state.

Grey: Bag-releasing state.

【Bulk】 Manual Start/Stop Bulk Feed. Green: Working state.
【Med】 Manual Start/Stop Medium Feed.
【Drip】 Manual Start/Stop Dribble Feed.
【Dump】 Manual Start/Stop Dumping.
【Mat.】 Manual Start/Stop Supplying Materials into Feeding Bin. Flashing green.
【Clear】 Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Cycle Speed.

Engineer

Administrator



Semi Automatic 25kg Bag Weight Scales, Fertilizer Vertical Fill Seal Packing Machine Instrument
