Automatic Bagging Weighing Scale Controller , Packing Controller For Machine

China Automatic Bagging Weighing Scale Controller , Packing Controller For Machine supplier
Automatic Bagging Weighing Scale Controller , Packing Controller For Machine supplier Automatic Bagging Weighing Scale Controller , Packing Controller For Machine supplier

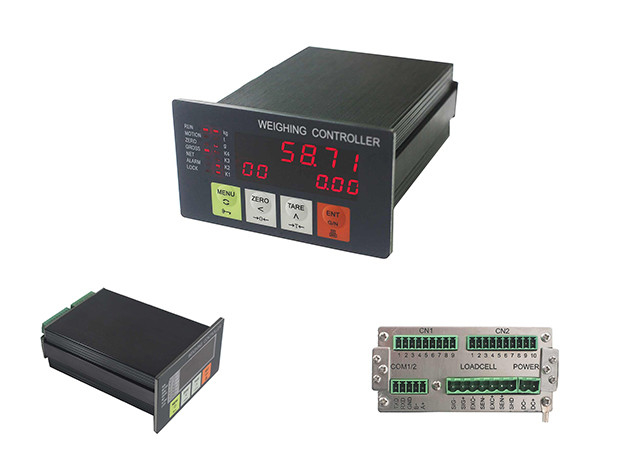

Large Image :  Automatic Bagging Weighing Scale Controller , Packing Controller For Machine

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-B66(A)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 89-132usd/pcs
Packaging Details: 1pcs/box
Delivery Time: 3-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs/month
Contact Now
Detailed Product Description
Power Supply: DC24V Outline Size: W110*H62*D150mm
Panel Cut-out Size: W94*H47mm Operating Temperature: -25℃-+40℃
Verification Accuracy: 0.03% Packing/Filling Accuracy: 0.2-0.5%



Automatic Bagging Weighing Scale Controller For Packing Machine



     Main Features:

  • Suitable for Ration Packing Scale. Optional Application Modes: Single-hopper-weighing Mode [Single-scale Mode], Double-hopper-weighing Mode [Double-scale Mode] and Bag-weighing Mode with Auto Bag-releasing or Manual Bag-releasing.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • 32-bit ARM CPU with 48MHz clock & higher arithmetic speed.

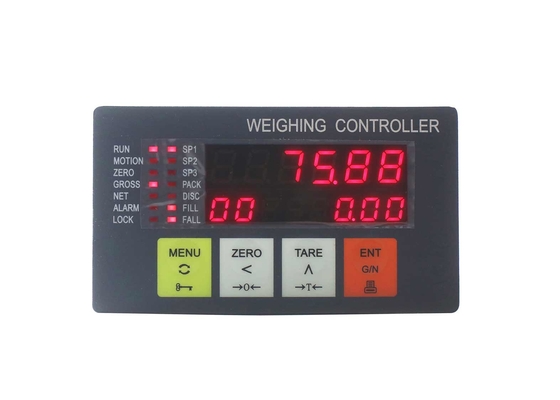

  • 6+8 Red LED digital tubes for English character and digit display.
  • 4-key English keypad.
  • Menu&Shortcut mode operation with key tone.
  • 24-bit High-precision and high-speed A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
  • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
  • Max. Connection Quantity: 4 Loadcells (350Ω).
  • Auto Zero Initial Calibration after Power-on, Auto Zero Tracking, Zero Fine Adjustment, Zero Calibration and Load Calibration functions available.
  • Optional Data Calibration function.
  • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
  • 6 Normally open switch inputs [DI] and 8 normally open transistor switch outputs [DO].
  • Optional ‘High/Medium/Low Speed Feed’ DOs for feeding control. Optional Low-speed Feeding Modes: Continuous Feeding Mode and Inching Feeding Mode.
  • 1 Optional and definable analog signal AO[4~20mA] for weight signal output or ‘High/Medium/Low Speed Feed’ control.
  • Optional ‘Fall Value Auto Correction’ function.
  • Optional ‘Auto Pause for Deviation Alarm’ function.
  • Optional ‘Target Batch Control’ function [With Target Batch Count or Target Batch Weight finished, the packing process will stop automatically].
  • 2 Communication ports [RS232&RS485] for connecting Host IPC/PLC and LED Remote Display.
  • With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

Alarm Signs

Sign Alarm Cause Solution
Err1 RAM Failure. Replace the chip RAM.

Err2.1

Err2.2

EEPROM Failure. Replace the chip EEPROM.
Err3 Signal reversed or not connected. Connect the loadcell correctly.
Err4 ADC Failure. Replace the ADC module.
oV-Ad Over ADC Range.

Weighing signal exceeds A/D conversion range.

1. Check if the loadcell is connected.

2. Check if the capacity of loadcell is too small.

3. Check if the loading weight is too big.

oL Overload Alarm.

Gross Weight > (Scale Capacity + 9 × Scale Division).

1. Check if the loadcell is connected.

2. Check if the capacity of loadcell is too small.

3. Check if the loading weight is too big.

HI Gross Weight Upper Limit Alarm. Refer to parameter [210] ‘Gross Weight Upper Limit’.
OV-PAUSE Pause for Up Tolerance Alarm. Press DI button ‘Start/Clear Alarm’ to recover running.
dn-PAUSE Pause for Low Tolerance Alarm.

It’s allowed to do ‘Manual Dribble Re-feed’.

Press DI button ‘Start/Clear Alarm’ to recover running.

bAt-End Alarm or Auto-stop for ‘Batch Count Target Finished’ or ‘Batch Weight Target Finished’. Refer to parameter [208] ‘Batch Count Target’, [209] ‘Batch Weight Target’ and [301] ‘Batch Target Control ’. Clear Screen to clear the message.
LASt-bAt Last Batch. The message will disappear after the present batch finished.
oV-tr Not meet the condition of Maunal Tare. When Gross Weight is at the state with negative value display, overload alarm or dynamic variation, ‘Manual Tare’ will be invalid.
Over ‘Auto Tare Range’. Refer to parameter [131] ‘Auto Tare Range’.
oV-nZ Over ‘Manual/Auto Zero Limit’. Refer to parameter [123] ‘Manual/Auto Zero Limit’.
AuZr Auto Zero. Refer to parameter [302] ‘Auto Zero Cycle Interval’.
Autr Auto Tare. Refer to parameter [303] ‘Auto Tare Cycle Interval’.
HEAt Preheating Time Countdown [min.sec].

Refer to parameter [128] ‘Zero Upon Power Up’, [129] ‘Power Up Zero Time’ and [130] ‘Power Up Zero Limit’.

Wait for the preheating time over or press any key to exit.

oV-Zr Over ‘Power Up Zero Limit’.
Prt-undEF Print port is not defined. Refer to ‘Communication Parameters’.
