Weighing Conveyor Belt Weigh Feeder Controller With Long Life Time

China Weighing Conveyor Belt Weigh Feeder Controller With Long Life Time supplier
Weighing Conveyor Belt Weigh Feeder Controller With Long Life Time supplier Weighing Conveyor Belt Weigh Feeder Controller With Long Life Time supplier

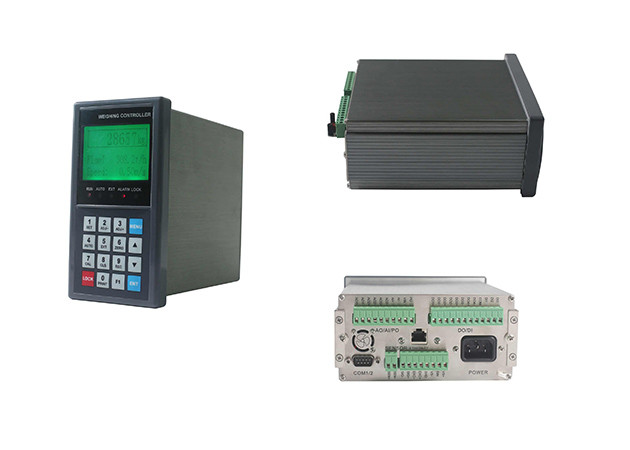

Large Image :  Weighing Conveyor Belt Weigh Feeder Controller With Long Life Time

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST100-E01

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: carton
Delivery Time: 3workdays
Payment Terms: Western Union, T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Power Supply: AC220V Material: Steel
Accuracy Of Flow Control: 0.5%~1.0% Accuracy Grade: 0.5
Max. Connection Number Of Loadcell: 8 Loadcells (350Ω) Communication Port: COM1:Optional RS232/RS485/RS422/ Profibu-DP/Ethernet; COM2:RS485
Open Swith Input: 3DI Open Repay Output: 4DO



Weighing Conveyor Belt Weigh feeder Controller With Ration Flow Feeding

Technical Specification

Power Supply AC220±15%
Display 128X64 LCD display screen with 7background colors
Sampling Frequency 400Hz
A/D Convert 24-bit
Keypad 16 keys for Menu&Shortcut mode operation with key tone
Excitation Voltage Output of Loadcell DC10V
Max. Connection number of Loadcell 8 Loadcells (350Ω)
Speed Sensor Excitation Voltage/Current DC12V/100mA
Speed Signal Input Range 0.5-3000Hz
AO 2'PID Control'Analog Output[4-20mA]
Communication Port COM1:Optianal RS232/RS485/RS422/Profibus-DP/Ethernet; COM2:RS232
Outline Dimension 202 × 305 × 90 mm (W×H×D)
Net Weight Approx. 4.2kg
IP Grade IP65
Operating Temperature -25℃~+45℃
Accuracy of Flow Control 0.5%~1.0%



Main Features:

  • Suitable for Ration Belt Weighfeeder with Ration Flow Feeding & Ration Weight Batch Control.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.
  • Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
  • The feeder and belt weigher can be started and stopped by DI&DO signal.
  • 1 ‘Totalized Weight High-speed Pulse’ output [PO].
  • Weight Records per shift/day/month of a year can be queried and printed.
  • With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.


Keypad Operation

Key Name Description

【MENU】
(【ESC】)

Enter Main Menu.

Exit.

【ENT】 Enter/Save.
【▲】

Cursor shifts up or left.

Display the previous interface or option.

【▼】

Cursor shifts down or right.

Display the next interface or option.

【0~9】 Digit Input.
                                       Quick Operation
【LOCK】
  • Key-locking.
  • Key-unlocking.
【F1】 Return to the initial display interface.
【SET】 Flow Set Value Setting.
【ADJ-】 Control Current -1mA.
【ADJ+】 Control Current +1mA.
【AUTO】 ‘Manual/Auto’ Control Mode Selection.
【EXT】 ‘Internal/External’ Flow Set Mode Selection.
【ZERO】 Zero Calibration.
【CAL】 Dynamic Span Calibration.
【CLS】 Clear Screen: Clear display value of Totalized Weight.
【REC】 Query and print Weight Record.
【PRINT】 Print.

Installation:

Weighing Conveyor Belt Weigh Feeder Controller With Long Life Time

Ration Flow Auto-Feeding System:

Weighing Conveyor Belt Weigh Feeder Controller With Long Life Time

FAQ:
1. Sample is Available?
Yes. This product support free sample. As long as you can bear the freight charge.
2. What detailed information do I need to provide if I want to place an order?
We need to know the following information: accuracy, Quantity, special requirements if you have, etc.
3. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
4. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union,etc.
5. When will you arrange the production?
We will arrange the production immediately after receiving your payment.
6. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
7. How long is the warranty period?
The warranty period for our products is 12 (twelve) months.
If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.
(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
