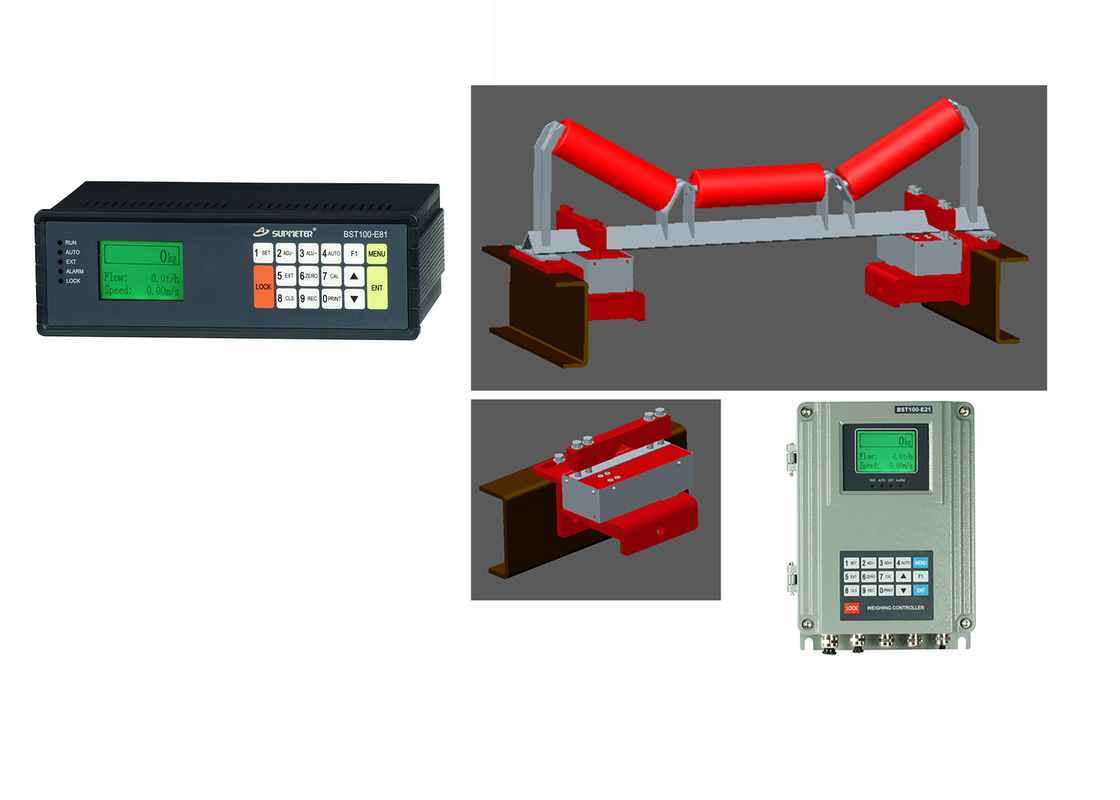

• Panel Mounted Belt Scale Controller , Digital Weight Controller High Accuracy

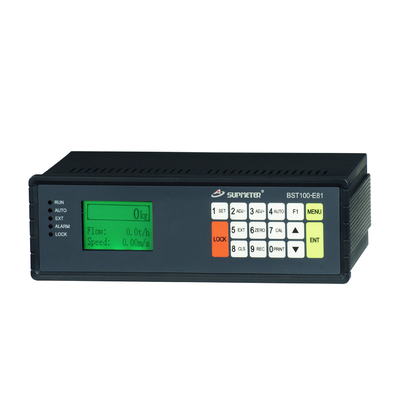

  • Panel Mounted Belt Scale Controller , Digital Weight Controller High Accuracy

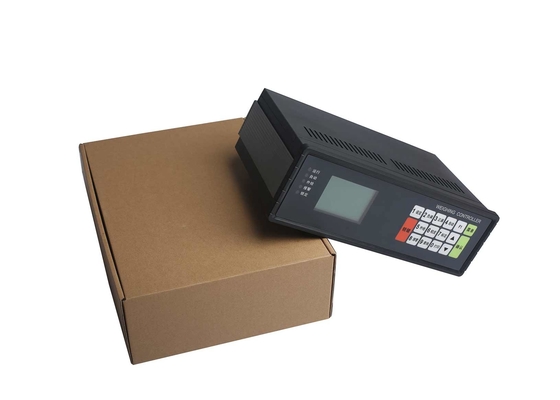

  • Panel Mounted Belt Scale Controller , Digital Weight Controller High Accuracy
Panel Mounted Belt Scale Controller , Digital Weight Controller High Accuracy

Panel Mounted Belt Scale Controller , Digital Weight Controller High Accuracy

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST100-E81

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 236-430usd/pcs
Packaging Details: 1pcs/box
Delivery Time: 3-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/month
Get Best Price Contact Now

Detail Information

Power Supply: AC220V Display Type: LCD
Product Size: 164*86*193mm Accuracy Grade: 0.5
Communication Port: COM1:Optional RS232/RS485/RS422/ Profibu-DP/Ethernet; COM2:RS485 Name: AC220v Lcd Electronic Weigh Belt Feeder Conveyor Belt Weigher Scale Feeding Flow
High Light:

belt weigher indicator

,

digital indicator with remote display

Product Description

Panel Mounted Belt Scale Controller , Digital Weight Controller High Accuracy



Panel mounted Electronic Weigh Belt Feeder Conveyor Belt Scale Feeding Flow Weigher BST100- E11



Main Features:

Suitable for Ration Belt Weighfeeder with Ration Flow Feeding & Ration Weight Batch Control.

EMC design with high anti-jamming capability, suitable for industrial environment.

32-bit ARM CPU with 72MHz & higher arithmetic speed.

128×64 LCD display screen with 7 background colors for English display.

16-key English keypad.

 Menu&Shortcut mode operation with key tone.

 High-precision ∑-A/D conversion technology and broad-range speed pulse input circuit.

 Max. Connection Quantity: 8 Loadcells (350Ω).

Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.

Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.

One optional ‘Flow Setpoint’ analog signal input [AI: 4~20mA].

Max.3 definable ‘Flow/Control Current /…’ analog signal outputs [AO: 4~20mA].

Quick and steady PID ration feeding control.

3 Definable normally open switch inputs [DI] and 4 definable normally open relay switch outputs [DO].

The feeder and belt weigher can be started and stopped by DI&DO signal.

1 ‘Totalized Weight High-speed Pulse’ output [PO].

2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.

Weight Records per shift/day/month of a year can be queried and printed.

With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

Panel Mounted Belt Scale Controller , Digital Weight Controller High Accuracy 0

Keypad Operation

Key Name Description

【MENU】

(【ESC】)

Enter Main Menu.

Exit.

【ENT】 Enter/Save.
【▲】

Cursor shifts up or left.

Display the previous interface or option.

【▼】

Cursor shifts down or right.

Display the next interface or option.

【0~9】 Digit Input.
Quick Operation
【LOCK】
  • Key-locking.
  • Key-unlocking.
【F1】 Return to the initial display interface.
【SET】 Flow Set Value Setting.
【ADJ-】 Control Current -1mA.
【ADJ+】 Control Current +1mA.
【AUTO】 ‘Manual/Auto’ Control Mode Selection.
【EXT】 ‘Internal/External’ Flow Set Mode Selection.
【ZERO】 Zero Calibration.
【CAL】 Dynamic Span Calibration.
【CLS】 Clear Screen: Clear display value of Totalized Weight.
【REC】 Query and print Weight Record.
【PRINT】 Print.


Ration Flow Auto-Feeding System

Panel Mounted Belt Scale Controller , Digital Weight Controller High Accuracy 1



FAQ:
1. Sample is Available?
Yes. This product support free sample. As long as you can bear the freight charge.
2. What detailed information do I need to provide if I want to place an order?
We need to know the following information: accuracy, Quantity, special requirements if you have, etc.
3. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
4. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union,etc.
5.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
6. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
7. How long is the warranty period?
The warranty period for our products is 12 (twelve) months.
If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.
(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
