|Operating Voltage:||AC100~260V, 50/60Hz||Connect:||Digit Sensor|
|Function:||Batching And Weighing||Communication Protocol:||MODBUS ASCII And MODBUS RTU|
|Coomunication Port:||RS232 And RS485||IP Grade:||IP65|
BST100-E11D'E01D'E21D are digital type indicator used for belt scale system for batching and weighing.
1. Suitable for Ration Belt Weighfeeder with Ration Flow Feeding & Ration Weight Batch Control.
2. EMC design with high anti-jamming capability, suitable for industrial environment.
3. 32-bit ARM CPU with 72MHz clock & high arithmetic speed.
4. 128×64 LCD display screen with 7 background colors for English display.
5. 16-key English keypad.
6. Menu&Shortcut mode operation with key tone.
7. Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy
when there is strong vibration on the load receptor, and the rapid response capability when the
weight signal changes.
8. Optional Digital Sensor Ports: CANBUS or RS485.
9. Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing
10. Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
11. One optional „Flow Setpoint‟ analog signal input [AI: 4~20mA].
12. Max.3 definable „Flow/Control Current /…‟ analog signal outputs [AO: 4~20mA].
13. Quick and steady PID ration feeding control.
14. 3 Definable normally open switch inputs [DI] and 4 definable normally open relay switch
15. The feeder and belt weigher can be started and stopped by DI&DO signal.
16. 1 „Totalized Weight High-speed Pulse‟ output [PO].
17. 2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer
and Wireless Module.
18. Weight Records per shift/day/month of a year can be queried and printed.
19. With the multitasking mode, the weighing&control process will not be interrupted by parameter
setting and the other operations.
Digital Sensor Interface:
|Excitation Voltage/Max. Current||DC24V/300mA|
|Optional Digital Sensor Ports||CANBUS or RS485|
|Optional Digital Sensor Communication Protocols||Protocol of DJB-W4S2 Digital Junction Box
[4-Channel Weighing Signal & 2-Channel Speed Signal]

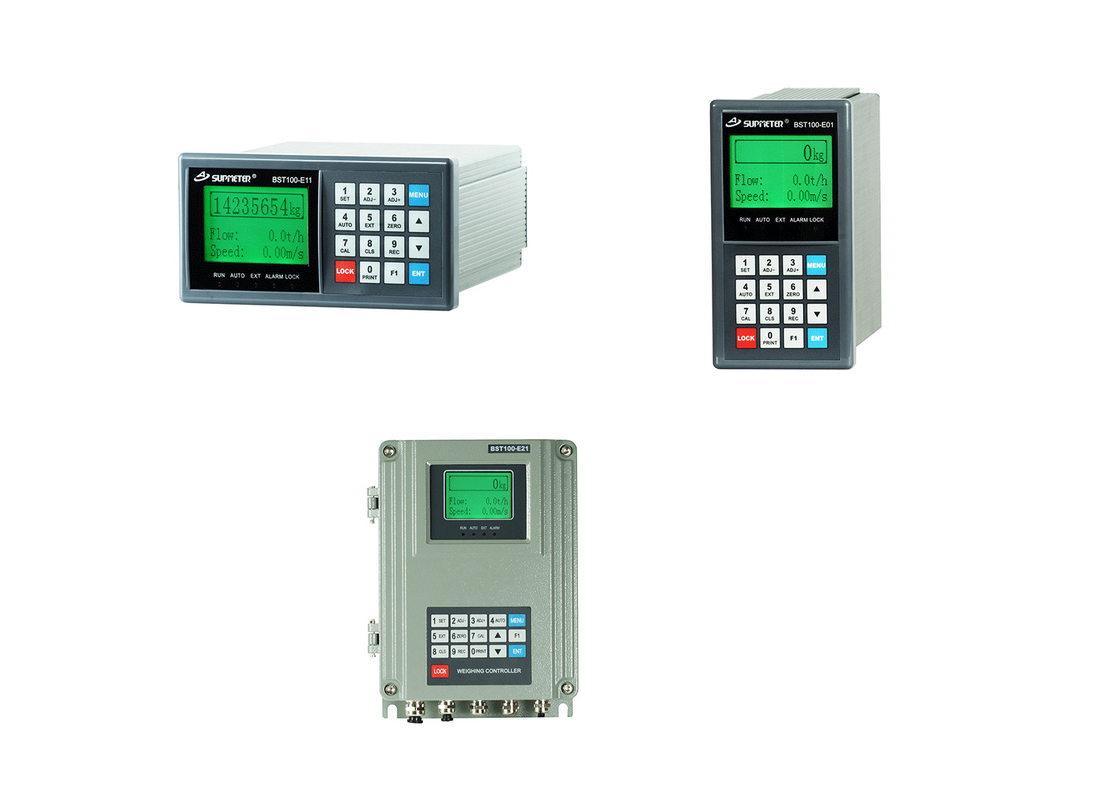

Differences between BST100-E11D/E01D/E21D:
1: Different install way:
BST100-E01D and BST100-E11D are cabinet mount mode;
BST100-E21D is Wall mount mode
2. The Prices are different:
BST100-E01D and E11D are with same price; BST100-E21D with different price. For details, please contact us.
