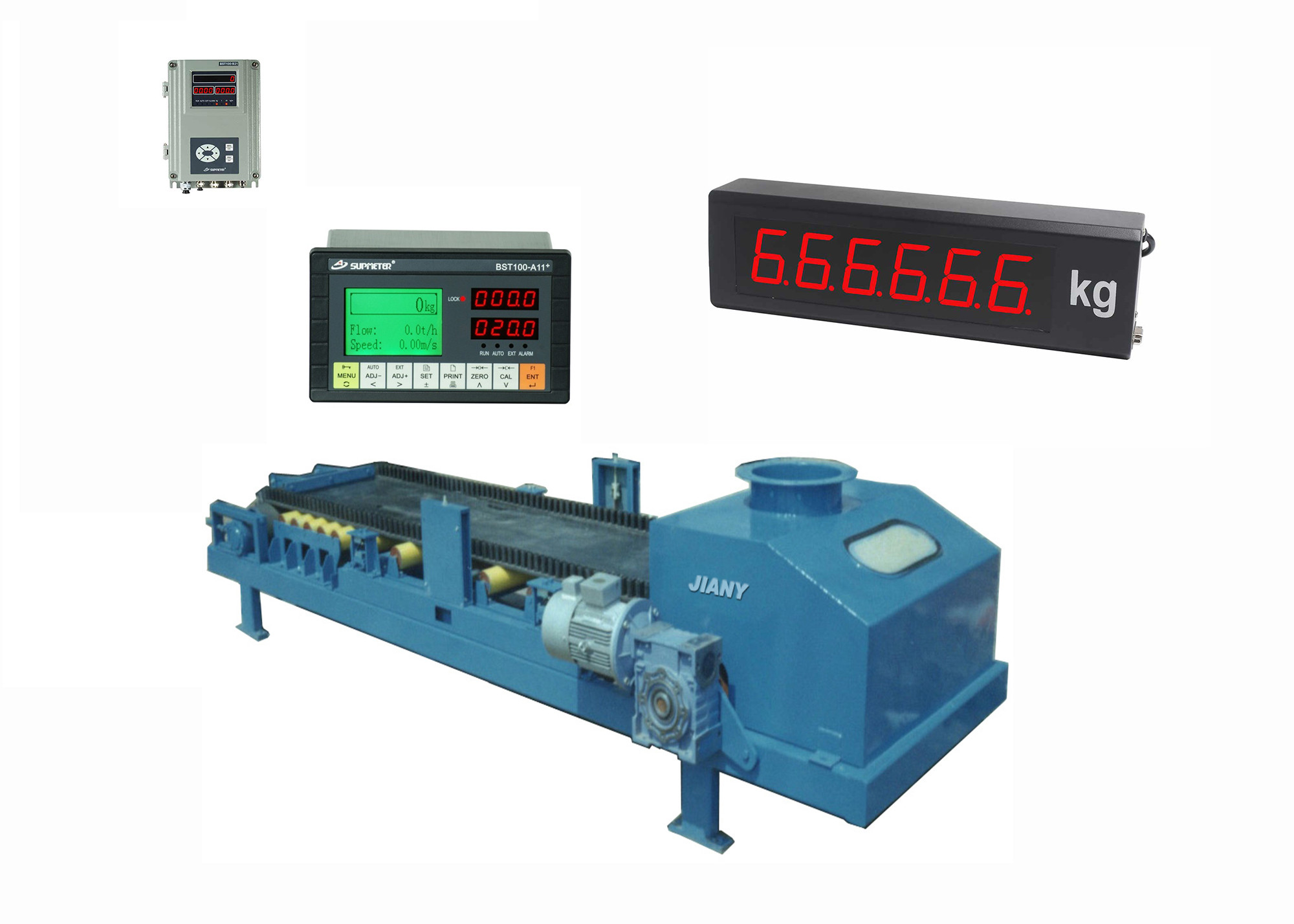

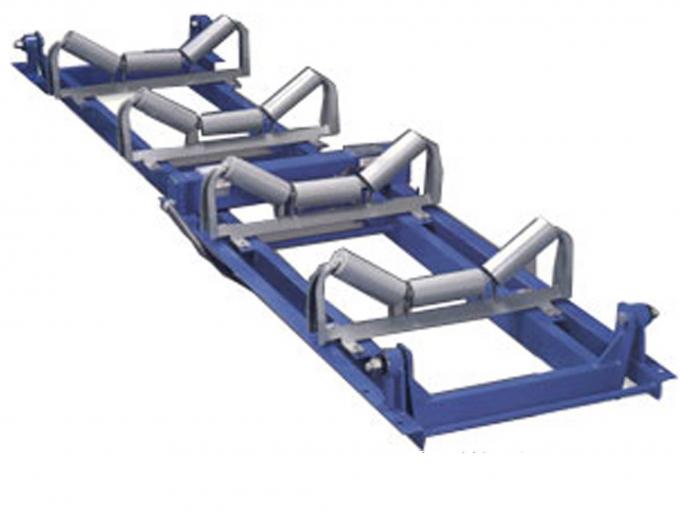

Rs232 Or Rs485 Communication Belt Scale Weigh Feeder Controller With Zero Calibration



Technical Specification

  • Power Supply: AC220V±15%, 50/60Hz, Max. 15W.
  • Loadcell Excitation Voltage/Current: DC10V/250mA.
  • 8 Loadcells[350Ω] connectable.
  • Weighing Signal Input Range: 0~25mV.
  • Speed Sensor Excitation Voltage/Current: DC12V/100mA.
  • Speed Signal Input Range: 0.5~3000Hz.
  • 3 Normally Open Switch Inputs [DI].
  • 4 Normally Open Relay Outputs [DO]: AC250V/DC24V, 1A.
  • 1 ‘Totalized Weight’ Pulse Output [PO]: DC5~24V, 100mA.
  • 2 ‘PID Control’ Analog Output [AO]: 4~20mA, 0.05%FS.
  • 1 ‘Flow Set’ Analog Input [AI]: 4~20mA, 0.05%FS.
  • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet.
  • COM2: RS232.
  • Connect Host IPC, Remote Display, Printer&Wireless Module.
  • Outline Size [W×H×D]: 164 × 82 × 188 mm.
  • Panel Cut-out Size [W×H]: 153 × 77 mm.
  • Operating Temperature: -25℃~+45℃.
  • Protection Level of Front Panel: IP65.
  • Accuracy Grade: 0.5.
  • Accuracy of Flow Control: 0.5%~1.0%.



Main Features
  •  EMC design with high anti-jam for industrial environment.
  •  32-bit ARM CPU with 72MHz clock & high arithmetic speed.
  •  128×64 LCD display screen with 7 background colors.
  •  4+4 Red LED digital tubes for digit display.
  •  24-bit Σ-△ADC with internal resolution 1/1,000,000.
  •  High sampling frequency 400Hz.
  •  Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  •  Zero Calibration & Auto Zero Tracking.
  •  Span Calibration & Segmenting Correction.
  •  Speed Calibration & Belt Length Calibration.
  •  The feeder and belt weigher can be controlled by DI&DO.
  •  Quick and steady PID ration feeding control.
  •  Queryable Records per shift/day/month of a year.
  •  Definable DI/DOAO/COM[Communication Port].











Rs232 Or Rs485 Communication Belt Scale Controller With Zero Calibration 0





Model Panel-mounting Installation

Rs232 Or Rs485 Communication Belt Scale Controller With Zero Calibration 1







Model Panel-mounting Terminal

Rs232 Or Rs485 Communication Belt Scale Controller With Zero Calibration 2





Ration Flow Auto-Feeding System:

Rs232 Or Rs485 Communication Belt Scale Controller With Zero Calibration 3



Display Interfaces

The Numeric Display 1 displays Totalized Weight value and the Numeric Display 2-3 displays the following data:

NO. Display iterms Sign Range
6 Totalized Weight of Current Batch P= 0~999999
7 AD Value Ad= 0~65535
8 Zero Value Zr= 0~60000
9~11 DI State dI1-/dI2-/dI3- -oFF/-on-
12~15 DO State do1-/do2-/do3-/do4- -oFF/-on-
16 AI Signal AI1= 4.00~20.00mA
17~19 AO Signal Ao1=/Ao2=/Ao3= 4.00~20.00mA
20 Totalized Weight High Speed Pulse HP 0~999999 Pulse
21 Totalized Weight Low Speed Pulse LP 0~999999 Pulse
22 Date 20YY.MM.DD Year. Month. Day
23 Time HH.MM.SS-W Hour. Minute. Second-Week
24 Totalized Weight of Current Shift t= 0~99999.9t
