Small Digital Weighing Controller Connect Host IPC Display And Printer Ration Belt

Warning: Illegal string offset 'layout' in /data/www/trade/tradeweb/protected/components/SeoHtml.php on line 544 Good quality Batch Weighing Controller for sales
Warning: Illegal string offset 'layout' in /data/www/trade/tradeweb/protected/components/SeoHtml.php on line 544 Good quality Batch Weighing Controller for sales
I'm Online Chat Now

Small Digital Weighing Controller Connect Host IPC Display And Printer Ration Belt

China Small Digital Weighing Controller Connect Host IPC Display And Printer Ration Belt supplier
Small Digital Weighing Controller Connect Host IPC Display And Printer Ration Belt supplier Small Digital Weighing Controller Connect Host IPC Display And Printer Ration Belt supplier

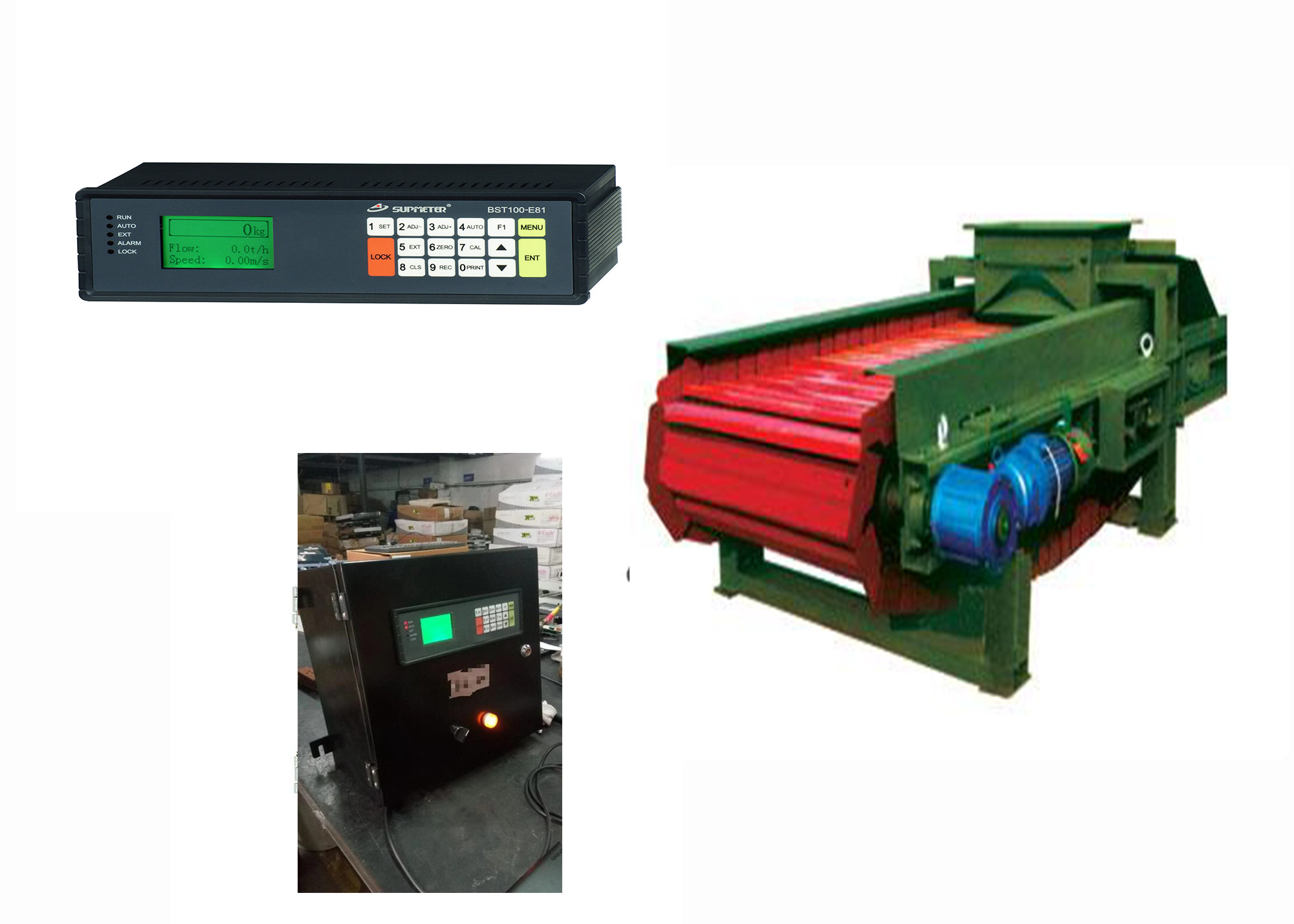

Large Image :  Small Digital Weighing Controller Connect Host IPC Display And Printer Ration Belt

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST100-E81

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Power Supplier: DC24V DI: 3
DO: 4 Material: Plastic
AO: 2 Color: Black
Name: Small Digital Weighing Controller

Ration Belt Weighfeeder Controller Belt Scale Controller With Weight Totalizing



  • Operating Specification
  • Operating Voltage: DC24±20%.
  • Max. Power Consumption: 10W.
  • Outline Size: 288×95×189mm [W×H×D].
  • Panel Cut-out Size: 281×88mm [W×H].
  • Operating Temperature: -25℃ to +45℃.
  • Storage Temperature: -30℃ to +60℃.
  • Relative Humidity: Max. 85%RH.
  • Protection Level of Front Panel: IP65.
  • Weight: Approx. 1.4kg.



Small Digital Weighing Controller Connect Host IPC Display And Printer Ration Belt

 Technical Specification

  • Executing Standard
  • CMC GB/T 7724-2008PRC National Standard.

² OMIL R50:1997International Recommendation.

² Accuracy Grade: 0.5.

² Accuracy of Flow Control: 0.5%~1.0%.

  • Display
  • 128×64 LCD display screen with 7 background colors for English display.
  • Display Refreshing Time: Setting Range 0.1~2.0s.
  • Kaypad
  • 16-key English keypad.
  • Menu&Shortcut operation with key tone.
  • Loadcell Interface
  • Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].
  • Signal Input Range: 0~25mV.
  • ∑-△ADC: 24-bit, 100,000 internal code used.
  • Sampling Frequency: 200Hz.
  • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  • Gain Drift: ±5ppm/℃.
  • Non-linearity: 0.005%FS.
  • Speed Sensor Interface
  • Output Voltage/Max. Current: DC12V/100mA.
  • Speed Pulse Input Range: 0.5~3000Hz.
  • Switch Signal Interface
  • 3 Normally Open Switch Inputs [DI].
  • 4 Normally Open Relay Switch Outputs [DO]: AC250V/DC24V, 1A.
  • 1 ‘Totalized Weight High-speed Pulse’ Output [PO]: 100mA, DC5~24V; Weight per Pulse and Pulse Width can be preset.
  • Analog Signal Interface
  • Max.3 Definable ‘Flow/Control Current /…’ Analog Signal Outputs [AO]: 4~20mA, Non-linearity: 0.05%FS; AO3 is optional.
  • 1 Optional ‘Flow Setpoint’ Analog Signal Input [AI]: 4~20mA, Non-linearity: 0.05%FS.
  • Digital Communication Interface
  • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet modules.
  • COM2: RS232.
  • Connectable: IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
  • Report Print
  • Weight Records per shift/day/month of a year can be queried and printed.
  •

      Pictures
Small Digital Weighing Controller Connect Host IPC Display And Printer Ration Belt


     Operation Interface Diagram
Small Digital Weighing Controller Connect Host IPC Display And Printer Ration Belt


       Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.


Menu Operation
Key NameDescription

【MENU】
(【ESC】)

Enter Main Menu.

Exit.

【ENT】Enter/Save.
【▲】

Cursor shifts up or left.

Display the previous interface or option.

【▼】

Cursor shifts down or right.

Display the next interface or option.

【0~9】Digit Input.
Quick Operation
【LOCK】
  • Key-locking.
  • Key-unlocking.
【F1】Return to the initial display interface.
【SET】Flow Set Value Setting.
【ADJ-】Control Current -1mA.
【ADJ+】Control Current +1mA.
【AUTO】‘Manual/Auto’ Control Mode Selection.
【EXT】‘Internal/External’ Flow Set Mode Selection.
【ZERO】Zero Calibration.
【CAL】Dynamic Span Calibration.
【CLS】Clear Screen: Clear display value of Totalized Weight.
【REC】Query and print Weight Record.
【PRINT】Print.



       State Indication

LED LampDescription
[RUN]

ON: Weighing state.
OFF: Stopping state.

[AUTO]

Feeding control mode:
ON: Auto [PID].
OFF: Manual.

[EXT]

Flow Set Mode:
ON: External [AI: 4~20mA].
OFF: Internal.

[ALARM]Alarm.
[LOCK]

ON: Key-locked.
OFF: Key-unlocked.


       Installation
Small Digital Weighing Controller Connect Host IPC Display And Printer Ration Belt
        Operation Procedure
Small Digital Weighing Controller Connect Host IPC Display And Printer Ration Belt

        Ration Flow Auto-Feeding System
Small Digital Weighing Controller Connect Host IPC Display And Printer Ration Belt
