Payment & Shipping Terms:
|IP Grade:||IP65||Sampling Frequncy:||400Hz|
|Operating Temperature:||-25℃～+45℃||Power Supply:||AC220V±15%, 50/60Hz|

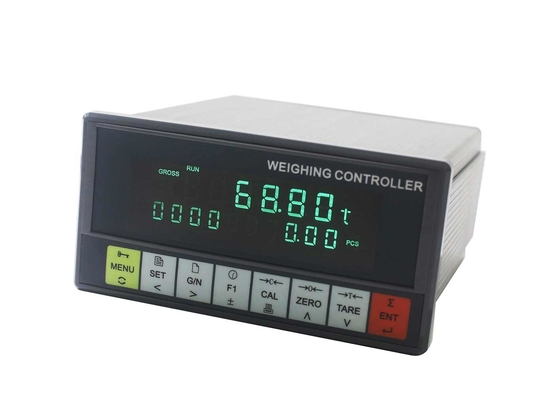

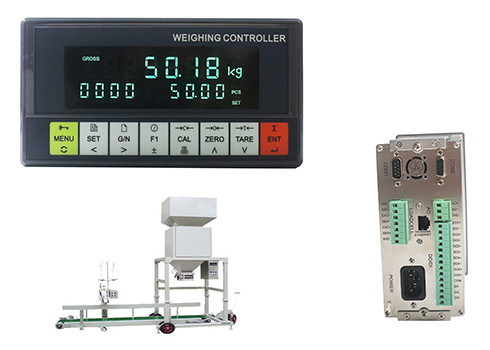

Weighing Bagging Controller For Packing Machine With Ethernet TCP/IP
What does BST106-H16[A] used for?
What Features does BST106-H16[A] have?
Model Panel-mounting User Interface:
|[GROSS]||Gross Weight display.|
|[NET]||Net Weight display.|
|[◣◢]||Weight is stable: Weight Variance per  ‘Stability Time’ is in  ‘Stability Range’.|
|[→0←]||The present Weight display value is in the range of ‘Zero Display Limit’.|
|[ PCS]||Batch Count display.|
|[TOT]||Totalized Weight display.|
Target Weight display.
Parameter setting state.
ON: Running state.
OFF: Stop or Calibrating state.
|[ZERO]||Net Weight ≤ Non-load Zero Range.|
|[NZ]||It’s allowed to do Manual/Auto Zero.|
|[FILL]||Stop state: Weight value is increasing.|
|Running state: It’s in the feeding process.|
|[COMP]||It’s doing comparation between Feeding Weight and Target Weight.|
|[DEV]||Up/Low Tolerance Alarm.|
|[FALL]||ON:‘Auto Correct Inflight’ function is open .|
ON: Bag-clamping state.
OFF: Bag-releasing state.
|[DISC]||Stop state: Weight value is reducing.|
|Running state of Bucket Scale: It’s in the dumping process.|
|[HI]||Gross Weight Upper Limit Alarm.|
Model Panel-mounting Installation
Front Panel Size
Box Body Size
Panel Cut-out Size
1. Sample is Available?
Yes. This product support free sample. As long as you can bear the freight charge.
2. What detailed information do I need to provide if I want to place an order?
We need to know the following information: accuracy, Quantity, special requirements if you have, etc.
3. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
4. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union,etc.
5.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
6. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
7. How long is the warranty period?
The warranty period for our products is 12 (twelve) months.
If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.
(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
