PID Control Analog Belt Scale Controller Weighing Indicator With 3 Di and 4 Do

Good quality Batch Weighing Controller for sales
Good quality Batch Weighing Controller for sales
I'm Online Chat Now

PID Control Analog Belt Scale Controller Weighing Indicator With 3 Di and 4 Do

China PID Control Analog Belt Scale Controller Weighing Indicator With 3 Di and 4 Do supplier
PID Control Analog Belt Scale Controller Weighing Indicator With 3 Di and 4 Do supplier PID Control Analog Belt Scale Controller Weighing Indicator With 3 Di and 4 Do supplier

Large Image :  PID Control Analog Belt Scale Controller Weighing Indicator With 3 Di and 4 Do

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST100-E21

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 238-430usd/pcs
Packaging Details: 1pcs/box
Delivery Time: 3-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Installation: Panel Mounted Power: AC220V
DI: 3 AO: 4-20Ma

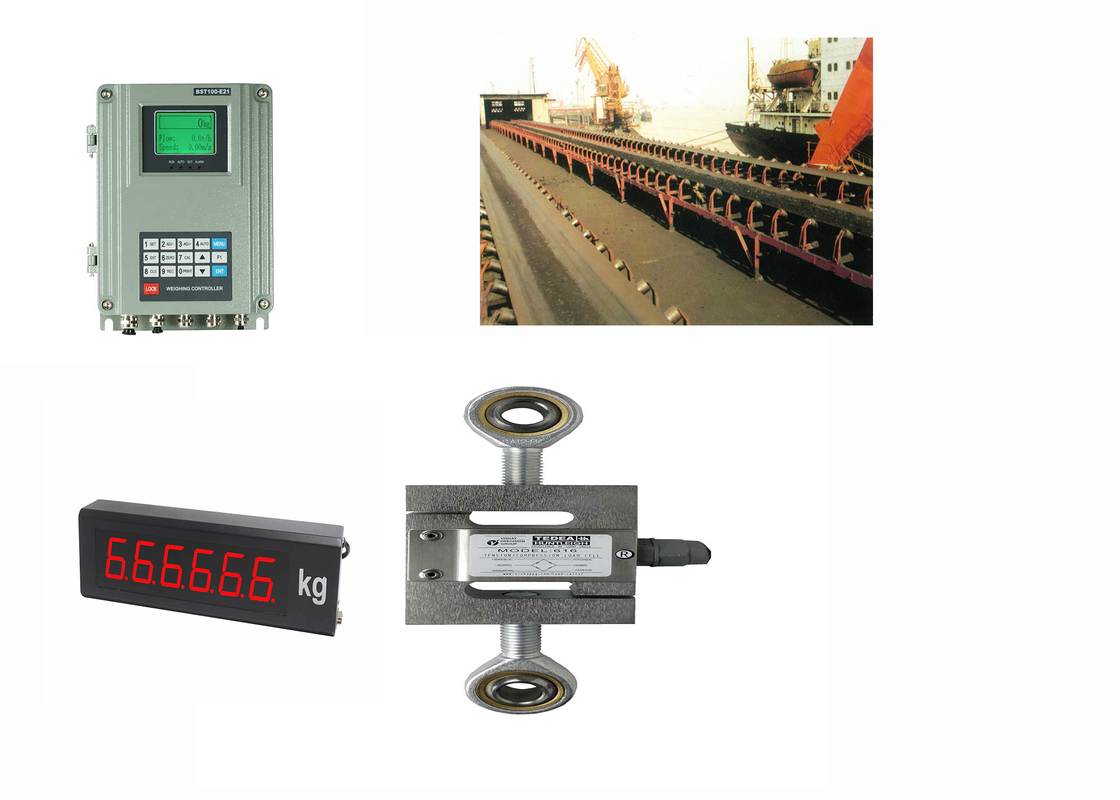

Loadcell Connected PID Control Analog Belt Scale Weighing Indicator With 3 Di and 4 Do



Main Features:







Main Menu Second Menu Description
F1 Setting 1 Scale[Basic] Basic scale parameters setting.
  1+Scale[Extra] Extra scale parameters setting.
  2 Control[Basic] Basic feeding control parameters setting.
  2+Control[Extra] Extra feeding and batching control parameters setting.
  3 Flow Flow parameters setting.
  4 Speed Speed parameters setting.
  5 Load Load parameters setting.
  6 Save/Print Weight record parameters setting.
  7 Comm. Port Communication port parameters setting.
  8 I/O Input&output parameters setting.
  9 Display Display and operation interface parameters setting.
  10 Date/Time Date/Time parameters setting.
F2 Calibration 1 Zero Cal. Zero Calibration without loading for correcting Zero Value.
  2 Span Cal. Dyn. Dynamic Span Calibration with loading measured materials or Poise Weights for correcting Span Coefficient.
  3 Span Cal.Stat1 Static Span Calibration with a measured chain weight as a continuous and steady load on the running belt weigher for correcting Span Coefficient.
  4 Span Cal.Stat2 Static Span Calibration with a measured Hanging Weight as a steady load on the running belt weigher for correcting Span Coefficient.
  5 Span Cor. Seg. Segmenting Span Correction. After doing Dynamic or Static Span Calibration, further corrections for 3 [AD Value: 0~60000] linear segments are optional for correcting Correction Coefficient 1~3.
  6 Speed Cal.

Speed Coefficient Calibration.

Keep the belt weigher running at a constant speed. After the running time of a revolution being measured with using a stopwatch, do this operation for correcting Speed Coefficient.

  7 Length Cal.

Belt Length Calibration.

Keep the belt weigher running at a constant speed. After the running time of a revolution being measured with using a stopwatch, do this operation for correcting Belt Length.








Suitable for Ration Belt Weighfeeder with Ration Flow Feeding & Ration Weight Batch Control.

EMC design with high anti-jamming capability, suitable for industrial environment.

32-bit ARM CPU with 72MHz & higher arithmetic speed.

128×64 LCD display screen with 7 background colors for English display.

16-key English keypad.

Menu&Shortcut mode operation with key tone.

24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.

Broad-range speed pulse input circuit.

Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.

Max. Connection Quantity: 8 Loadcells (350Ω).

Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing functions available.

Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.

One optional 'Flow Setpoint' analog signal input [AI: 4~20mA].

Max.3 definable 'Flow/Control Current /...' analog signal outputs [AO: 4~20mA].

Quick and steady PID ration feeding control.

3 Definable normally open switch inputs [DI] and 4 definable normally open relay switch outputs [DO].

The feeder and belt weigher can be started and stopped by DI&DO signal.

1 'Totalized Weight High-speed Pulse' output [PO].

2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.

Weight Records per shift/day/month of a year can be queried and printed.

With the multitasking mode, the weighing&control process will not be interrupted by parameter setting and the other operations.

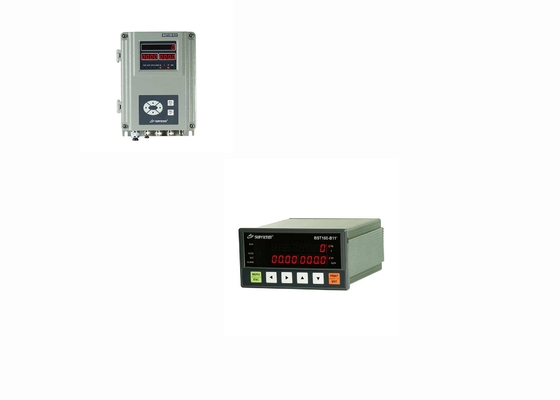

Model Horizontal Panel-mounting Operation Interface


Model Wall-mounting Installation

PID Control Analog Belt Scale Controller Weighing Indicator With 3 Di and 4 Do










Main Menu

Second Menu Description
F3 Weight Record   Query and print Weight Records.
F4 Data Clearing 1 Clear Screen

Clear Totalized Weight and Totalized Weight Pulse Count.

But Totalized Weight of Current Shift will not be cleared, so this operation has no effect on recording of weight per shift.

  2 Clear Weight

Clear Totalized Weight, Totalized Weight Pulse Count and Totalized Weight of Current Shift.

The cleared value of Totalized Weight of Current Shift will not be recorded.

  3 Clear Records

Clear History Records of Totalized Weight.

But Current Totalized Weight, Totalized Weight Pulse Count and Totalized Weight of Current Shift will not be cleared.

F5 Security 1 Auto-locking If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will lock the keypad and return to ‘Main Display Interface’ automatically.
  2 Key-locking Locking keypad.
  3 Key-unlocking Unlocking keypad.
  4 Password Set Exfactory Password: 000001.
  5 RAM Reset Restore to factory defaults.
F6 Factory Adj.   Special for manufacturer.
F7 Product Info. Only for query.
  1 Version No. Version No.
  2 Serial No. Serial No.
  3 Exfactory Date Exfactory Date.
  4 Audit Counter Audit Trail Counter [0~99999999] for Scale parameter’s modification.
  5 Auth. Code Authorization Code.



Ration Flow Auto-Feeding System
