Long Life Electronic Belt Weigh Feeder Controller With Ration Flow Feeding

China Long Life Electronic Belt Weigh Feeder Controller With Ration Flow Feeding supplier
Long Life Electronic Belt Weigh Feeder Controller With Ration Flow Feeding supplier Long Life Electronic Belt Weigh Feeder Controller With Ration Flow Feeding supplier

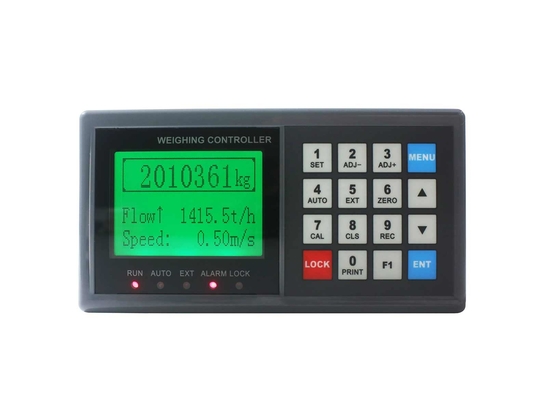

Large Image :  Long Life Electronic Belt Weigh Feeder Controller With Ration Flow Feeding

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST100-E11

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3-30 days
Payment Terms: T/T, Western Union,Alibaba.
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Power Supply: AC220V Connect Loadcell: 8 Loadcell
Normally Open Switch Input: 3DI Normally Open Relay Output: 4DO
Accuracy Of Flow Control: 0.5%~1.0% Outline Size: 164*86*193mm



Electronic Belt Weigh Feeder Controller With Ration Flow Feeding

      Technical Specification

  • Display
  • 128×64 LCD display screen with 7 background colors for English display.
  • Display Refreshing Time: Setting Range 0.1~2.0s.
  • Keypad
  • 16-key English keypad.
  • Menu&Shortcut operation with key tone.
  • Loadcell Interface
  • Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].
  • Signal Input Range: 0~25mV.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • Sampling Frequency: 400Hz.
  • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  • Gain Drift: ±5ppm/℃.
  • Non-linearity: 0.005%FS.
  • Speed Sensor Interface
  • Output Voltage/Max. Current: DC12V/100mA.
  • Speed Pulse Input Range: 0.5~3000Hz.
  • Switch Signal Interface
  • 3 Normally Open Switch Inputs [DI].
  • 4 Normally Open Relay Switch Outputs [DO]: AC250V/DC24V, 1A.
  • 1 ‘Totalized Weight High-speed Pulse’ Output [PO]: 100mA, DC5~24V; Weight per Pulse and Pulse Width can be preset.
  • Analog Signal Interface
  • Max.3 Definable ‘Flow/Control Current /…’ Analog Signal Outputs [AO]: 4~20mA, Non-linearity: 0.05%FS; AO3 is optional.
  • 1 Optional ‘Flow Setpoint’ Analog Signal Input [AI]: 4~20mA, Non-linearity: 0.05%FS.

  • Digital Communication Interface
  • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet modules.
  • COM2: RS232.
  • Connectable: IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
  • Report Print
  • Weight Records per shift/day/month of a year can be queried and printed.
  • Operating Specification
  • Operating Voltage: AC220V±15%, 50/60Hz.
  • Max. Power Consumption: 15W.
  • Outline Size
  • Model Horizontal Panel-mounting: 164×86×193mm [W×H×D].
  • Model Vertical Panel-mounting: 86×164×193mm [W×H×D].
  • Model Wall-mounting: 202×305×90mm [W×H×D].
  • Panel Cut-out Size
  • Model Horizontal Panel-mounting: 153×77mm [W×H].
  • Model Vertical Panel-mounting: 77×153mm [W×H].
  • Operating Temperature: -25℃ to +45℃.
  • Storage Temperature: -30℃ to +60℃.
  • Relative Humidity: Max. 85%RH.
  • Protection Level
  • Front Panel of Model Panel-mounting: IP65.
  • Model Wall-mounting: IP65.

Keypad Operation



Menu Operation
Key Name Description

【MENU】

(【ESC】)

Enter Main Menu.

Exit.

【ENT】 Enter/Save.
【▲】

Cursor shifts up or left.

Display the previous interface or option.

【▼】

Cursor shifts down or right.

Display the next interface or option.

【0~9】 Digit Input.
Quick Operation
【LOCK】
  • Key-locking.
  • Key-unlocking.
【F1】 Return to the initial display interface.
【SET】 Flow Set Value Setting.
【ADJ-】 Control Current -1mA.
【ADJ+】 Control Current +1mA.
【AUTO】 ‘Manual/Auto’ Control Mode Selection.
【EXT】 ‘Internal/External’ Flow Set Mode Selection.
【ZERO】 Zero Calibration.
【CAL】 Dynamic Span Calibration.
【CLS】 Clear Screen: Clear display value of Totalized Weight.
【REC】 Query and print Weight Record.
【PRINT】 Print.

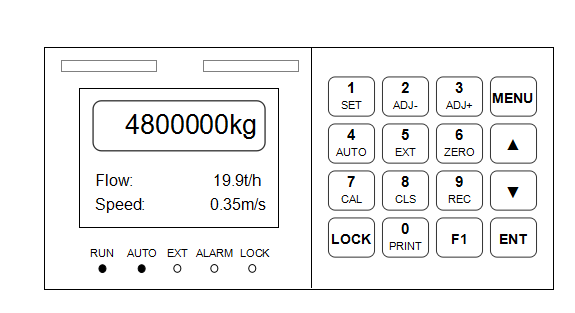

 Model Horizontal Panel-mounting Operation Interface

Long Life Electronic Belt Weigh Feeder Controller With Ration Flow Feeding

Model Horizontal Panel-mounting Terminal

Long Life Electronic Belt Weigh Feeder Controller With Ration Flow Feeding

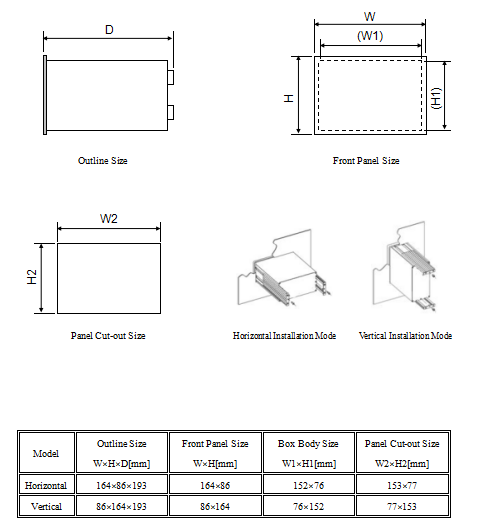

Model Panel-mounting Installation

Long Life Electronic Belt Weigh Feeder Controller With Ration Flow Feeding

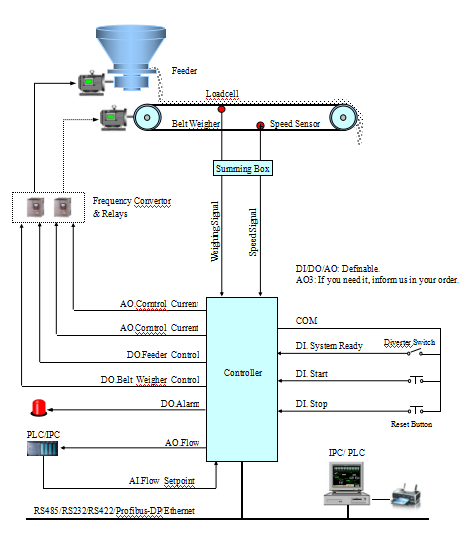

Ration Flow Auto-Feeding System

Long Life Electronic Belt Weigh Feeder Controller With Ration Flow Feeding
