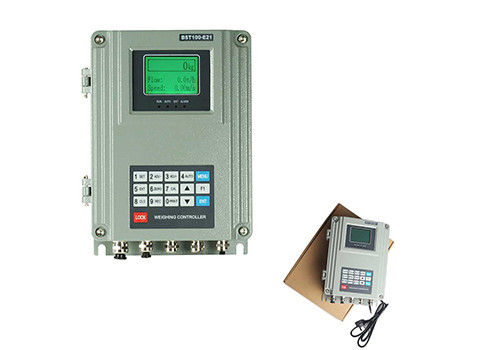

LCD Display Belt Scale Controller Loss - In - Weight WeighFeeder Controller

China LCD Display Belt Scale Controller Loss - In - Weight WeighFeeder Controller supplier
LCD Display Belt Scale Controller Loss - In - Weight WeighFeeder Controller supplier LCD Display Belt Scale Controller Loss - In - Weight WeighFeeder Controller supplier

Large Image :  LCD Display Belt Scale Controller Loss - In - Weight WeighFeeder Controller

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST100-E21

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 270-490usd/pcs

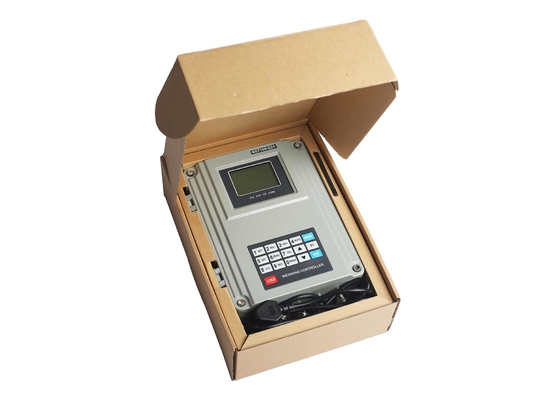

Packaging Details: 1pcs/box
Delivery Time: 3-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Model Number: BST100-E21 Product Name: Belt Weighfeeder Controller
Packing: 1pcs/box MOQ: 1pcs



LCD Display And Dust-proof Loss-in-weight WeighFeeder Controller for belt scale



Technical Specifications:

  • Power Supply: DC24V±20%, Max. 10W.
  • Loadcell Excitation Voltage/Current: DC10V/250mA.
  • 8 Loadcells[350Ω] connectable.
  • Weighing Signal Input Range: 0~25mV.
  • Speed Sensor Excitation Voltage/Current: DC12V/100mA.
  • Speed Signal Input Range: 0.5~3000Hz.
  • 3 Normally Open Switch Inputs [DI].
  • 4 Normally Open Relay Outputs [DO]: AC250V/DC24V, 1A.
  • 1 ‘Totalized Weight’ Pulse Output [PO]: DC5~24V, 100mA.
  • 2 ‘PID Control’ Analog Output [AO]: 4~20mA, 0.05%FS.
  • 1 ‘Flow Set’ Analog Input [AI]: 4~20mA, 0.05%FS.
  • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet.
  • COM2: RS232.
  • Connect Host IPC, Remote Display, Printer&Wireless Module.
  • Outline Size [W×H×D]: 288 × 95 × 189 mm.
  • Panel Cut-out Size [W×H]: 281 × 88 mm.
  • Operating Temperature: -25℃~+45℃.
  • Protection Level of Front Panel: IP65.
  • Accuracy Grade: 0.5.
  • Accuracy of Flow Control: 0.5%~1.0%.


LCD Display Belt Scale Controller Loss - In - Weight WeighFeeder Controller
LCD Display Belt Scale Controller Loss - In - Weight WeighFeeder Controller
LCD Display Belt Scale Controller Loss - In - Weight WeighFeeder Controller
LCD Display Belt Scale Controller Loss - In - Weight WeighFeeder Controller
Model Wall-mounting Operation Interface
High Quality Large Capacity Dust-proof Belt Conveyor Control for Belt Conveyor System

Model Wall-mounting Installation

High Quality Large Capacity Dust-proof Belt Conveyor Control for Belt Conveyor System

Keypad Operation:

Menu Operation
Key Name Description

【MENU】

(【ESC】)

Enter Main Menu.

Exit.

【ENT】 Enter/Save.
【▲】

Cursor shifts up or left.

Display the previous interface or option.

【▼】

Cursor shifts down or right.

Display the next interface or option.

【0~9】 Digit Input.
Quick Operation
【LOCK】
  • Key-locking.
  • Key-unlocking.
【F1】 Return to the initial display interface.
【SET】 Flow Set Value Setting.
【ADJ-】 Control Current -1mA.
【ADJ+】 Control Current +1mA.
【AUTO】 ‘Manual/Auto’ Control Mode Selection.
【EXT】 ‘Internal/External’ Flow Set Mode Selection.
【ZERO】 Zero Calibration.
【CAL】 Dynamic Span Calibration.
【CLS】 Clear Screen: Clear display value of Totalized Weight.
【REC】 Query and print Weight Record.
【PRINT】 Print.
