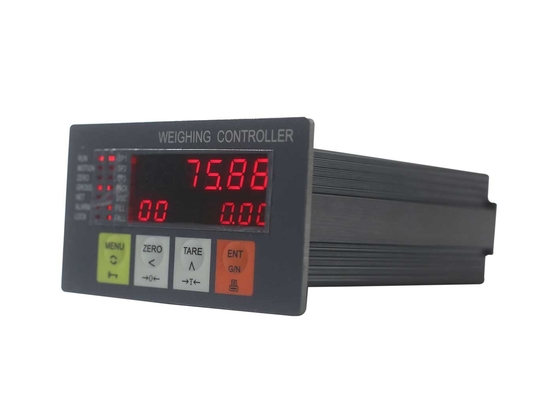

Red LED Digital Weighing Packing Controller, Bagging Control Unit For Bagging Machine
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1pcs|
|Delivery Time:||1~10 working days|
|Payment Terms:||T/T, Western Union, L/C, D/A, D/P|
|Supply Ability:||1000pcs per month|
|Verification Accuracy:||0.03%||Static Weighing Accuracy:||0.2%~0.5%|
|Packing Accuracy:||0.2%~0.5%||IP Grade:||IP65|
electrical weighing system

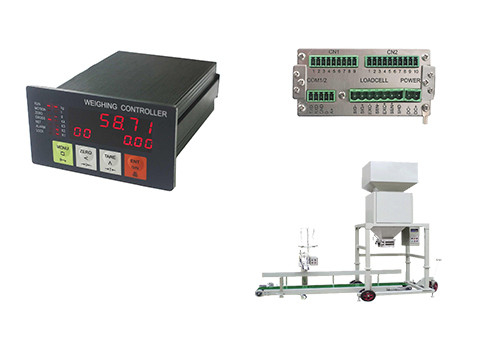

Red Color LED Digital Weighing Packing Controller, Bagging Control Unit For Bagging Machine
Suitable for Loss-in-weight Ration Packing Scale with Auto Bag-releasing or Manual Bag-releasing and Loss-in-weight Bulk Material Ration Feeding Scale.
1.BST106-B66[D] Suitable for Loss-in-weight Ration Packing Scale with Auto Bag-releasing or Manual Bag-releasing and Loss-in-weight Bulk Material Ration Feeding Scale.
2. EMC design with high anti-jamming capability, suitable for industrial environment.
3. 32-bit ARM CPU with 48MHz clock & high arithmetic speed.
4. 6+8 Red LED digital tubes for English character and digit display.
5. English keypad for Menu&Shortcut mode operation with key tone.
6. 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 400Hz.
7. Special anti-vibration digital filtering algorithm for ensuring the weighing stability and occuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
|Display||6+8 Red LED digital tubes for English character and digit display|
|Weight Display Range||-99,999~+999,999|
|Scale Capacity||Setting Range 1~999,999|
|Scale Division||Optional 1, 2, 5, 10, 20, 50, 100, 200, 500|
|Weight Unit||Optional kg, t, g, none|
|Loadcell Interface||Excitation Voltage/Max. Current||DC9V/120mA [4-350Ω loadcells]|
|Signal Input Range||0~22.5mV|
|Output Sensitivity of Loadcell||1.0~2.5mV/V|
|Switch&Analog Signal Interface||DI||6 Normally Open Switch Inputs|
|DO||8 Normally Open Transistor Switch Outputs [DO]: DC24V, 250mA|
|Digital Communication Interface||COM1||RS232|
|Connectable||Host IPC/PLC and LED Remote Display|
System Diagram for APP1 Ration Packing Mode
System Diagram for APP2 Bulk Material Ration Feeding Mode
Enter Main Menu.
|【ENT】||Enter / Save / Clear Alarm.|
Cursor shifts left.
Display the previous option.
Cursor shifts left.
Display the next option.
Display the next interface or option.
Digit input: +1 ( 0~9 loop).
Display the previous interface or option.
Digit input: -1 ( 0~9 loop).
|Recipe parameters setting.|
|Gross Weight / Net Weight display switch.|
1. Sample is Available?
Yes. This product support free sample (Standard one). As long as you can bear the freight charge.
2. What detailed information do I need to provide if I want to place an order?
We need to know the following information: accuracy, Quantity, special requirements if you have, etc.
3. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
4. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union,etc.
5.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
6. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
7. How long is the warranty period?
The warranty period for our products is 12 (twelve) months.
If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.
(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
