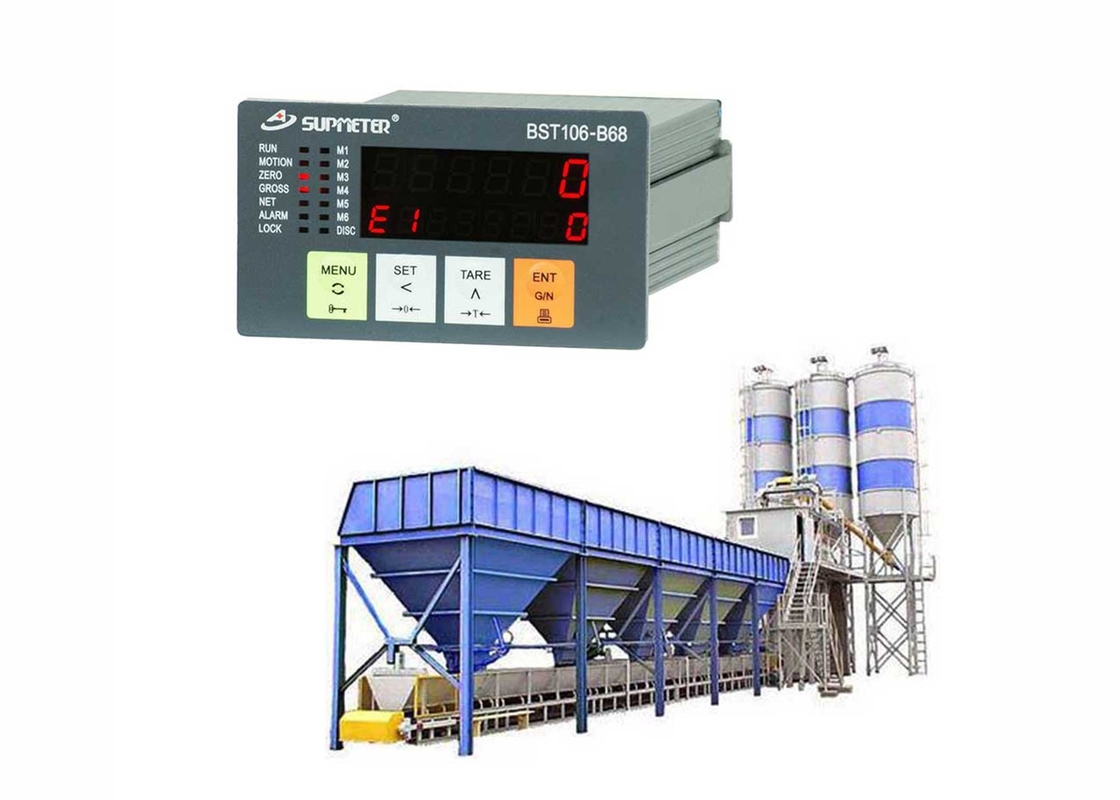

 Batching Weighing Controller Weight Display Batching Weighing Indicator BST106-B68(U)





Main Applications

  • 4-Material Ration Batching Scale.

Main Features

  • EMC design with high anti-jam for industrial environment.
  • DC24V power input with reverse polarity protection.
  • 32-bit ARM CPU with 48MHz clock & high arithmetic speed.
  • 6+8 Red LED digital tubes for English&digit display.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • High sampling frequency 400Hz.
  • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  • Auto Zero Tracking.
  • Fall Value Auto Correction.
  • Auto Re-feed for Negative Deviation Alarm.
  • Target Batch Count Control.
  • Auto Pause for Gross Weight Upper Limit & Deviation Alarm.
  • ‘Manual Pause’ Operation.
  • Batching Process Power-off Protection.
  • 2-speed[high/low] feeding control by DOs or AOs.
  • Definable AO/COM[Communication Port].
  • Recipe Number: 1.

Weight Display Batch Weighing Controller , Weighing Indicator Controller 0

Weight Display Batch Weighing Controller , Weighing Indicator Controller 1

Weight Display Batch Weighing Controller , Weighing Indicator Controller 2

DI/DO Function Definition

CN1 [DI]
No. Pin Signal Name Description
1 COM COM DI Common Terminal [DC-].
2 DI1 AUTO

Auto/Manual.

ON: Auto state.

OFF: Manual state / Emergency Stop.

3 DI2 START

Start / Clear Alarm.

In running process: Clear Alarm.

Pause state: Clear Alarm & Recover Running.

OFF→ON→OFF.

4 DI3 PAUSE

Manual Pause.

OFF→ON→OFF.

5 DI4 DUMP_I

Manual Dump.

1. Stop state:

ON: Manual Dump; OFF: Stop.

2. In the Auto-batching process

If [312] ‘Dumping Mode’ = ‘0. HAnd, it’s necessary to input the DI signal ‘Manual ‘Dump’ (OFF→ON→OFF) for triggering the dumping process.

6 DI5 STOP

Normal Stop [Last Batch].

OFF→ON→OFF: The batching process will stop automatically after the present batch finished.

7 DI6 SP3_I

Manual Dribble Re-feed.

Valid at Pause state with Mn’s Low Tolerance Alarm.

ON: Start Mn’s Dribble Feed.

OFF: Stop Mn’s Dribble Feed.





System Diagram for M1~M4 Ration Batching System
