Four Scale TFT - Touch Ration Batch Weighing Controller For Industrial Environment

Good quality Batch Weighing Controller for sales
Good quality Batch Weighing Controller for sales
I'm Online Chat Now

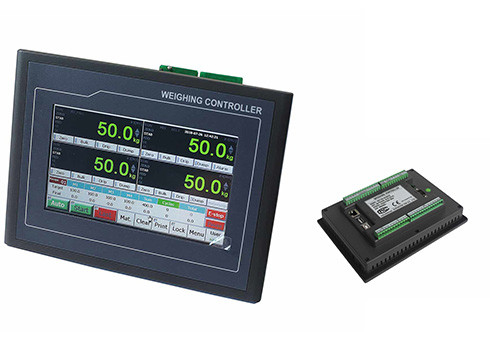

Four Scale TFT - Touch Ration Batch Weighing Controller For Industrial Environment

China Four Scale TFT - Touch Ration Batch Weighing Controller For Industrial Environment supplier
Four Scale TFT - Touch Ration Batch Weighing Controller For Industrial Environment supplier Four Scale TFT - Touch Ration Batch Weighing Controller For Industrial Environment supplier Four Scale TFT - Touch Ration Batch Weighing Controller For Industrial Environment supplier Four Scale TFT - Touch Ration Batch Weighing Controller For Industrial Environment supplier

Large Image :  Four Scale TFT - Touch Ration Batch Weighing Controller For Industrial Environment

Product Details:

Place of Origin: CHINA
Brand Name: Supmeter
Certification: CE
Model Number: BST106-M10[FB]

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 400USD PER PCS
Packaging Details: Carton Packing
Delivery Time: 3 WORKING DAYS
Payment Terms: T/T
Supply Ability: 1000PCS PER MONTH
Contact Now
Detailed Product Description
Material: Stell Power: DC24V
Loadcell: 16 Loadcells Com1: RS232
COM2: RS485



Four-Scale TFT-Touch Ration Batching Controller with 4-Material



Main Applications

  • Ration Batching Scale with 4-material.
  • Loss-in-weight Batching Scale with 4-material.

Main Features

  • EMC design with high anti-jam for industrial environment.
  • DC24V power input with reverse polarity protection.
  • Cortex-A8 CPU with 600MHz Clock, 128M Flash.
  • 7” [800×480] or 10.2” [1024×600] TFT touch panel.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • High sampling frequency 800Hz.
  • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  • Auto Zero Tracking.
  • Load Calibration and Loss Calibration.
  • Fall Value Auto Correction.
  • Auto Re-feed for negative deviation alarm.
  • Target Batch Count Control.
  • Auto Pause for Gross Weight Upper Limit & Deviation Alarm.
  • ‘Manual Pause’ Operation.
  • 2-speed[high/low] feeding control by DOs or AOs.
  • Definable DI/DO/AO/COM[Communication Port].
  • Recipe Number: 100.

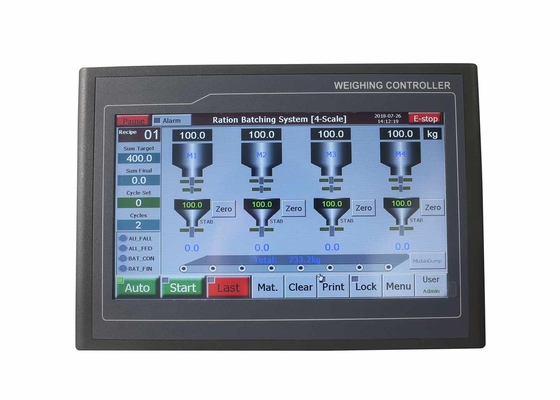

Main User Interfaces for 4-Scale [4-Material] Mode

Four Scale TFT - Touch Ration Batch Weighing Controller For Industrial Environment



Four Scale TFT - Touch Ration Batch Weighing Controller For Industrial Environment



Data Display & Quick Setting

Name Description Authorization
[NET] Real-time Weight / Material Mn’s Feeding Weight [Weight Unit].
[GROSS] Gross Weight.
[HI] Gross Weight Upper Limit Alarm.
[OL] Overload Alarm.
[Cycles] Batch Count.
[▲]/HI Up Tolerance Alarm.
[▼]/LO Low Tolerance Alarm.
[Lack] ‘Lack of Materials in Feeding Hopper’ Alarm.
[Timeout] ‘Material-supply Timeout’ Alarm.
[Total] Total Totalized Weight.

[RUN] Auto Running state.
[PAUSE] Pause state.
[ZERO] Gross Weight ≤ Non-load Zero Range.
[STAB] Weight is stable.
[FED] Material Mn Feeding Ended.
[AU_FALL] ‘Auto Correct Inflight’ Permission.
[ALL_FED] All Materials Feeding Ended.
[BAT_CON] ‘Batch Target Control’ is allowed. Refer to parameter [301] ‘Batch Target Control’ and [203] ‘Batch Count Target’.
[BAT_FIN] Batch Count Target Finished.
[MIX] The mixer is running.
[BELT] The mixing conveyor is running.

[Recipe] ‘Working Recipe No.’ Setting. All Users
Recipe Parameters Setting. Engineer
[Mn Target] Mn Target Weight.
[Mn Final] Mn Final Feeding Weight.
[Sum Target] The sum of the Target Weight of all the materials selected for batching.
[Sum Final] The sum of the Final Feeding Weight of all the materials selected for batching.
[Cycles Target] Batch Count Target.
[Cycles Final] Batch Count.
[Time] Date&Time.
[Working Mode] Refer to parameters [300]/[303]/[317]. Administrator
