High Precision Weighing Indicator Controller For Auto Reject Checkweigher

Good quality Batch Weighing Controller for sales
Good quality Batch Weighing Controller for sales
I'm Online Chat Now

High Precision Weighing Indicator Controller For Auto Reject Checkweigher

China High Precision Weighing Indicator Controller For Auto Reject Checkweigher supplier
High Precision Weighing Indicator Controller For Auto Reject Checkweigher supplier High Precision Weighing Indicator Controller For Auto Reject Checkweigher supplier

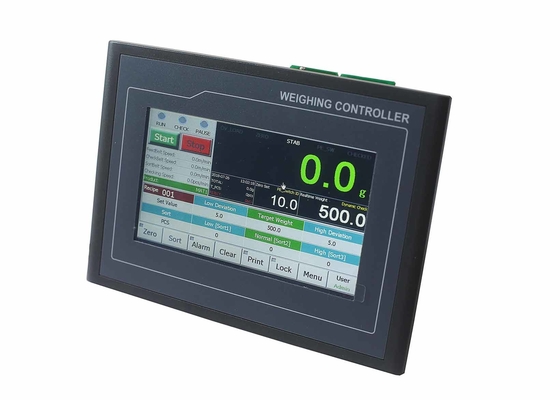

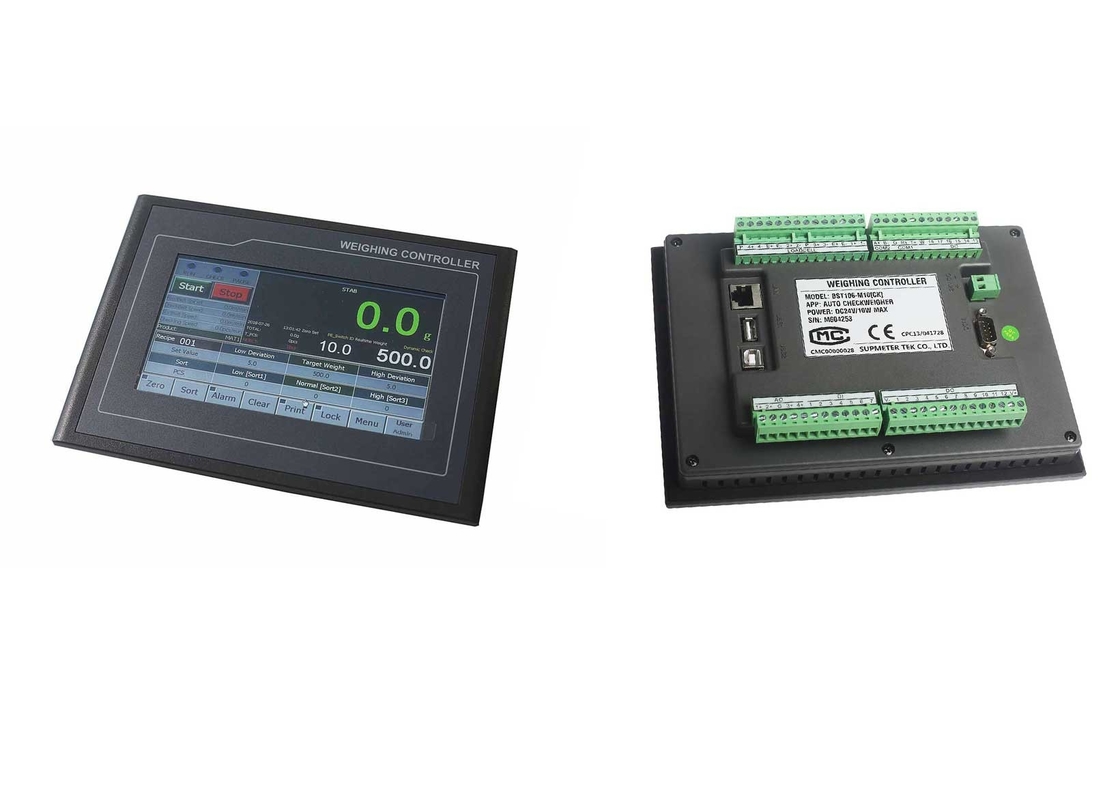

Large Image :  High Precision Weighing Indicator Controller For Auto Reject Checkweigher

Product Details:

Place of Origin: China
Brand Name: SUPMETER
Certification: CE
Model Number: BST106-M10[CK]

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiating
Packaging Details: carton box
Delivery Time: 5-15 qorking days
Payment Terms: T/T, Western Union
Supply Ability: 500pcs/month
Contact Now
Detailed Product Description
Rejecting Mode: Low/Normal/High Weight Sorting Mode: 3-12 Sorting Areas
Power Supply: DC24V±20%, Max. 10W Loadcell Connect Number: 16
DI: 7 DO: 18
Communication Port: RS232&RS485



Weighing Controller BST106-M10[CK] is with the function of " High-frequency Sampling, Anti-vibration Filter, High-accuracy Weighing and High-speed Weight-checking".



Technical Specification:

  • Power Supply: DC24V±20%, Max. 10W.
  • Loadcell Excitation Voltage/Current: DC5V/250mA.
  • 16 Loadcells[350Ω] connectable.
  • Weighing Signal Input Range: 0~12.5mV.
  • 7 Normally Open Switch Inputs [DI].
  • 18 Normally Open Transistor Outputs [DO]: DC24V, 500mA.
  • 4 Analog Signal Outputs [AO]: 0~10V, Max.50mA.
  • COM&COM1: RS232; COM2: RS485.
  • USB1: Connect mouse, software download, data backup.
  • LAN: Optional Ethernet.
  • Outline Size [W×H×D]
  • 7”: 226.5 × 163 × 36 mm.
  • 10.2”: 274 × 193 × 40 mm.
  • Panel Cut-out Size [W×H]
  • 7”: 215 × 152 mm.
  • 10.2”: 261 × 180 mm.
  • Operating Temperature: -25℃~+45℃.
  • Protection Level of Front Panel: IP65.
  • Accuracy Grade: III.
  • Verification Accuracy: 0.02%.
  • Static Weighing Accuracy: 0.2%~0.5%.
  • Dynamic Weight-checking Accuracy: 0.2%~0.5%.

Button Operation:

Name Operation State Indicator Authorization
【Start】

Start.

‘Stop’ state: Start the conveyors and enter the weight-checking running state.

‘Pause’ state: Recover Running.

  All Users
【Stop】 Stop.
【Zero】 Manual Zero [No Power-down Protection]. Flashing green.
【Sort】

‘Sorting Area Quantity’ [3-18] Selection.

Only used for Weight Sorting Mode.

  Administrator
【Alarm】 Alarm Query / Clear Alarm. Red: Alarm state. All Users
【Clear】 Clear Screen: Clear the display values of Checking Weight, Batch Count and Totalized Weight.

Engineer

Administrator

【Print】

Report Print:

  • [ Auto Print]: Print Batch Records.
  • [Total]: Print Totalizing Report.
  • [Recipe]: Print Present Working Recipe.
  All Users
【Lock】

Screen-locking: Locking/unlocking the operating buttons of main user interface.

Auto Screen-locking: Refer to parameter [901].

Flashing Red: Locked.

Grey: Unlocked.

【Menu】 Enter Main Menu.
【User】 User Login. Display: Operator / Engineer / Admin.



System Diagram for APP1 Rejecting Mode

High Precision Weighing Indicator Controller For Auto Reject Checkweigher



System Diagram for APP2 Weight Sorting Mode [3-18 Sorts]

High Precision Weighing Indicator Controller For Auto Reject Checkweigher



Package:



High Precision Weighing Indicator Controller For Auto Reject Checkweigher

Warranty:



The warranty period for our products is 12 (twelve) months.

If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.

(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
