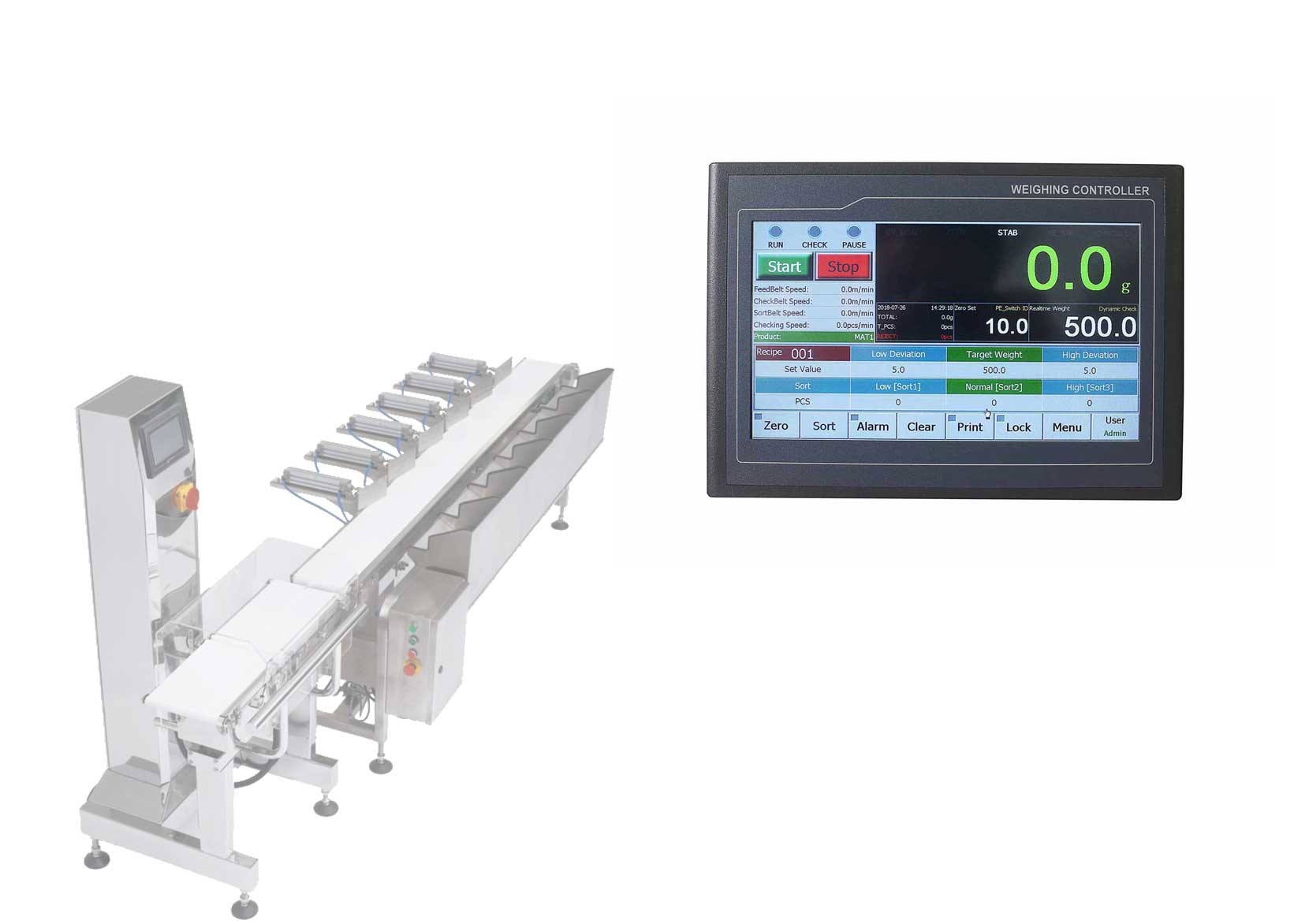

Large Image :  HMI Conveyor Checkweigher Indicator Controller , Digital Weighing Instrument Indicator

Product Details:

Place of Origin: China
Brand Name: SUPMETER
Certification: CE
Model Number: BST106-M10[CK]

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiating
Packaging Details: Carton Box
Delivery Time: 5-15 working days
Payment Terms: T/T, Western Union
Supply Ability: 500pcs/month
Contact Now
Detailed Product Description
Power Supply: DC24V Application Modes 1: Rejecting Mode [Low/Normal/High]
Application Modes 2: Weight Sorting Mode Dimension: 7 Inch And 10 Inch

Main Features:

  • Suitable for Auto Checkweigher. Optional Application Modes: Rejecting Mode [Low/Normal/High] and Weight Sorting Mode with 3-18 Sorting Areas. Optional Control Modes for Feeding /Checking/Sorting Conveyors: DO Switch Control Mode, PWM Speed Regulation Mode and AO[0-10V] Speed Regulation Mode.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
  • 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
  • Loadcell Interface
  • Max. Connection Quantity: 16 Loadcells (350Ω).
  • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and sampling frequency 800Hz.
  • Special anti-vibration digital filtering algorithm for ensuring the weighing stability and accuracy when there is strong vibration on the load receptor, and the rapid response capability when the weight signal changes.
  • I/O Interface
  • 7 Normally open switch inputs [DI] and 12/18 normally open transistor switch outputs [DO].
  • 4 Optional&definable analog signal AO[0~10V] for weight signal output or conveyor speed control.
  • Digital Communication Interface
  • COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
  • COM[RS232] for connecting RS232 Serial Printer.
  • USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
  • LAN: Optional Ethernet port.



User Login Interface

Name Operation Note
【Login】

User Login.

Exfactory Passwords:

  • Operator: None.
  • Engineer: 0.
  • Administrator: 1.
Operation ‘Main Menu / F5 User / Password / PSW Set’ for Modifying Password.
【User Name】 After password inputted, the matching User Name will be displayed.
  • Operator: User with lowest authorization.
  • Engineer: User with higher authorization.
  • Administrator: User with highest authorization.
【Operate】 Enter ‘Main User Interface’. Operation ‘Main Menu / F5 User / Password / Login [Logoff]’ for Re-login and Logoff.



Digital Communication Terminal

No. Pin Description
7 W Special for manufacturer.
COM1 RS232 Digital Communication Port [Definable]
8 Tx Transmit Data [TXD].
9 Rx Receive Data [RXD].
10 G

COM1 Signal Ground [GND].

COM2 Shield Ground [GND].

COM2 RS485 Digital Communication Port [Definable]
11 B- Data -.
12 A+ Data +.
COM RS232 Serial Printer Port [DB9]
2 RXD Receive Data.
3 TXD Transmit Data.
5 GND Signal Ground.
USB1 USB Data Copying Port / HMI Software Download Port / Mouse Port



Outline Size

HMI Conveyor Checkweigher Indicator Controller , Digital Weighing Instrument Indicator



Product

Outline Size

W×H×D[mm]

Front Panel Size

W×H[mm]

Box Body Size

W×H [mm]

Panel Cut-out Size

W1×H1[mm]

7”[B] 226.5×163×56 226.5×163 213×150 215×152
7”[S] 202.5×149×56 202.5×149 190×136 192×138
10.2” 274×193×40 274×193 259×178 261×180
