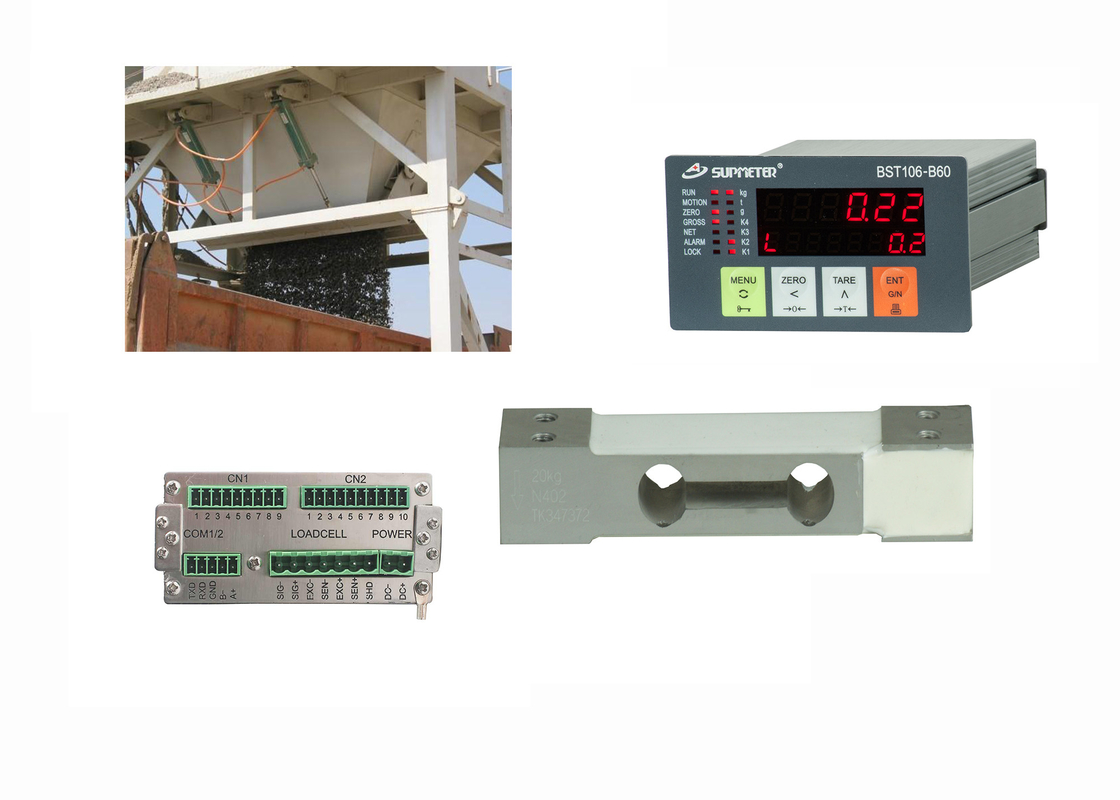

High Accuracy Grade Ao 4-20mA Electronic Weighing Indicator High Sampling Frequency

China High Accuracy Grade Ao 4-20mA Electronic Weighing Indicator High Sampling Frequency supplier

Large Image :  High Accuracy Grade Ao 4-20mA Electronic Weighing Indicator High Sampling Frequency

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-B60[T]

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Power Supply: DC24V DI: 4
DO: 2 Outline Size: 107*60*100mm



High  Protecting Level Measuring Controller Electronic Weighing Indicator For 1-3 Channels Force Measuring Systm

Calibration notic



Note:

  • Total Capacity of Loadcells = Loadcell Capacity × Quantity.
  • Voltage Ratio = Excitation Voltage on the terminal of controller / Excitation Voltage on the terminal of loadcells.
  • The rated excitation voltage for loadcells is DC9V. It’s best to measure the actual voltage value.
  • 4-wire connection: The voltage attenuation is big, the voltage on both sides should be measured.
  • 6-wire connection: The voltage attenuation is small, Voltage Ratio can be set to 1.0000.

 Technical Specifications
 Power Supply: DC24V±20%, Max. 5W.
 Loadcell Excitation Voltage/Current: DC5V/120mA.
 8 Loadcells[350Ω] connectable.
 Transmitter Excitation Voltage/Current: DC12V/100mA.
 Optional weighing input signal mV, V and mA.
 【mV】Signal Input Range: 0~19.5mV.
 【V】Signal Input Range: 0~2.5V, 0~5V, 0~10V.
 【mA】Signal Input Range: 0~20mA.
 2 Normally open/closed Relays [DO]: AC250V/DC24V, 1A.
 1 Analog Signal Output [AO]: 0~20mA, 0.05%FS.
 COM1: RS232.
 COM2: RS485.
 Connect Host IPC[Modbus] & Remote Display.
 Outline Size [W×H×D]: 107 × 60 × 100 mm.
 Panel Cut-out Size [W×H]: 94 × 47 mm.
 Operating Temperature: -25℃~+45℃.
 Protection Level of Front Panel: IP65.
 Accuracy Grade: III.
 Verification Accuracy: 0.03%.
 Static Weighing / Force Measuring Accuracy: 0.2%~0.5%.



     Pictures



High Accuracy Grade Ao 4-20mA Electronic Weighing Indicator High Sampling Frequency

       Main Menu



Main Menu Second Menu
Sign Function Sign Description
F1-SEt Parameter Setting -SCAL- Scale parameters setting.
-CALP- Calibration parameters setting.
-SEtP- Setpoint parameters setting.
-SErP- Communication parameters setting.
-dISP- User interface parameters setting.
F2-CAL System Calibration -ZEro- Zero Calibration without loading on the weigher to correct Zero Value.
-dAtA- Data Calibration: Input the specification parameter values of loadcell [Total Capacity and Output Sensitivity] according to the actual configuration of the weighing system to correct Span Coefficient. If there is no access to get the specification parameter values for Data Calibration, then it’s necessary to do Load Calibration.
-LoAd- Load Calibration: After doing Data Calibration, if there are conditions for Load Caliration, do Load Caliration with loading standard weight on the weigher to correct Span Coefficient further for higher weighing accuracy.
F3-rEC     Unused.
F4-CLn Data Clearing --CLS- Clear Screen: Clear the display value of Net Weight of Present Batch, Totalized Net Weight and Batch Count.
F5-Loc Key-locker -oPEn- Key-unlocking.
-Locc- Key-locking.
-PASS-

Password Set.

Exfactory Passwords:

  • Operator Password: 000000.
  • Administrator Password: 000001.


  State Indication

LED light Description
[RUN]

OFF: Real-time Force Value tracking display state.

ON: Peak Value Detecting Result holding display state [Peak Value Detecting Process Finished].

Blinking: Peak Value tracking display state [In Peak Value Detecting Process].

[AL1]

Real-time Resultant Force or Resultant Force Peak Value Upper Limit Alarm.

Refer to Parameters [200]&[202].

[AL2]

Real-time Resultant Force or Resultant Force Peak Value Lower Limit Alarm.

Refer to Parameters [201]&[202].



            Installation
