TFT Touch Two Scale Packing Digital Weighing Controller With Anti Vibration Filter

Good quality Batch Weighing Controller for sales
Good quality Batch Weighing Controller for sales
I'm Online Chat Now

TFT Touch Two Scale Packing Digital Weighing Controller With Anti Vibration Filter

China TFT Touch Two Scale Packing Digital Weighing Controller With Anti Vibration Filter supplier
TFT Touch Two Scale Packing Digital Weighing Controller With Anti Vibration Filter supplier TFT Touch Two Scale Packing Digital Weighing Controller With Anti Vibration Filter supplier TFT Touch Two Scale Packing Digital Weighing Controller With Anti Vibration Filter supplier TFT Touch Two Scale Packing Digital Weighing Controller With Anti Vibration Filter supplier

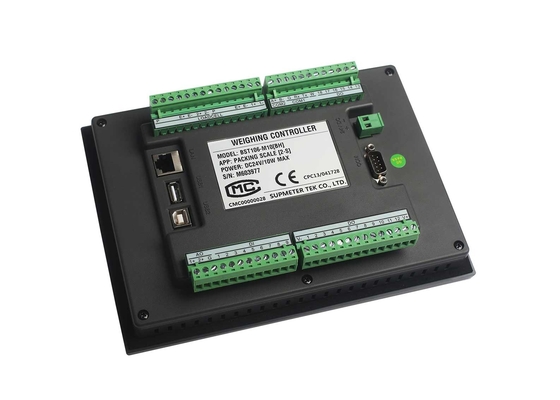

Large Image :  TFT Touch Two Scale Packing Digital Weighing Controller With Anti Vibration Filter

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-M10(BH)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3-10 working day3
Payment Terms: T/T, Western Union
Supply Ability: 500pcs/month
Contact Now
Detailed Product Description
Power Supply: DC24V DI: 9
DO: 18 7 Inch Outline Size: 226.5*163*36mm
10 Inch Outline Size: 274*193*40mm





TFT-Touch Two-Scale Packing Weighing Controller With Anti-vibration Filter





Main Applications

  • Ration Packing Scale with 2-weighing-hopper&1/2-bag.
  • Ration Packing Scale with 2-weighing-bag.

Main Features

  • EMC design with high anti-jam for industrial environment.
  • DC24V power input with reverse polarity protection.
  • Cortex-A8 CPU with 600MHz Clock, 128M Flash.
  • 7” [800×480] or 10.2” [1024×600] TFT touch panel.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • High sampling frequency 800Hz.
  • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  • Auto Zero Tracking.
  • Fall Value Auto Correction.
  • Auto Pause for Deviation Alarm.
  • Auto Re-feed for Negative Deviation Alarm.
  • Target Batch Count & Target Batch Weight Control.
  • 3-speed[high/medium/low] feeding control by DOs or AOs.
  • Definable DI/DO/AO/COM[Communication Port].
  • Recipe Number: 100.

Technical Specifications

  • Power Supply: DC24V±20%, Max. 10W.
  • Loadcell Excitation Voltage/Current: DC5V/250mA.
  • 16 Loadcells[350Ω] connectable.
  • Weighing Signal Input Range: 0~12.5mV.
  • 9 Normally Open Switch Inputs [DI].
  • 18 Normally Open Transistor Outputs [DO]: DC24V, 500mA.
  • 2 Analog Signal Outputs [AO]: 0~10V, Max.50mA.
  • COM&COM1: RS232; COM2: RS485.
  • USB1: Connect mouse, software download, data backup.
  • LAN: Optional Ethernet.
  • Outline Size [W×H×D]
  • 7”: 226.5 × 163 × 36 mm.
  • 10.2”: 274 × 193 × 40 mm.
  • Panel Cut-out Size [W×H]
  • 7”: 215 × 152 mm.
  • 10.2”: 261 × 180 mm.
  • Operating Temperature: -25℃~+45℃.
  • Protection Level of Front Panel: IP65.
  • Accuracy Grade: III.
  • Verification Accuracy: 0.02%.
  • Static Weighing Accuracy: 0.2%~0.5%.
  • Packing Accuracy: 0.2%~0.5%.

Installation Mode​

TFT Touch Two Scale Packing Digital Weighing Controller With Anti Vibration Filter





Terminal Diagram

TFT Touch Two Scale Packing Digital Weighing Controller With Anti Vibration Filter



    Main Operation Interface

    Single-scale Mode:

TFT Touch Two Scale Packing Digital Weighing Controller With Anti Vibration Filter



       Double-scale Mode:



TFT Touch Two Scale Packing Digital Weighing Controller With Anti Vibration Filter





        Button Operation

Name Operation State Indicator Authorization
【Auto】 Auto / Manual [Emergency Stop] switch.

Green: Auto state.

Grey: Manual state.

All Users
【Start】 Start.

Green: Running state.

Grey: Stop state.

【Re-run】 Clear Alarm & Recover Running.
【Last】

Last Batch [Normal Stop].

Stop after the present batch finished.

Flashing Red.
【E-stop】 Emergency Stop.
【Alarm】

Alarm Query / Clear Alarm.

‘Auto/Pause’ state: Recover Running after clearing alarm.

Red: Alarm state.
【Print】

Report Print:

  • [ Auto Print]: Print Batch Records.
  • [Total]: Print Totalizing Report.
  • [Recipe]: Print Working Recipe.

【Lock】

Screen-locking: Locking/unlocking the operating buttons of main display interface.

Auto Screen-locking: Refer to parameter [901].

Flashing Red: Locked.

Grey: Unlocked.

【Menu】 Enter Main Menu.
【User】 User Login. Display: Operator / Engineer / Admin.
【Zero】 Zero Fine Adjustment [No Power-down Protection]. Flashing green.
【Bag】 Bag-clamp/release Request.

Green: Bag-clamping state.

Grey: Bag-releasing state.

【High】 Manual Start/Stop High-speed Feeding. Green: Working state.
【Med】 Manual Start/Stop Medium-Speed Feeding.
【Low】 Manual Start/Stop Low-speed Feeding.
【Dump】 Manual Start/Stop Dumping.
【Clear】 Clear Screen: Clear the display values of Feeding Weight, Totalized Weight, Batch Count and Packing Speed.

Engineer

Administrator



System Diagram for APP1.1 1-Bucket Scale

TFT Touch Two Scale Packing Digital Weighing Controller With Anti Vibration Filter



System Diagram for APP1.2 2-Bucket Scale[1-Bag] Mode

TFT Touch Two Scale Packing Digital Weighing Controller With Anti Vibration Filter



System Diagram for APP1.3 2-Bucket Scale[2-Bag] Mode

TFT Touch Two Scale Packing Digital Weighing Controller With Anti Vibration Filter
