Durable Force Measuring Indicator Controller With Peak Value Detection And AO 4-20ma

Good quality Batch Weighing Controller for sales
Good quality Batch Weighing Controller for sales
I'm Online Chat Now

Durable Force Measuring Indicator Controller With Peak Value Detection And AO 4-20ma

China Durable Force Measuring Indicator Controller With Peak Value Detection And AO 4-20ma supplier
Durable Force Measuring Indicator Controller With Peak Value Detection And AO 4-20ma supplier Durable Force Measuring Indicator Controller With Peak Value Detection And AO 4-20ma supplier Durable Force Measuring Indicator Controller With Peak Value Detection And AO 4-20ma supplier Durable Force Measuring Indicator Controller With Peak Value Detection And AO 4-20ma supplier

Large Image :  Durable Force Measuring Indicator Controller With Peak Value Detection And AO 4-20ma

Product Details:

Place of Origin: China
Brand Name: SUPMETER
Certification: CE
Model Number: BST106-B60[F]

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3~30 working days after got the payment
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs/month
Contact Now
Detailed Product Description
Power Supply: DC24V Accuracy Grade: III
Vertification Accuracy: 0.03% Static Force Measuring Accuracy Accuracy: 0.2%~0.5%
Operating Temperature: -25℃ ~ +45℃





Force measuring indicator controller with peak value detection and AO 4-20ma


Detailed Specification

  • Executing Standard
  • CMC GB/T 7724-2008PRC National Standard.
  • OMIL R76: 2006International Recommendation.
  • Accuracy Grade: III.
  • Verification Accuracy: 0.03%.
  • Static Force Measuring Accuracy: 0.2%~0.5%.
  • Display
  • 6+8 Red LED digital tubes for English character and digit display.
  • Force Value Display Range: -60,000~+60,000.
  • Force Capacity: Setting Range 1~60,000.
  • Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500.
  • Display Resolution: 1/60,000.
  • Force Value Unit: Optional kg, t, g, none.
  • Decimal Point: Optional 0, 0.0, 0.00, 0.000, 0.0000.
  • Display Refreshing Time: Setting Range 0.01~1.00s.
  • Kaypad
  • Model Panel-mounting: 4-key English keypad.
  • Model Explosion-proof: 6-key English keypad.
  • Menu&Shortcut mode operation with key tone.
  • Loadcell Interface
  • Excitation Voltage/Max. Current: DC9V/120mA [4-350Ω loadcells].
  • Signal Input Range: -22.5~+22.5mV.
  • Output Sensitivity of Loadcell: 1.0~2.5mV/V.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • Sampling Frequency: 3200Hz.
  • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  • Gain Drift: ±5ppm/℃.
  • Non-linearity: 0.005%FS.
  • Switch/Analog Signal Interface
  • 6 Normally Open Switch Inputs [DI].
  • 5 Normally Open Relay Switch Outputs [DO]: AC250V/DC24V, 1A.
  • 1 Optional&Definable Analog Signal Output: 4~20mA, Non-linearity: 0.05%FS.
  • Digital Communication Interface
  • COM1: RS232.
  • COM2: RS485.
  • Connectable: Host IPC/PLC and LED Remote Display.

  • Operating Specification
  • Operating Voltage
  • Model Panel-mounting: DC24V±20%.
  • Model Explosion-proof: AC110~240V, 50/60Hz.
  • Max. Power Consumption: 5W.
  • Outline Size
  • Model Panel-mounting: 110×62×150mm [W×H×D].
  • Model Explosion-proof: 256×290×166mm [W×H×D].
  • Panel Cut-out Size
  • Model Panel-mounting: 94×47 mm [W×H].
  • Operating Temperature: -25℃ to +45℃.
  • Storage Temperature: -30℃ to +60℃.
  • Relative Humidity: Max. 85%RH.
  • Application Environment of Model Explosion-proof
  • Explosion gas environment: Zone 1&2.
  • Classes of explosion gas mixture: IIA, IIB.
  • Temperature grades of explosion gas mixture: T1~T6.
  • Ex-mark: Ex d IIB T6 Gb.
  • Protection Level
  • Front Panel of Model Panel-mounting: IP65.
  • Model Explosion-proof: IP65.
  • Weight
  • Model Panel-mounting: Approx. 0.5kg.
  • Model Explosion-proof: Approx. 9.2kg.


Technical Specification:


Loadcell Excitation Voltage/Current  DC9V/120mA
Max. Loacell Connectable No.  4 loadcells (350Ω)
Signal Input Range  -22.5~+22.5mV
Sampling Frequency  3200Hz
DI  6 Definable Normally Open Switch Inputs
DO  5 Normally Open Relay Switch Outputs [DO]: AC250V/DC24V, 1A
AO  1 Definable Analog Signal Output [AO]: 4~20mA
Communication   COM1[RS232]&COM2[RS485]
Connectable  Host IPC/PLC and LED Remote Display.
IP Grade  IP65


Keypad Operation
   If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.


Menu Operation
Key Name Description
【MENU】

Enter Main Menu.
Exit.

【ENT】 Enter / Save / Alarm Acknowledge.
【◄】

Cursor shifts left.
Display the previous option.

【►】

Cursor shifts left.
Display the next option.

【▲】

Display the next interface or option.
Digit input: +1 ( 0~9 loop).

【▼】

Display the previous interface or option.
Digit input: -1 ( 0~9 loop).

Quick Operation

【MENU】
【Ñ】
*

  • Key-locking.
  • Key-unlocking.

【◄】
(【SET】)

Setpoint parameters setting.

【◄】
【ZERO】
【→0←】
*

  • [-ZEro-]: Zero Calibration with Power-down Protection.
  • [≡ZEro≡]: Zero Fine Adjustment without Power-down Protection.

【ENT】
(【CLS】)
*

Clear Screen: Clear the display value of Peak Hold Value.


Demension:

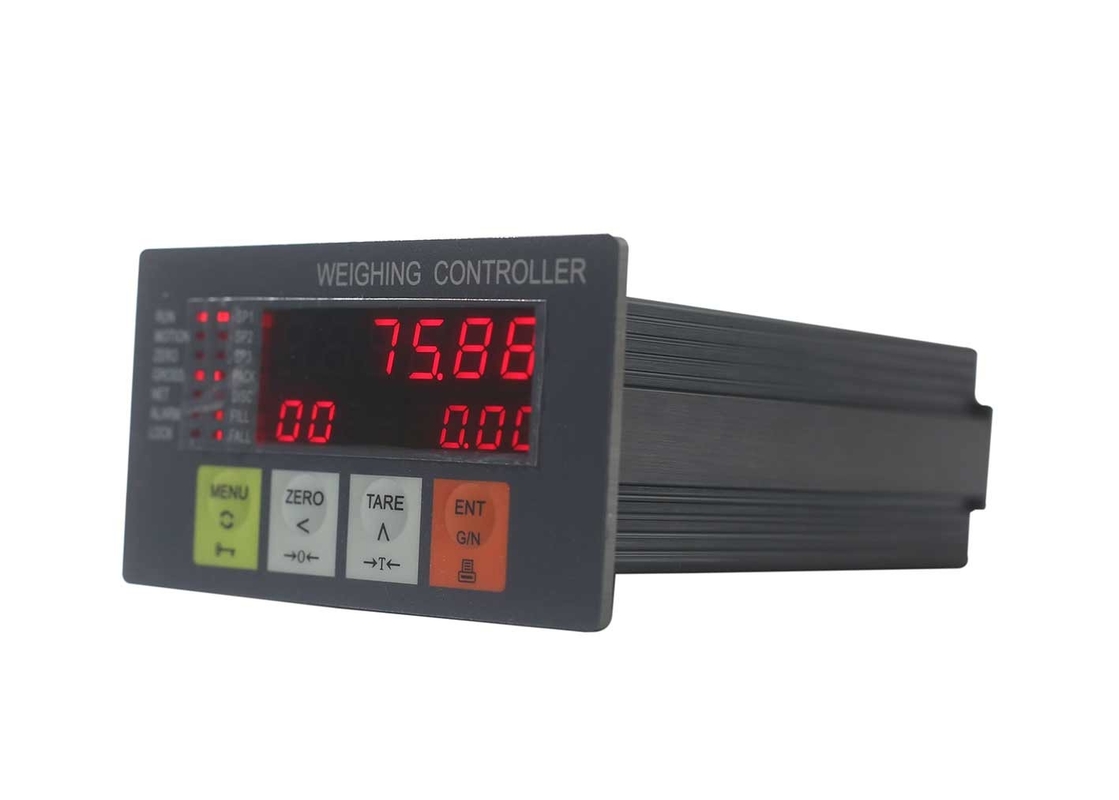

Durable Force Measuring Indicator Controller With Peak Value Detection And AO 4-20ma

Outline Size

W×H×D[mm]

Front Panel Size

W×H[mm]

Box Body Size

W×H [mm]

Panel Cut-out Size

W1×H1[mm]

110×62×150 110×62 93×46 94×47



Terminal:

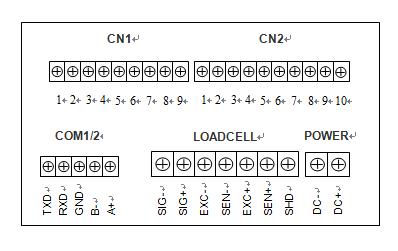

Durable Force Measuring Indicator Controller With Peak Value Detection And AO 4-20ma
Application:

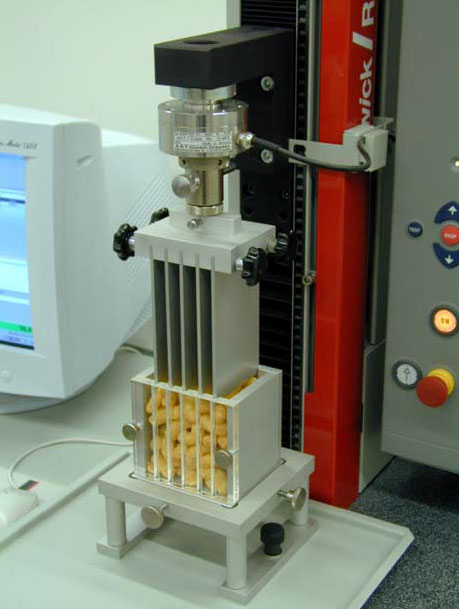

Durable Force Measuring Indicator Controller With Peak Value Detection And AO 4-20ma
