VFD Display Force Measuring Controller High Speed Digital Transmission

Good quality Batch Weighing Controller for sales
Good quality Batch Weighing Controller for sales
I'm Online Chat Now

VFD Display Force Measuring Controller High Speed Digital Transmission

China VFD Display Force Measuring Controller High Speed Digital Transmission supplier
VFD Display Force Measuring Controller High Speed Digital Transmission supplier VFD Display Force Measuring Controller High Speed Digital Transmission supplier VFD Display Force Measuring Controller High Speed Digital Transmission supplier VFD Display Force Measuring Controller High Speed Digital Transmission supplier

Large Image :  VFD Display Force Measuring Controller High Speed Digital Transmission

Product Details:

Place of Origin: China
Brand Name: SUPMETER
Certification: CE
Model Number: BST106-F15

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3~30 working days after got the payment
Payment Terms: T/T, Western Union
Supply Ability: 500pcs/month
Contact Now
Detailed Product Description
Power Supply: AC220V Accuracy Grade: III
Vertification Accuracy: 0.02% Static Force Measuring Accuracy Accuracy: 0.2%~0.5%
Operating Temperature: -25℃ ~ +45℃

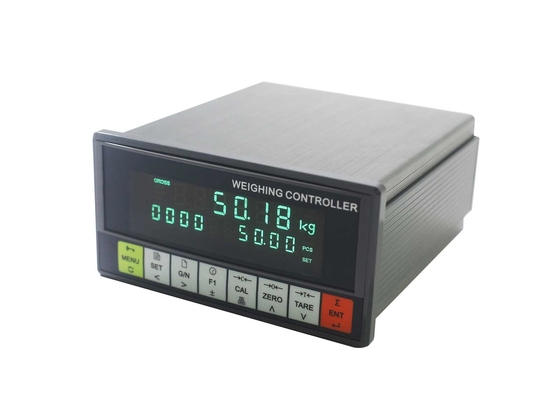

Force Measuring Controller, With VFD display, High Speed Digit Transmission, With Alunimium Shell



BST106-F15 is suitable for 1-D Peak Value Force Measuring.



There are several kinds of application:

1. Positive&Negative Direction Real-time Force Value Display

2. Peak&Valley Value Detection / Display Holding / Printing

3. Setpoint DO Output and AO Transmission.

4. Real-time&High-speed Digit Transmission for sending Instantaneous Force Value or Instantaneous AD value with max. sampling frequency 800Hz to Force Value Analysis Computer via the digit communication port with max. baud rate 115.2kbps.



3 Optional Setpoint DO Output Modes: Force Limit DO Alarm Mode, Force Increment DO Output Mode, Force Decrement DO Output Mode and Force Section DO Output Mode.



Optional ‘Auto Enter Peak&Valley Value Detecting Process after Power-on’ function.



Technical Specification:



Display 6+10 Green VFD digital tubes for English character and digit display.
Force Value Display Range -60,000~+60,000
Force Capacity Setting Range 1~60,000
Keypad 8-key English keypad
Loadcell Excitation Voltage/Current  DC10V/250mA
Max. Loacell Connectable No.  8 loadcells (350Ω)
Signal Input Range  0~25mV
Optional Sampling Frequency  5, 100, 200, 400, 800Hz
DI 3 Definable Normally Open Switch Inputs
DO  5 Normally Open Relay Switch Outputs [DO]: AC250V/DC24V, 1A
AO  1 Definable Analog Signal Output [AO]: 4~20mA
Communication   COM1[RS232]&[RS485]
Connectable  Host IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
IP Grade  IP65



Detail Specification:



Executing Standard

  1. CMC GB/T 7724-2008PRC National Standard.
  2. OMIL R76: 2006International Recommendation.
  3. Accuracy Grade: III.
  4. Verification Accuracy: 0.02%.
  5. Static Force Measuring Accuracy: 0.2%~0.5%.

Display

  1. 6+10 Green VFD digital tubes for English character and digit display.
  2. Force Value Display Range: -60,000~+60,000.
  3. Force Capacity: Setting Range 1~60,000.
  4. Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500.
  5. Display Resolution: 1/60,000.
  6. Force Value Unit: Optional kg, t, g, none.
  7. Decimal Point: Optional 0, 0.0, 0.00, 0.000, 0.0000.
  8. Display Refreshing Time: Setting Range 0.01~1.00s.

Keypad

  1. 8-key English keypad.
  2. Menu&Shortcut mode operation with key tone.
  3. Loadcell Interface
  4. Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].
  5. Signal Input Range: 0~25mV.
  6. Output Sensitivity of Loadcell: 1.0~2.5mV/V.
  7. 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  8. Optional Sampling Frequency: 5, 100, 200, 400, 800Hz.
  9. Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  10. Gain Drift: ±5ppm/℃.
  11. Non-linearity: 0.005%FS.

Switch&Analog Signal Interface

  1. 3 Normally Open Switch Inputs [DI].
  2. 5 Normally Open Relay Switch Outputs [DO]: AC250V/DC24V, 1A.
  3. 1 Optional&Definable Analog Signal Output [AO]: 4~20mA, Non-linearity: 0.05%FS.
  4. Digital Communication Interface
  5. COM1: Fixed configuration RS232&RS485. Free to use one of them.
  6. COM2: Optional RS232/RS485/RS422/Profibus-DP/Ethernet modules.
  7. Connectable: Host IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.



Report Print

  1. The Force [Peak&Valley Value] Measuring Record can be printed automatically and manually.
  2. Operating Specification
  3. Optional Operating Voltage
  4. Operating Voltage 1: DC24V±20%.
  5. Operating Voltage 2: AC85~264V, 50/60Hz.
  6. Operating Voltage 3: AC220V±15%, 50/60Hz.
  7. Free to configure one of them.
  8. Max. Power Consumption: 10W.

Outline Size

  1. Model Panel-mounting: 164×82×188mm [W×H×D].
  2. Model Explosion-proof: 340×390×205mm [W×H×D].
  3. Panel Cut-out Size
  4. Model Panel-mounting: 153×77mm [W×H].
  5. Operating Temperature: -25℃ to +45℃.
  6. Storage Temperature: -30℃ to +60℃.
  7. Relative Humidity: Max. 85%RH.
  8. Application Environment of Model Explosion-proof
  9. Explosion gas environment: Zone 1&2.
  10. Classes of explosion gas mixture: IIA, IIB.
  11. Temperature grades of explosion gas mixture: T1~T6.
  12. Ex-mark: Ex d IIB T6 Gb.

Protection Level

  1. Front Panel of Model Panel-mounting: IP65.
  2. Model Explosion-proof: IP65.

Weight

  1. Model Panel-mounting: Approx. 1.6kg.
  2. Model Explosion-proof: Approx. 19.2kg.

Operation Interface:





VFD Display Force Measuring Controller High Speed Digital Transmission





Demension:



VFD Display Force Measuring Controller High Speed Digital Transmission

Outline Size

W×H×D[mm]

Front Panel Size

W×H[mm]

Box Body Size

W×H [mm]

Panel Cut-out Size

W1×H1[mm]

164×82×188 164×82 152×76 153×77





Terminal:

VFD Display Force Measuring Controller High Speed Digital Transmission





Optional Type: Explosion-proof one

VFD Display Force Measuring Controller High Speed Digital Transmission

Delivery:



Express (door to door service), by air and by sea are available. We will recommend you the most suitable one to help you save money.



VFD Display Force Measuring Controller High Speed Digital Transmission
