DC24V Steel Weigh Feeder Controller Panel Mounted With 18 Digital Keypad
- Suitable for Ration Belt Weighfeeder with Ration Flow Feeding & Ration Weight Batch Control.
- EMC design with high anti-jamming capability, suitable for industrial environment.
- 32-bit ARM CPU with 72MHz & higher arithmetic speed.
- 128×64 LCD display screen with 7 background colors for English display.
- 16-key English keypad.
- Menu&Shortcut mode operation with key tone.
- High-precision ∑-△A/D conversion technology and broad-range speed pulse input circuit.
- Max. Connection Quantity: 8 Loadcells (350Ω).
- Auto-locking, Key-locking, Key-unlocking, Digital Setting&Calibration and I/O Testing
- functions available.
- Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
- One optional ‘Flow Setpoint’ analog signal input [AI: 4~20mA].
- Max.3 definable ‘Flow/Control Current /…’ analog signal outputs [AO: 4~20mA].
- Quick and steady PID ration feeding control.
- 3 Definable normally open switch inputs [DI] and 4 definable normally open relay switch
- outputs [DO].
- The feeder and belt weigher can be started and stopped by DI&DO signal.
- 1 ‘Totalized Weight High-speed Pulse’ output [PO].
- 2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer
- and Wireless Module.
- Weight Records per shift/day/month of a year can be queried and printed.
- With the multitasking mode, the weighing&control process will not be interrupted by parameter
- setting and the other operations.

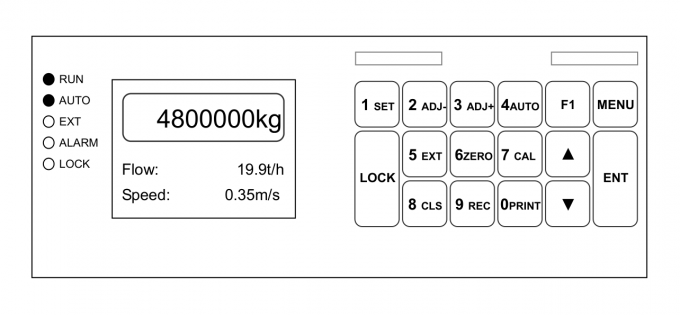

User Interface Diagram
- Power Supply: AC220V±15%, 50/60Hz, Max. 15W.
- Loadcell Excitation Voltage/Current: DC10V/250mA.
- 8 Loadcells[350Ω] connectable.
- Weighing Signal Input Range: 0~25mV.
- Speed Sensor Excitation Voltage/Current: DC12V/100mA.
- Speed Signal Input Range: 0.5~3000Hz.
- 3 Normally Open Switch Inputs [DI].
- 4 Normally Open Relay Outputs [DO]: AC250V/DC24V, 1A.
- 1 ‘Totalized Weight’ Pulse Output [PO]: DC5~24V, 100mA.
- 2 ‘PID Control’ Analog Output [AO]: 4~20mA, 0.05%FS.
- 1 ‘Flow Set’ Analog Input [AI]: 4~20mA, 0.05%FS.
- COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet.
- COM2: RS232.
- Connect Host IPC, Remote Display, Printer&Wireless Module.
- Outline Size [W×H×D]: 164 × 86 × 193 mm.
- Operating Temperature: -25℃～+45℃.
- Protection Level of Front Panel: IP65.
- Accuracy Grade: 0.5.
- Accuracy of Flow Control: 0.5%~1.0%.
