Industrial Weighing Indicator Controller , TFT - Touch Ration Batch Weighing System Controller

China Industrial Weighing Indicator Controller , TFT - Touch Ration Batch Weighing System Controller supplier
Industrial Weighing Indicator Controller , TFT - Touch Ration Batch Weighing System Controller supplier Industrial Weighing Indicator Controller , TFT - Touch Ration Batch Weighing System Controller supplier Industrial Weighing Indicator Controller , TFT - Touch Ration Batch Weighing System Controller supplier Industrial Weighing Indicator Controller , TFT - Touch Ration Batch Weighing System Controller supplier Industrial Weighing Indicator Controller , TFT - Touch Ration Batch Weighing System Controller supplier

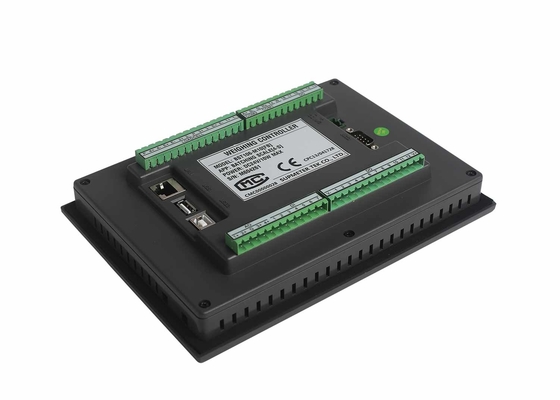

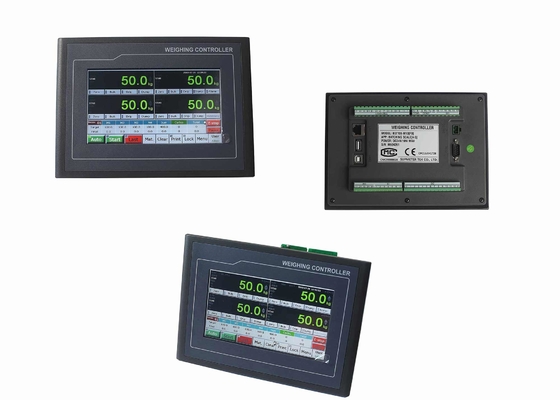

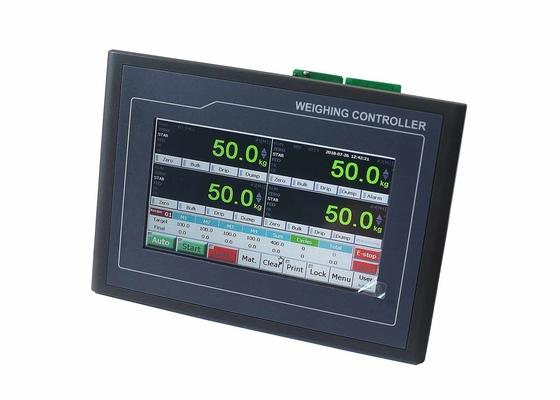

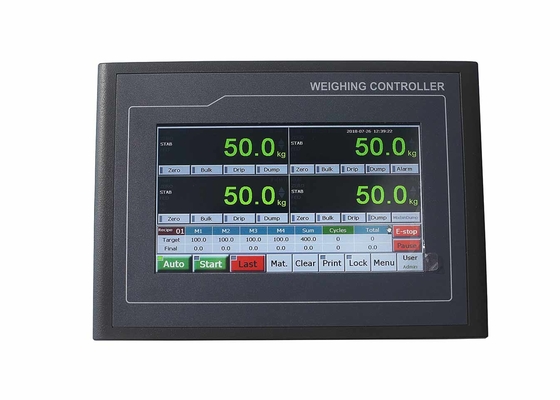

Large Image :  Industrial Weighing Indicator Controller , TFT - Touch Ration Batch Weighing System Controller

Product Details:

Place of Origin: CHINA
Brand Name: Supmeter
Certification: CE
Model Number: BST106-M10[FB]

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 400USD PER PCS
Packaging Details: Carton Packing
Delivery Time: 3 WORKING DAYS
Payment Terms: T/T
Supply Ability: 1000PCS PER MONTH
Contact Now
Detailed Product Description
Material: Stell Power: DC24V
Loadcell: 16 Loadcells Com1: RS232
COM2: RS485

FOUR Scale TFT -Touch Ration Batching Controller For 4 Material



Ration Batching Scale With 1-16 Material [Single -scale ]



EMC Design With High Anti-jam For Industrial Environment

Industrial Weighing Indicator Controller , TFT - Touch Ration Batch Weighing System Controller

    Main Applications

  •  Ration Batching Scale with 1-16 materials [Single-scale].
     Loss-in-weight Ration Mixture-dumping Control.
  • Industrial Weighing Indicator Controller , TFT - Touch Ration Batch Weighing System Controller
  • Main Features
  • EMC design with high anti-jam for industrial environment.
  •  DC24V power input with reverse polarity protection.
  • Cortex-A8 CPU with 600MHz Clock, 128M Flash.
  •  7” [800×480] or 10.2” [1024×600] TFT touch panel.
  •  24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • High sampling frequency 800Hz.
  • Special Anti-vibration Digital Filtering Algorithm for precise
  •  weighing, stable display and rapid response.
  •  Auto Zero Tracking.
  •  Load Calibration and Loss Calibration.
  •  Fall Value Auto Correction.
  •  Auto Re-feed for negative deviation alarm.
  • Target Batch Count Control.
  • Auto Pause for Gross Weight Upper Limit & Deviation Alarm.
  • ‘Manual Pause’ Operation.
  • 2-speed[high/low] feeding control by DOs or AOs.
  • Definable DI/DO/AO/COM[Communication Port].
  •  Recipe Number: 100
  • Industrial Weighing Indicator Controller , TFT - Touch Ration Batch Weighing System Controller

Technical Specifications

  • Power Supply: DC24V±20%, Max. 10W.
  •  Loadcell Excitation Voltage/Current: DC5V/250mA.
  •  16 Loadcells[350Ω] connectable.
  • Weighing Signal Input Range: 0~12.5mV.
  •  7 Normally Open Switch Inputs [DI].
  • 18 Normally Open Transistor Outputs [DO]: DC24V, 500mA.
  •  4 Analog Signal Outputs [AO]: 0~10V, Max.50mA.
  • COM&COM1: RS232; COM2: RS485.
  • USB1: Connect mouse, software download, data backup.
  •  LAN: Optional Ethernet.
  •
  • Industrial Weighing Indicator Controller , TFT - Touch Ration Batch Weighing System Controller
  •
  • Outline Size [W×H×D]
  •  7”: 226.5 × 163 × 36 mm.
  •  10.2”: 274 × 193 × 40 mm.
  •  Panel Cut-out Size [W×H]
  •  7”: 215 × 152 mm.
  •  10.2”: 261 × 180 mm.
  • Operating Temperature: -25℃~+45℃.
  •  Protection Level of Front Panel: IP65.
  • Accuracy Grade: III.
  •  Verification Accuracy: 0.02%.
  • Static Weighing Accuracy: 0.2%~0.5%.
  • Batching Accuracy: 0.2%~0.5%
  • Industrial Weighing Indicator Controller , TFT - Touch Ration Batch Weighing System Controller



FAQ:





1. Sample is Available?



Yes. This product support free sample. As long as you can bear the freight charge.



2. What detailed information do I need to provide if I want to place an order?

We need to know the following information: accuracy, Quantity, special requirements if you have, etc.



3. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.



4. What terms of payment are available?

We accept T/T, L/C, Trade assurance, Secure payment, Western Union,etc.



5.When will you arrange the production?

We will arrange the production immediately after receiving your payment.



6. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.



7. How long is the warranty period?

The warranty period for our products is 12 (twelve) months.

If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.

(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
