Detailed Product Description
Power Supply: AC220V Protection Level: IP65
Accuracy Grade: 0.5 Max. Connection Number Of Loadcell: 8 Loadcells (350Ω)
Communication Port: COM1:Optional RS232/RS485/RS422/ Profibu-DP/Ethernet; COM2:RS485

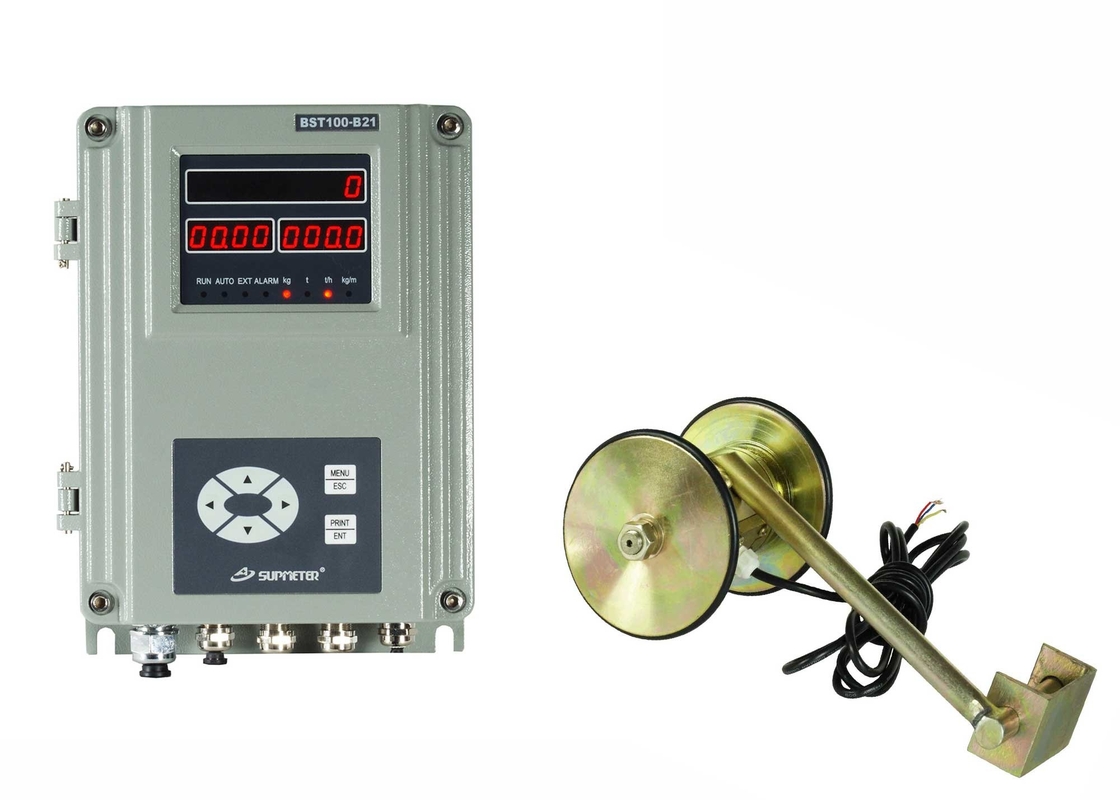

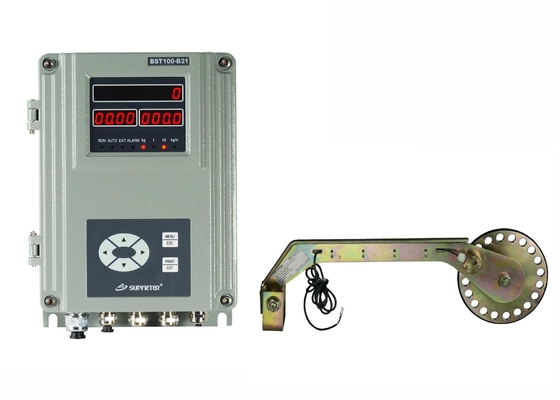

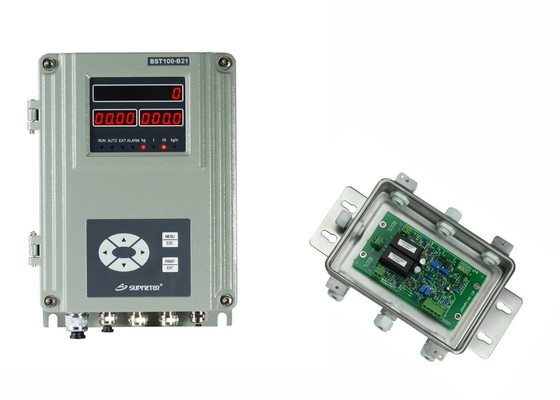

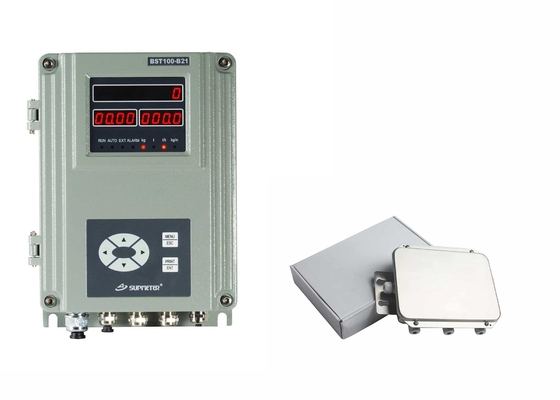

Dust proof Electronic Measure Belt Weighfeeder Controller With Signal Junction Box

Technical Specification

  • Executing Standard
  • CMC GB/T 7724-2008PRC National Standard.

² OMIL R50:1997International Recommendation.

² Accuracy Grade: 0.5.

² Accuracy of Flow Control: 0.5%~1.0%.

  • Display
  • 8+4+4 Red LED digital tubes for English character and digit display.
  • Display Refreshing Time: Setting Range 0.1~2.0s.
  • Kaypad
  • Optional 6-key English keypad, Simplified Chinese keypad and Complex Chinese keypad.
  • Menu&Shortcut operation with key tone.
  • Loadcell Interface
  • Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].
  • Signal Input Range: 0~25mV.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • Sampling Frequency: 400Hz.
  • Special Anti-vibration Digital Filtering Algorithm for precise weighing, stable display and rapid response.
  • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  • Gain Drift: ±5ppm/℃.
  • Non-linearity: 0.005%FS.
  • Speed Sensor Interface
  • Output Voltage/Max. Current: DC12V/100mA.
  • Speed Pulse Input Range: 0.5~3000Hz.
  • Switch Signal Interface
  • 3 Normally Open Switch Inputs [DI].
  • 4 Normally Open Relay Switch Outputs [DO]: AC250V/DC24V, 1A.
  • 1 ‘Totalized Weight High-speed Pulse’ Output [PO]: 100mA, DC5~24V; Weight per Pulse and Pulse Width can be preset.
  • Analog Signal Interface
  • Max.3 Definable ‘Flow/Control Current /…’ Analog Signal Outputs [AO]: 4~20mA, Non-linearity: 0.05%FS; AO3 is optional.
  • 1 Optional ‘Flow Setpoint’ Analog Signal Input [AI]: 4~20mA, Non-linearity: 0.05%FS.

  • Digital Communication Interface
  • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet modules.
  • COM2: RS232.
  • Connectable: IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
  • Report Print
  • Weight Records per shift/day/month of a year can be queried and printed.
  • Operating Specification
  • Operating Voltage: AC220V±15%, 50/60Hz.
  • Max. Power Consumption: 15W.
  • Outline Size
  • Model Panel-mounting: 160×84×188mm [W×H×D].
  • Model Wall-mounting: 202×305×90mm [W×H×D].
  • Panel Cut-out Size
  • Model Panel-mounting: 151×76mm [W×H].
  • Operating Temperature: -25℃ to +45℃.
  • Storage Temperature: -30℃ to +60℃.
  • Relative Humidity: Max. 85%RH.
  • Protection Level
  • Front Panel of Model Panel-mounting: IP65.
  • Model Wall-mounting: IP65.
  • Weight
  • Model Panel-mounting: Approx. 1.5kg.
  • Model Wall-mounting: Approx. 3.4kg.



Model Panel-mounting / Wall-mounting Keypad Operation



     If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.



                                              Menu Operation
Key Name Description

【MENU】

【ESC】

Enter Main Menu.

Exit.

【ENT】

Enter.

Save.

【◄】 Cursor shifts left.
【►】 Cursor shifts right.
【▲】

Cursor shifts up.

Display the previous interface or option.

Digit input: +1.

【▼】

Cursor shifts down.

Display the next interface or option.

Digit input: -1.

                                   Quick Operation

【MENU】*

(【LOCK】)

  • Key-locking.
  • Key-unlocking.

【◄】

(【ADJ+】)

Control Current +1mA.

【►】

(【ADJ-】)

Control Current -1mA.

【◄】*

(【AUTO】)

‘Manual/Auto’ Control Mode Selection.

【►】*

(【EXT】)

‘Internal/External’ Flow Set Mode Selection.

【PRINT】

(【ENT】)

Print

*: Keep the key pressed for 2 seconds.

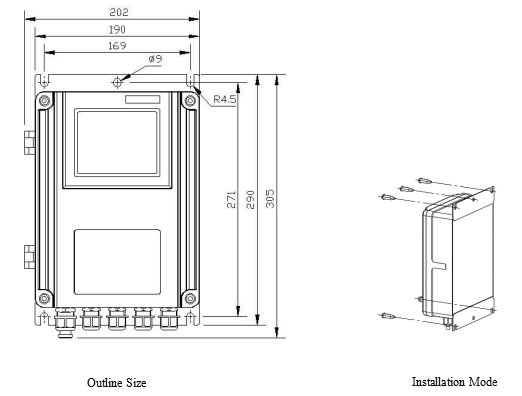

Model Panel-mounting Installation

Electronic Measure Weighing Indicator Controller , Digital Weight Indicator

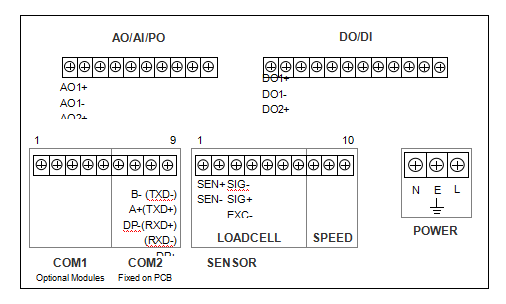

Model Panel-mounting Terminal

Electronic Measure Weighing Indicator Controller , Digital Weight Indicator

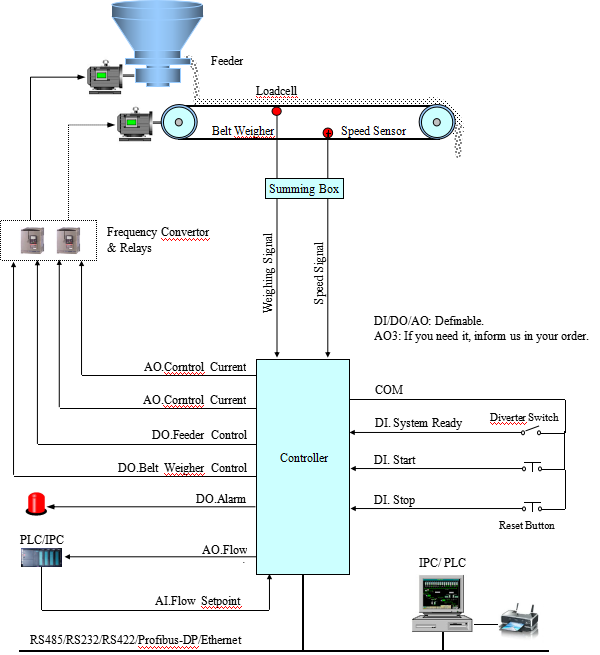

Ration Flow Auto-Feeding System:

Electronic Measure Weighing Indicator Controller , Digital Weight Indicator
