1/4-CH TFT - Touch Force Measuring Weighing Scale Indicator , Digital Weighing Controller

Good quality Batch Weighing Controller for sales
Good quality Batch Weighing Controller for sales
I'm Online Chat Now

1/4-CH TFT - Touch Force Measuring Weighing Scale Indicator , Digital Weighing Controller

China 1/4-CH TFT - Touch Force Measuring Weighing Scale Indicator , Digital Weighing Controller supplier
1/4-CH TFT - Touch Force Measuring Weighing Scale Indicator , Digital Weighing Controller supplier 1/4-CH TFT - Touch Force Measuring Weighing Scale Indicator , Digital Weighing Controller supplier 1/4-CH TFT - Touch Force Measuring Weighing Scale Indicator , Digital Weighing Controller supplier 1/4-CH TFT - Touch Force Measuring Weighing Scale Indicator , Digital Weighing Controller supplier

Large Image :  1/4-CH TFT - Touch Force Measuring Weighing Scale Indicator , Digital Weighing Controller

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-M10(FF)

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: DC24V DI: 7
DO: 18 AO: 4
COM&COM1: RS232 COM2: RS485

1/4-CH TFT-Touch Force Measuring Controller, Electronic Weighing Indicator For Force Measuring System





      Main Features:

  • Suitable for 1-4 Channels Force Measuring System.
  • Optional Peak Detection Modes: Positive Direction Mode / Negative Direction Mode / Double Direction Mode.
  • Optional System Modes: Combination Mode / Respective Mode.
  • Optional Peak Detection Start&Stop Modes: Threshold Mode / DI Switch Mode.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • Cortex-A8 CPU with 600MHz Clock, 128M RAM and 128M Flash.
  • 7”/10.2” Ultralight and ultrathin TFT touch screen with embedded weighing/control module.
  • Loadcell Interface
  • 4 Loadcell ports. Max. Connection Quantity: 4×4 Loadcells (350Ω).
  • 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/130,000 internal resolution and sampling frequency 3200Hz.
  • I/O Interface
  • 7 Definable normally open switch inputs [DI] and 18 definable normally open transistor switch outputs [DO].
  • 4 Definable analog signal AO[0~10V] for force signal output.
  • Digital Communication Interface
  • COM1[RS232]&COM2[RS485] for connecting Host IPC/PLC and LED Remote Display.
  • COM[RS232] for connecting RS232 Serial Printer.
  • USB1 for connecting USB mouse, downloading HMI software from U-disk and copying data to U-disk.
  • Software Function
  • Manual Screen-locking/Screen-unlocking, Auto Screen-locking, Digital Setting&Calibration and I/O Testing functions available.
  • Initial Zero Adjustment after Power-on, Auto Zero Tracking, Zero Fine Adjustment and Zero Calibration functions available.
  • Positive/Negative Load Calibration and Segmenting Span Correction functions available.
  • 100 Recipes for force measuring and control.
  • With the multitasking mode, the measuring&control process will not be interrupted by parameter setting and the other operations.



      Pictures

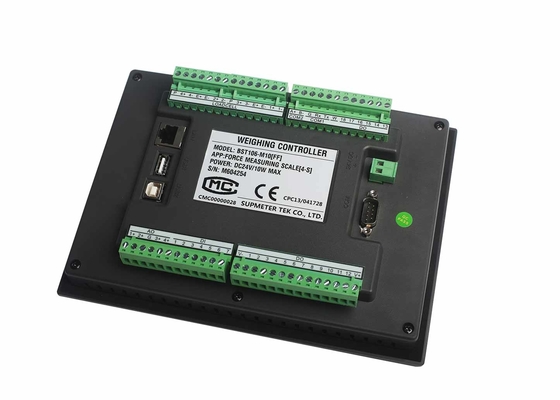

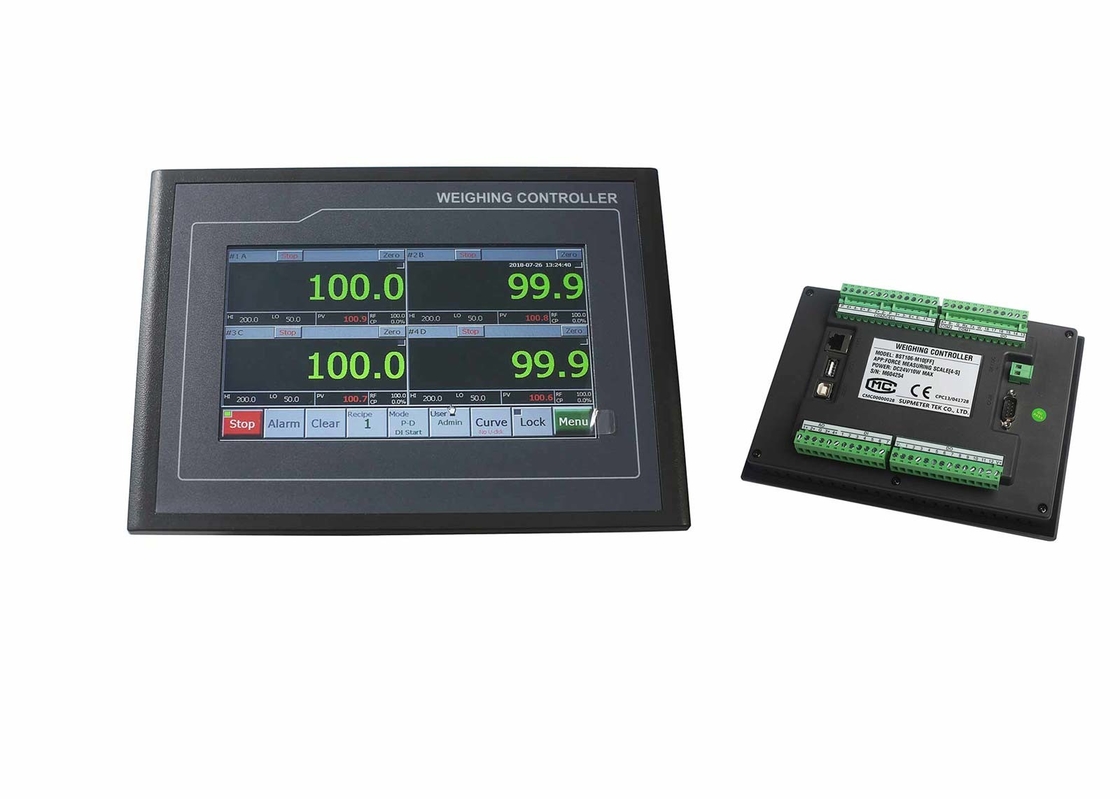

1/4-CH TFT - Touch Force Measuring Weighing Scale Indicator , Digital Weighing Controller

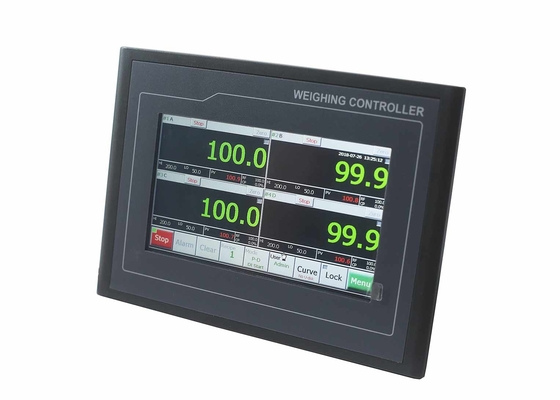

1/4-CH TFT - Touch Force Measuring Weighing Scale Indicator , Digital Weighing Controller

1/4-CH TFT - Touch Force Measuring Weighing Scale Indicator , Digital Weighing Controller

1/4-CH TFT - Touch Force Measuring Weighing Scale Indicator , Digital Weighing Controller

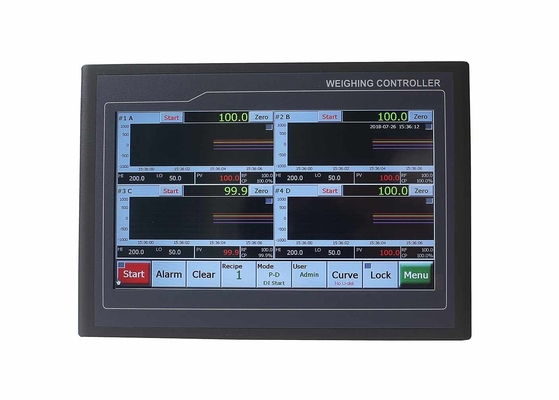

      Main Operation Interface

1/4-CH TFT - Touch Force Measuring Weighing Scale Indicator , Digital Weighing Controller

1/4-CH TFT - Touch Force Measuring Weighing Scale Indicator , Digital Weighing Controller



         Button Operation

Name Operation State Indicator Authorization

【Start】

【Stop】

Start/Stop Peak Detection Process.

Green: Running state.

Grey: Stop state.

All Users
【Menu】 Enter Main Menu.
【Lock】

Screen-locking: Locking/unlocking the operating buttons of main display interface.

Auto Screen-locking: Refer to parameter [901].

Flashing Red: Locked.

Grey: Unlocked.

【User】 User Login. Display: Operator / Engineer / Admin.
[Recipe] ‘Working Recipe No.’ Setting.
【Clear】 Clear Screen.
【Alarm】 Clear Alarm.
【Zero】 Zero Fine Adjustment [No Power-down Protection].
【Curve】 ‘Curve Window Property’ Setting.

Engineer

Administrator

【Mode】

‘Working Mode’ Setting.

Refer ‘6.3.3 Working Mode Parameters’.





        Outline Size
