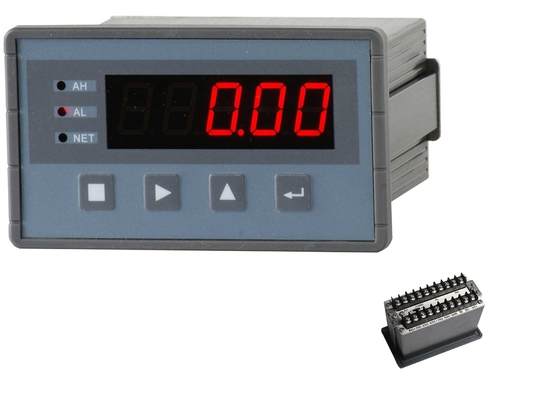

Mini Crane Weight Indicator , Smart Load Batch Controller Overload Protection

Mini Crane Weight Indicator , Smart Load Batch Controller Overload Protection
Mini Crane Weight Indicator , Smart Load Batch Controller Overload Protection Mini Crane Weight Indicator , Smart Load Batch Controller Overload Protection Mini Crane Weight Indicator , Smart Load Batch Controller Overload Protection Mini Crane Weight Indicator , Smart Load Batch Controller Overload Protection

Large Image :  Mini Crane Weight Indicator , Smart Load Batch Controller Overload Protection

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-B60S[C]

Payment & Shipping Terms:

Minimum Order Quantity: 5pc
Price: negotiation
Packaging Details: carton
Delivery Time: 3workdays
Payment Terms: Western Union, T/T
Supply Ability: 10000pcs/month
Detailed Product Description
Power Supply: DC24V Material: Steel
Verfication Accuracy: 0.03% Verification Accuracy: III
Max. Connection Number Of Loadcell: 8 Loadcells (350Ω) Communication Port: COM1:RS232;COM2:RS485
High Light:

weight scale indicator

,

digital indicator with remote display

Mini Crane Overload Protection Controller Digital Scale Indicator With 4 to 20 Am

Main Application:
Crane[Wheel Crane, Travelling Crane,Frame Crane,Bridge Crane and so on] Overloade PRotection
Sound-light Pre-alarm for Weight Hight Limit
Delay-stop for Weight Higher Limit
Emergency-stop for Weight Highest Limit


Main Features:
1:32-bit ARM CPU with 48MHz clock and high arithmetic speed.
2: Auto Zero Tracking
3: Load Calibration & Data Calibration
4: Definable AO/COM[Communication Port]


Technical Specifications:

Power SupplyAC24V±20%
Display5 Red Led Digital Tubes for English&Digit Display
Sampling Frequency640Hz
A/D Convert24-bit
Keypad4 keys for Shortcut mode operation with key tone
Excitation Voltage Output of LoadcellDC12V
Max. Connection number of Loadcell8 Loadcells (350Ω)
[mV]Signal Input Range0-19.5mV
DO2 Normally Open/Closed Relays:AC250V/DC24v,1A
AO1Analog Signal Output: 4~20mA.
Communication PortCOM1:RS232;COM2:RS485
Outline Dimension107 × 60 × 100 mm (W×H×D)
Net Weight Approx. 1.2kg
IP GradeIP65
Verfication Accuracy0.03%
Static Weighing/Force Measuring Accuracy0.2%∼0.5%



Keypad Operation

   If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.


                                                     Menu Operation
Key NameDescription
【■】Enter Main Menu / Exit.
8Enter / Save / Alarm Acknowledge.
【►】

Cursor shifts right.
Display the previous option.

【▲】

Display the next interface or option.
Digit input: +1 ( 0~9 loop).



                                                  Quick Operation
Key NameDescription
【■】*

* Keep the key pressed for 2 seconds:

  • Key-locking.
  • Key-unlocking.

【►】
(【SET】)

Setpoint parameters setting.

【▲】
(【→0←】)
(【ZERO】)

  • [≡ZEro]: Zero Fine Adjustment without Power-down Protection. If the LED light [NZ] turns on, the operation will be invalid.
  • [-ZEro]: Zero Calibration with Power-down Protection.




Mini Crane Overload Protection Controller Digital Scale Indicator with 4 to 20 Am

  • Sound-light Pre-alarm for Weight High Limit
  • Delay-stop for Weight Higher Limit
  • Emergency-stop for Weight Highest Limit

Mini Crane Weight Indicator , Smart Load Batch Controller Overload Protection 0

Operation Interface Diagram:
Mini Crane Weight Indicator , Smart Load Batch Controller Overload Protection 1



Installation:

 ​Mini Crane Weight Indicator , Smart Load Batch Controller Overload Protection 2


Package:
Mini Crane Weight Indicator , Smart Load Batch Controller Overload Protection 3
