Mini 3-D/3-CH Force Measuring Controller Real Time Resultant Force Display

China Mini 3-D/3-CH Force Measuring Controller Real Time Resultant Force Display supplier
Mini 3-D/3-CH Force Measuring Controller Real Time Resultant Force Display supplier Mini 3-D/3-CH Force Measuring Controller Real Time Resultant Force Display supplier Mini 3-D/3-CH Force Measuring Controller Real Time Resultant Force Display supplier Mini 3-D/3-CH Force Measuring Controller Real Time Resultant Force Display supplier

Large Image :  Mini 3-D/3-CH Force Measuring Controller Real Time Resultant Force Display

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-B60R(F)

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS

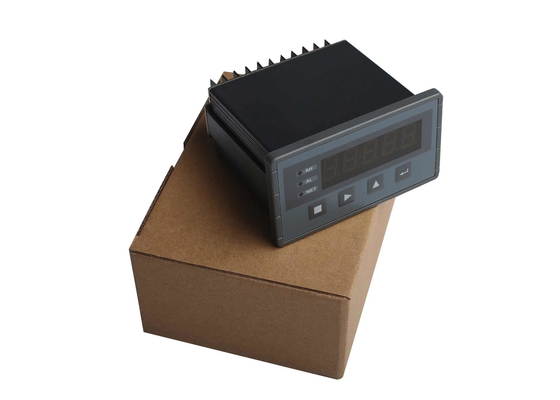

Packaging Details: 1pcs/box
Delivery Time: 3-30 working days
Payment Terms: T/T, Western Union
Supply Ability: 500PCS per month
Contact Now
Detailed Product Description
Power Supplier: DC24V Loadcell: 8 Loadcell Connectable (350ohm)
DI: 4 DO: 2
COM: RS232&RS485

Mini 3-D/3-CH Force Measuring Controller For 3-Channel Real-time Force Values & Real-time Resultant Force Display



Main Applications

  • 1-3 Channels Force Measuring System.
  • 3-Channel Real-time Force Values & Resultant Force Display.
  • 3-Channel Peak Values & Resultant Force Peak Value Display.
  • Resultant Force/Peak Upper/Lower Limit DO Alarm.
  • RS232/RS485 Digit Transmission.
  • 3-D Resultant Force Algorithm [F2=X2+Y2+Z2].
  • Cumulative Sum Resultant Force Algorithm [F=X+Y+Z].



Main Features

  • EMC design with high anti-jam for industrial environment.
  • DC24V power input with reverse polarity protection.
  • 32-bit ARM CPU with 48MHz clock & high arithmetic speed.
  • 2×16 LCD display screen for English/Digit display.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • High sampling frequency 1280Hz.
  • Optional Special Anti-vibration Digital Filtering Algorithm for precise force measuring, stable display and rapid response.
  • Auto Zero Tracking.
  • Load Calibration & Data Calibration.
  • Definable COM[Communication Port].



Technical Specification

  • Executing Standard
  • CMC GB/T 7724-2008PRC National Standard.
  • OMIL R76: 2006International Recommendation.
  • Accuracy Grade: III.
  • Verification Accuracy: 0.03%.
  • Static Force Measuring Accuracy: 0.2%~0.5%.
  • Display

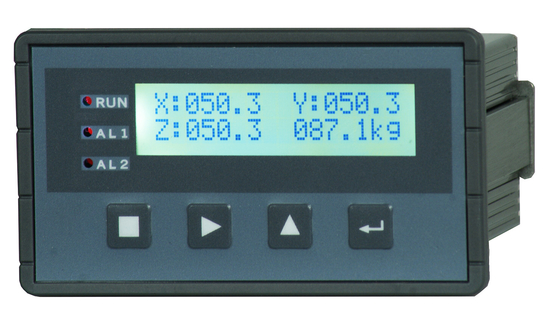

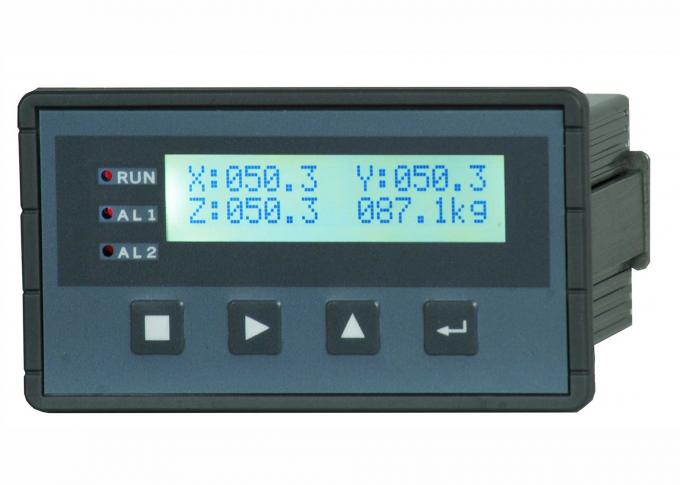

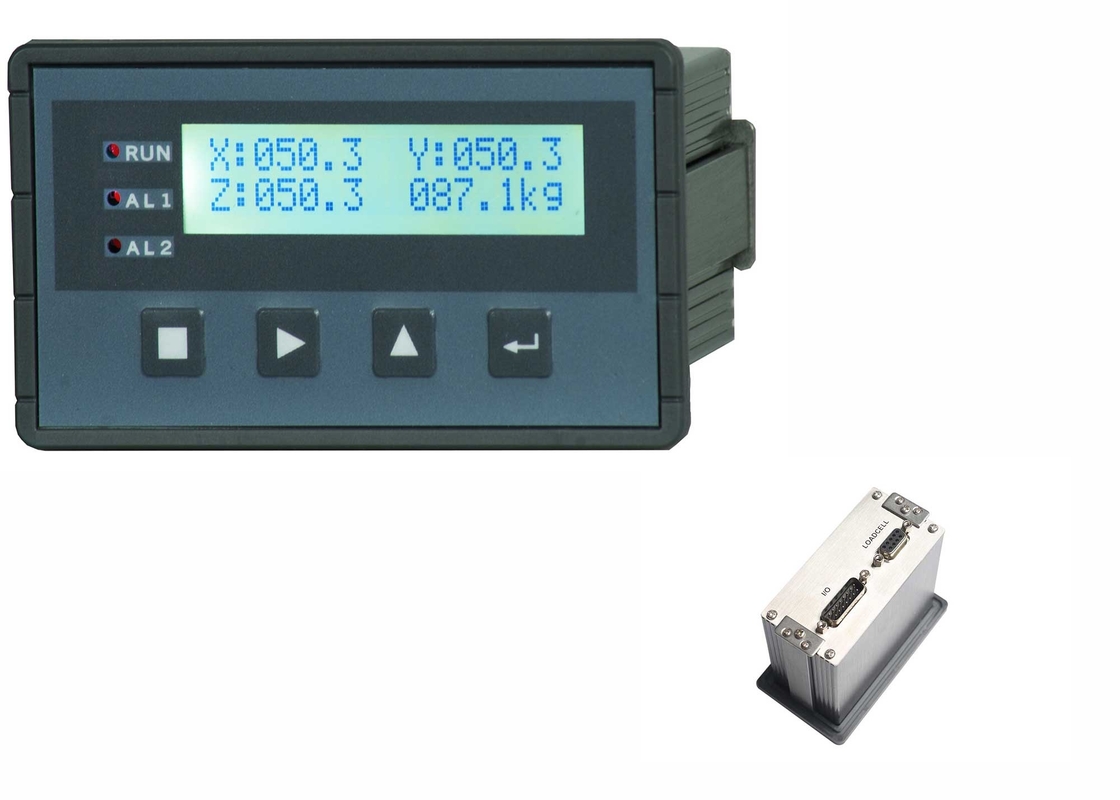

  • 2×16 LCD display screen with white LED background for English/Digit display.
  • Channel X/Y/Z Force Value Display Range: -5000~+5000.
  • Resultant Force Display Range: 0~9999.
  • Channel X/Y/Z Force Capacity: Setting Range 1~5000.
  • Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500.
  • Display Resolution: 1/5000.
  • Force Value Unit: Optional kg, t, g, N, kN, none.
  • Decimal Point: Optional 0, 0.0, 0.00, 0.000.
  • Display Refreshing Time: Setting Range 0.01~1.00s.
  • Kaypad
  • 4-key keypad for shortcut operation.

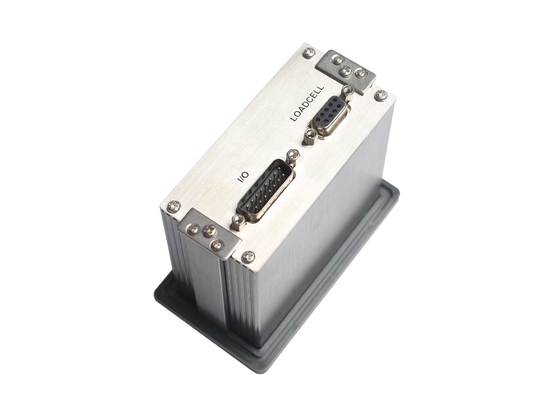

  • Channel X/Y/Z Loadcell Interface
  • Excitation Voltage/Max. Current: DC5V/120mA [4-350Ω loadcells].
  • Signal Input Range: ±35mV.
  • Output Sensitivity of Loadcell: 1.0~7.0mV/V.
  • 24-bit ∑-△ADC with internal resolution 1/1,000,000.
  • Sampling Frequency: 1280Hz.
  • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  • Gain Drift: ±5ppm/℃.
  • Non-linearity: 0.005%FS.
  • Switch Signal Interface
  • 4 Normally Open Switch Inputs [DI].
  • 2 Transistor Switch Outputs [DO] for Real-time Resultant Force or Resultant Force Peak Value Upper/Lower Limit Alarm.
  • The Contact of Transistor Switches can be defined as ‘Normally Open’ or ‘Normally Closed’.
  • Contact Capacity of Transistor Switch: DC24V, 10mA.
  • Digital Communication Interface
  • COM1: Fixed configuration RS485&RS232. Free to select one of them via internal DIP switch.
  • Connectable: Host IPC/PLC and LED Remote Display.



Operating Specification

  • Operating Voltage: DC24V±20%.
  • Max. Power Consumption: 5W.
  • Outline Size: 107×60×100mm [W×H×D].
  • Panel Cut-out Size: 94×47 mm [W×H].
  • Operating Temperature: -10℃ to +40℃.
  • Storage Temperature: -30℃ to +60℃.
  • Relative Humidity: Max. 85%RH.
  • Protection Level of Front Panel: IP65.
  • Weight: Approx. 0.25kg.

Keypad Operation

    If there is not any keypad operation in one minute and it’s not in the processes of ‘System Calibration [CAL]’ & ‘Factory Adjustment [FAC]’, the controller will return to ‘Main Display Interface’ automatically.

Quick Operation
Key Name Operation Description
【■】 【SET】

Parameter Setting:

  • [SCAL]: Force measuring parameters setting.
  • [SETP]: Setpoint parameters setting.
  • [CALP]: Calibration parameters setting.
  • [COMM]: Communication parameters setting.
  • [DISP]: Display and operation interface parameters setting.
Exit.
【►】 【►】 Cursor shifts right; Display the previous option.
【▲】 【▲】

Cursor shifts right; Display the next option.

Digit input: +1 ( 0~9 loop).

8 【ENT】 Enter / Save.



                            *Keep the following keys pressed for 2 seconds
Key Name Operation Description

【■】

*

【LOCK】

*

  • Key-locking: Display sign ‘θ’.
  • Key-unlocking.

【►】

*

【CAL】

*

System Calibration:

  • [ZERO]: Zero Calibration for Channel X&Y&Z.
  • [DATA]: Data Calibration for Channel X&Y&Z.
  • [LOAD]: Load Calibration for Channel X&Y&Z.
  • [LD_X]/[LD_Y]/[LD_Z]: Load Calibration for Channel X/Y/Z.

Refer to ‘6.2 System Calibration’.

【▲】

*

【CLS】

*

Clear Screen:

[YES]: Clear the display value of Peak Value.

[NO]: Exit.

Refer to ‘6.3 Clear Screen’.

8

*

【FAC】

*

Factory Adjustment:

  • [SPAN]: Exfactory Span Adjustment [Special for Manufacturer].
  • [ADTS]: AD Value of Force Signal Linearity Test.
  • [DIDO]: DI/DO Test.
  • [DEFU]: Reset all parameters to factory defaults.
  • [DISP]: Display/DO Reliability Test.





Mini 3-D/3-CH Force Measuring Controller For 3-Channel Real-time Force Values & Real-time Resultant Force Display

Mini 3-D/3-CH Force Measuring Controller Real Time Resultant Force Display
