Power Supply: AC220V Weighing Signal Input Range: 0-25mA
DI: 3 DO: 4
COM1: Optional RS232/RS485/Ethernet COM2: RS232

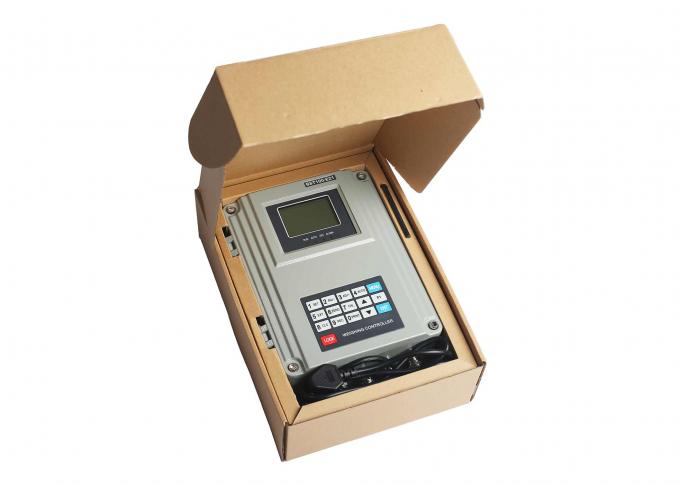

Dust-proof Belt Scale Controller With Ration Flow Feeding And Weight Totalizing

    Technical Specification

  • Executing Standard
  • CMC GB/T 7724-2008PRC National Standard.

² OMIL R50:1997International Recommendation.

² Accuracy Grade: 0.5.

² Accuracy of Flow Control: 0.5%~1.0%.

  • Display
  • 128×64 LCD display screen with 7 background colors for English display.
  • Display Refreshing Time: Setting Range 0.1~2.0s.
  • Kaypad
  • 16-key English keypad.
  • Menu&Shortcut operation with key tone.
  • Loadcell Interface
  • Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].
  • Signal Input Range: 0~25mV.
  • ∑-△ADC: 24-bit, 100,000 internal code used.
  • Sampling Frequency: 200Hz.
  • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  • Gain Drift: ±5ppm/℃.
  • Non-linearity: 0.005%FS.
  • Speed Sensor Interface
  • Output Voltage/Max. Current: DC12V/100mA.
  • Speed Pulse Input Range: 0.5~3000Hz.
  • Switch Signal Interface
  • 3 Normally Open Switch Inputs [DI].
  • 4 Normally Open Relay Switch Outputs [DO]: AC250V/DC24V, 1A.
  • 1 ‘Totalized Weight High-speed Pulse’ Output [PO]: 100mA, DC5~24V; Weight per Pulse and Pulse Width can be preset.
  • Analog Signal Interface
  • Max.3 Definable ‘Flow/Control Current /…’ Analog Signal Outputs [AO]: 4~20mA, Non-linearity: 0.05%FS; AO3 is optional.
  • 1 Optional ‘Flow Setpoint’ Analog Signal Input [AI]: 4~20mA, Non-linearity: 0.05%FS.
  • Digital Communication Interface
  • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet modules.
  • COM2: RS232.
  • Connectable: IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
  • Report Print
  • Weight Records per shift/day/month of a year can be queried and printed.
  • Operating Specification
  • Operating Voltage: AC220V±15%, 50/60Hz.
  • Max. Power Consumption: 15W.
  • Outline Size
  • Model Horizontal Panel-mounting: 164×86×193mm [W×H×D].
  • Model Vertical Panel-mounting: 86×164×193mm [W×H×D].
  • Model Wall-mounting: 202×305×90mm [W×H×D].
  • Panel Cut-out Size
  • Model Horizontal Panel-mounting: 153×77mm [W×H].
  • Model Vertical Panel-mounting: 77×153mm [W×H].
  • Operating Temperature: -25℃ to +45℃.
  • Storage Temperature: -30℃ to +60℃.
  • Relative Humidity: Max. 85%RH.
  • Protection Level
  • Front Panel of Model Panel-mounting: IP65.
  • Model Wall-mounting: IP65.
  • Weight
  • Model Panel-mounting: Approx. 1.7kg.
  • Model Wall-mounting: Approx. 3.4kg.


     Pictures

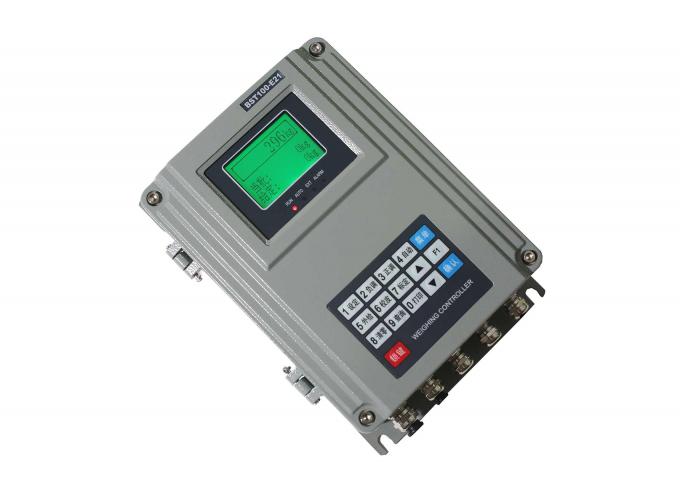

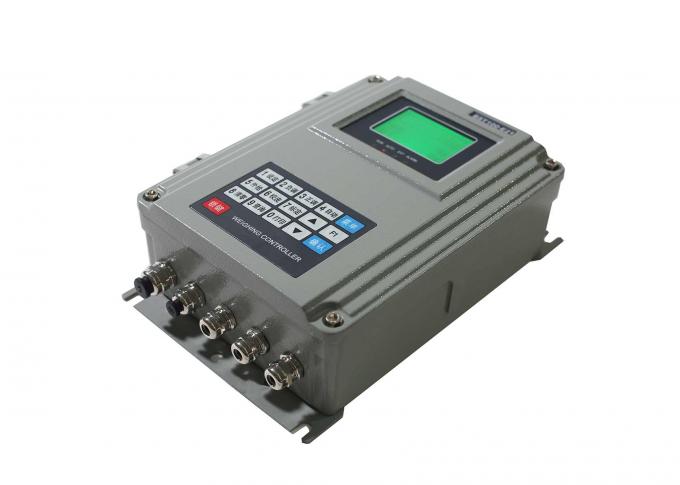

Weight Totalizing Weighing Indicator Controller , Load Cell Controller Indicator
Weight Totalizing Weighing Indicator Controller , Load Cell Controller Indicator
Weight Totalizing Weighing Indicator Controller , Load Cell Controller Indicator
Weight Totalizing Weighing Indicator Controller , Load Cell Controller Indicator

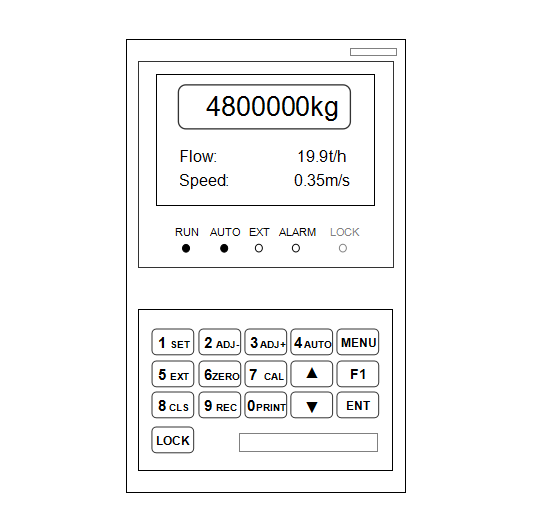

     Model Wall-mounting Operation Interface
Weight Totalizing Weighing Indicator Controller , Load Cell Controller Indicator

          Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.


Menu Operation
Key NameDescription

【MENU】
(【ESC】)

Enter Main Menu.

Exit.

【ENT】Enter/Save.
【▲】

Cursor shifts up or left.

Display the previous interface or option.

【▼】

Cursor shifts down or right.

Display the next interface or option.

【0~9】Digit Input.
Quick Operation
【LOCK】
  • Key-locking.
  • Key-unlocking.
【F1】Return to the initial display interface.
【SET】Flow Set Value Setting.
【ADJ-】Control Current -1mA.
【ADJ+】Control Current +1mA.
【AUTO】‘Manual/Auto’ Control Mode Selection.
【EXT】‘Internal/External’ Flow Set Mode Selection.
【ZERO】Zero Calibration.
【CAL】Dynamic Span Calibration.
【CLS】Clear Screen: Clear display value of Totalized Weight.
【REC】Query and print Weight Record.
【PRINT】Print.



          State Indication

LED LampDescription
[RUN]

ON: Weighing state.
OFF: Stopping state.

[AUTO]

Feeding control mode:
ON: Auto [PID].
OFF: Manual.

[EXT]

Flow Set Mode:
ON: External [AI: 4~20mA].
OFF: Internal.

[ALARM]Alarm.
[LOCK]

ON: Key-locked.
OFF: Key-unlocked.

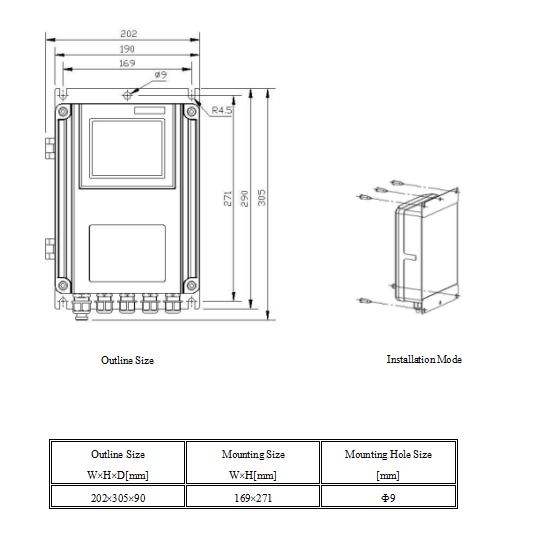

          Model Wall-mounting Installation
Weight Totalizing Weighing Indicator Controller , Load Cell Controller Indicator

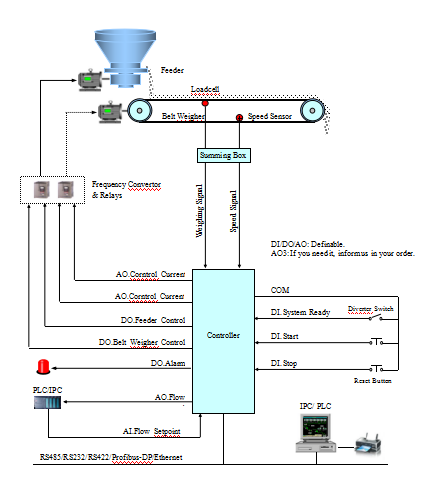

         Ration Flow Auto-Feeding System
Weight Totalizing Weighing Indicator Controller , Load Cell Controller Indicator
