Industrial Digital Weighing Indicator Instrument Controller High Accuracy Flow Control

Good quality Batch Weighing Controller for sales
Good quality Batch Weighing Controller for sales
I'm Online Chat Now

Industrial Digital Weighing Indicator Instrument Controller High Accuracy Flow Control

China Industrial Digital Weighing Indicator Instrument Controller High Accuracy Flow Control supplier
Industrial Digital Weighing Indicator Instrument Controller High Accuracy Flow Control supplier Industrial Digital Weighing Indicator Instrument Controller High Accuracy Flow Control supplier Industrial Digital Weighing Indicator Instrument Controller High Accuracy Flow Control supplier Industrial Digital Weighing Indicator Instrument Controller High Accuracy Flow Control supplier Industrial Digital Weighing Indicator Instrument Controller High Accuracy Flow Control supplier

Large Image :  Industrial Digital Weighing Indicator Instrument Controller High Accuracy Flow Control

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST100-E01

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 1pcs/box
Delivery Time: 3-10 working days
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Power Supply: AC220V DI: 3
DO: 4 AO: 2
AI: 1

Industrial Digital Weighing Indicator Instrument Controller High Accuracy Flow Control



Technical Specification

  • Executing Standard
  • CMC GB/T 7724-2008PRC National Standard.

² OMIL R50:1997International Recommendation.

² Accuracy Grade: 0.5.

² Accuracy of Flow Control: 0.5%~1.0%.

  • Display
  • 128×64 LCD display screen with 7 background colors for English display.
  • Display Refreshing Time: Setting Range 0.1~2.0s.
  • Kaypad
  • 16-key English keypad.
  • Menu&Shortcut operation with key tone.
  • Loadcell Interface
  • Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].
  • Signal Input Range: 0~25mV.
  • ∑-△ADC: 24-bit, 100,000 internal code used.
  • Sampling Frequency: 200Hz.
  • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  • Gain Drift: ±5ppm/℃.
  • Non-linearity: 0.005%FS.
  • Speed Sensor Interface
  • Output Voltage/Max. Current: DC12V/100mA.
  • Speed Pulse Input Range: 0.5~3000Hz.
  • Switch Signal Interface
  • 3 Normally Open Switch Inputs [DI].
  • 4 Normally Open Relay Switch Outputs [DO]: AC250V/DC24V, 1A.
  • 1 ‘Totalized Weight High-speed Pulse’ Output [PO]: 100mA, DC5~24V; Weight per Pulse and Pulse Width can be preset.
  • Analog Signal Interface
  • Max.3 Definable ‘Flow/Control Current /…’ Analog Signal Outputs [AO]: 4~20mA, Non-linearity: 0.05%FS; AO3 is optional.
  • 1 Optional ‘Flow Setpoint’ Analog Signal Input [AI]: 4~20mA, Non-linearity: 0.05%FS.
  • Digital Communication Interface
  • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet modules.
  • COM2: RS232.
  • Connectable: IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
  • Report Print
  • Weight Records per shift/day/month of a year can be queried and printed.
  • Operating Specification
  • Operating Voltage: AC220V±15%, 50/60Hz.
  • Max. Power Consumption: 15W.
  • Outline Size
  • Model Horizontal Panel-mounting: 164×86×193mm [W×H×D].
  • Model Vertical Panel-mounting: 86×164×193mm [W×H×D].
  • Model Wall-mounting: 202×305×90mm [W×H×D].
  • Panel Cut-out Size
  • Model Horizontal Panel-mounting: 153×77mm [W×H].
  • Model Vertical Panel-mounting: 77×153mm [W×H].
  • Operating Temperature: -25℃ to +45℃.
  • Storage Temperature: -30℃ to +60℃.
  • Relative Humidity: Max. 85%RH.
  • Protection Level
  • Front Panel of Model Panel-mounting: IP65.
  • Model Wall-mounting: IP65.
  • Weight
  • Model Panel-mounting: Approx. 1.7kg.
  • Model Wall-mounting: Approx. 3.4kg.

Industrial Digital Weighing Indicator Instrument Controller High Accuracy Flow Control
Industrial Digital Weighing Indicator Instrument Controller High Accuracy Flow Control
Industrial Digital Weighing Indicator Instrument Controller High Accuracy Flow Control
Industrial Digital Weighing Indicator Instrument Controller High Accuracy Flow Control

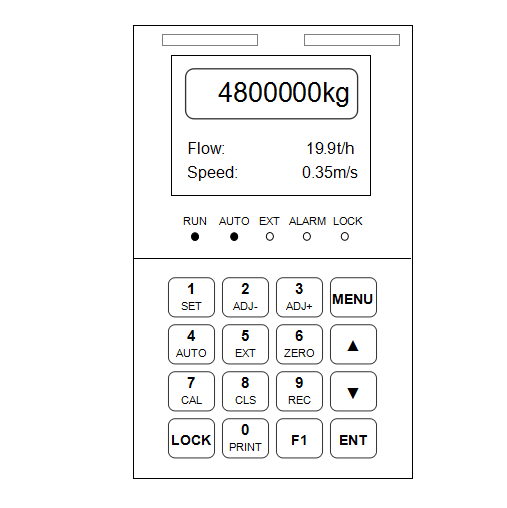

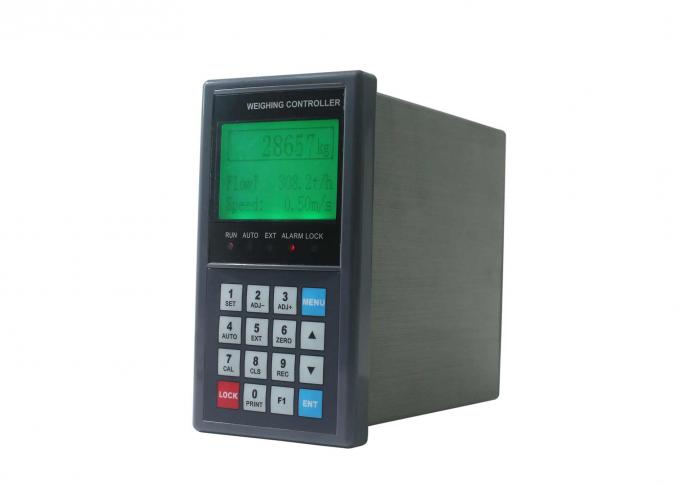

     Model Vertical Panel-mounting Operation Interface

Industrial Digital Weighing Indicator Instrument Controller High Accuracy Flow Control


       Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the controller will return to ‘Main Display Interface’ automatically.


Menu Operation
Key Name Description

【MENU】
(【ESC】)

Enter Main Menu.

Exit.

【ENT】 Enter/Save.
【▲】

Cursor shifts up or left.

Display the previous interface or option.

【▼】

Cursor shifts down or right.

Display the next interface or option.

【0~9】 Digit Input.
Quick Operation
【LOCK】
  • Key-locking.
  • Key-unlocking.
【F1】 Return to the initial display interface.
【SET】 Flow Set Value Setting.
【ADJ-】 Control Current -1mA.
【ADJ+】 Control Current +1mA.
【AUTO】 ‘Manual/Auto’ Control Mode Selection.
【EXT】 ‘Internal/External’ Flow Set Mode Selection.
【ZERO】 Zero Calibration.
【CAL】 Dynamic Span Calibration.
【CLS】 Clear Screen: Clear display value of Totalized Weight.
【REC】 Query and print Weight Record.
【PRINT】 Print.



        State Indication

LED Lamp Description
[RUN]

ON: Weighing state.
OFF: Stopping state.

[AUTO]

Feeding control mode:
ON: Auto [PID].
OFF: Manual.

[EXT]

Flow Set Mode:
ON: External [AI: 4~20mA].
OFF: Internal.

[ALARM] Alarm.
[LOCK]

ON: Key-locked.
OFF: Key-unlocked.

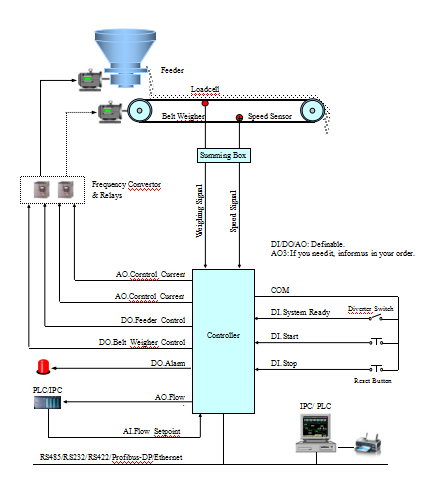

       Ration Flow Auto-Feeding System
