Wall Mounted VFD Electronic Weight Indicator , Steel Load Cell Controller

Warning: Illegal string offset 'layout' in /data/www/trade/tradeweb/protected/components/SeoHtml.php on line 544 Good quality Batch Weighing Controller for sales
Warning: Illegal string offset 'layout' in /data/www/trade/tradeweb/protected/components/SeoHtml.php on line 544 Good quality Batch Weighing Controller for sales
I'm Online Chat Now

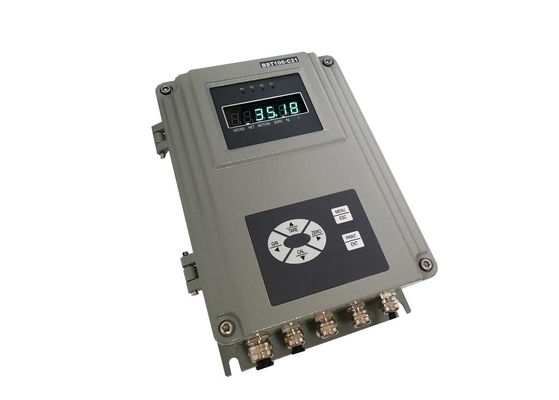

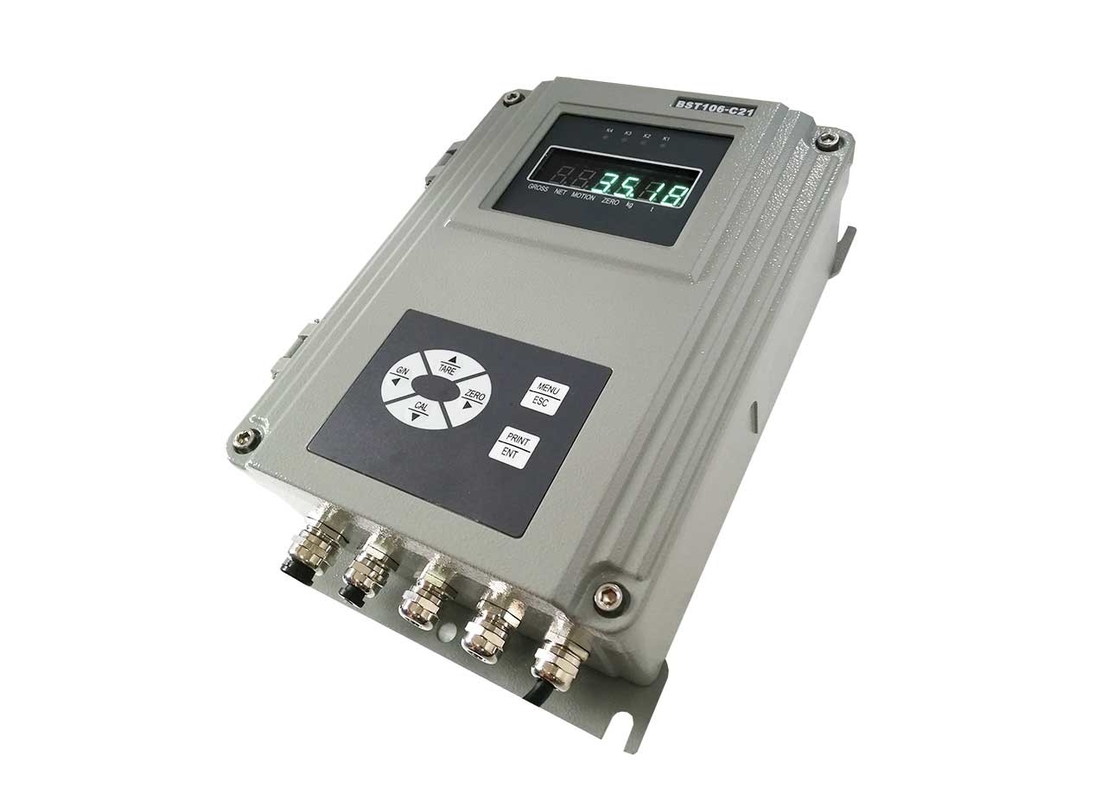

Wall Mounted VFD Electronic Weight Indicator , Steel Load Cell Controller

China Wall Mounted VFD Electronic Weight Indicator , Steel Load Cell Controller supplier
Wall Mounted VFD Electronic Weight Indicator , Steel Load Cell Controller supplier Wall Mounted VFD Electronic Weight Indicator , Steel Load Cell Controller supplier Wall Mounted VFD Electronic Weight Indicator , Steel Load Cell Controller supplier Wall Mounted VFD Electronic Weight Indicator , Steel Load Cell Controller supplier

Large Image :  Wall Mounted VFD Electronic Weight Indicator , Steel Load Cell Controller

Product Details:

Place of Origin: China
Brand Name: Supmeter
Certification: CE
Model Number: BST106-C21

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: carton
Delivery Time: 3workdays
Payment Terms: Western Union, T/T
Supply Ability: 6000pcs/month
Contact Now
Detailed Product Description
Power Supply: AC220V Material: Steel
Static Weighing Accuracy: 0.2%∼0.5% Verification Accuracy: III
Output: 4 Normally Open Transistor Switch Outputs Input: 3 Normally Open Switch Inputs
Max. Connection Number Of Loadcell: 8 Loadcells (350Ω)

VFD Electronic Wall-Mounting Digital Scale Indicator With High-Frequency Sampling

Main Application:

Material Level Scale, Hopper Scale&Platform Scale

Weight Limit DO Alarm Mode

Weight Increment/Decrement DO Output Mode





Main Features:

1: Auto Zero Tracking

2: Load Calibration&Data Calibration

3: The Weighing Record can be printed

4: Definable AO/COM[Communication Port]





Technical Specifications:

Power Supply AC220v
Display 6 VFD Digital Tubes for English and Digit Display
Sampling Frequency 200Hz
A/D Convert 24-bit
Keypad 6 keys for Menu&Shortcut mode operation with key tone
Excitation Voltage Output of Loadcell DC10V
Max. Connection number of Loadcell 8 Loadcells (350Ω)
DI 3 Normally Open Switch Inputs
DO 4 Normally Open Transistor Switch Outputs
AO 1 Optional and Definable Analog Signal Output: 4~20mA.
Communication Port

COM1:Fixed RS232&RS485,Free to use one of them;

COM2:Optional RS232/RS485/RS422/Profibus-DP/Ethernet

Outline Dimension 170× 91 × 184 mm (W×H×D)
Net Weight Approx. 2kg
IP Grade IP65
Verification Accuracy 0.02%
Static Weighing Accuracy 0.2%-0.5%





Keypad Operation

   If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.

Menu Operation
Key Name Description

【MENU】

【ESC】

(【LOCK】)

Enter Main Menu.

Exit.

Keep it pressed for 2 seconds: Key-locking / Key-unlocking.

【ENT】 Enter/Save/Alarm Acknowledge.
【◄】 Cursor shifts left.
【►】 Cursor shifts right.
【▲】

Display the previous option.

Digit input: +1.

【▼】

Display the next option.

Digit input: -1.

Quick Operation
【G/N】 APL0 Hopper Weighing Mode: Gross Weight / Net Weight display switch.

APL1 Ration Feeding/Batching Mode: Gross Weight / Net Weight / Feeding Weight display Switch.

  • [A./b./c.]: Feeding Weight of Material M1/M2/M3.
  • [t.]: Total Feeding Weight.
【ZERO】
  • [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
  • [≡ZEro≡]: Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight.
  • The controller will switch to Gross Weight display.
【TARE】
  • [≡tArE≡]: Manual Tare without Power-down Protection.
  • [-PStr-]: Preset Tare Weight with Power-down Protection.
  • [-rStr-]: Clear Tare Weight with Power-down Protection.
  • The controller will switch to Net Weight display.
【CAL】
  • [-LoAd-]: Load Calibration.
【▲】【▼】* * Keep it pressed for 2 seconds: Setpoint parameters setting.
【PRINT】 Print Weighing/Batching Report.





Keypad Operation

   If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 System Calibration’ & ‘F6 Factory Adjustment’, the controller will return to ‘Main Display Interface’ automatically.

Menu Operation
Key Name Description

【MENU】

【ESC】

(【LOCK】)

Enter Main Menu.

Exit.

Keep it pressed for 2 seconds: Key-locking / Key-unlocking.

【ENT】 Enter/Save/Alarm Acknowledge.
【◄】 Cursor shifts left.
【►】 Cursor shifts right.
【▲】

Display the previous option.

Digit input: +1.

【▼】

Display the next option.

Digit input: -1.

Quick Operation
【G/N】 APL0 Hopper Weighing Mode: Gross Weight / Net Weight display switch.

APL1 Ration Feeding/Batching Mode: Gross Weight / Net Weight / Feeding Weight display Switch.

  • [A./b./c.]: Feeding Weight of Material M1/M2/M3.
  • [t.]: Total Feeding Weight.
【ZERO】
  • [-ZEro-]: Zero Calibration with Power-down Protection and Clearing Tare Weight.
  • [≡ZEro≡]: Zero Fine Adjustment without Power-down Protection and without Clearing Tare Weight.
  • The controller will switch to Gross Weight display.
【TARE】
  • [≡tArE≡]: Manual Tare without Power-down Protection.
  • [-PStr-]: Preset Tare Weight with Power-down Protection.
  • [-rStr-]: Clear Tare Weight with Power-down Protection.
  • The controller will switch to Net Weight display.
【CAL】
  • [-LoAd-]: Load Calibration.
【▲】【▼】* * Keep it pressed for 2 seconds: Setpoint parameters setting.
【PRINT】 Print Weighing/Batching Report.


VFD Panel-mounting Operation Interface:

Wall Mounted VFD Electronic Weight Indicator , Steel Load Cell Controller

Panel-mounting Installation: Wall Mounted VFD Electronic Weight Indicator , Steel Load Cell Controller

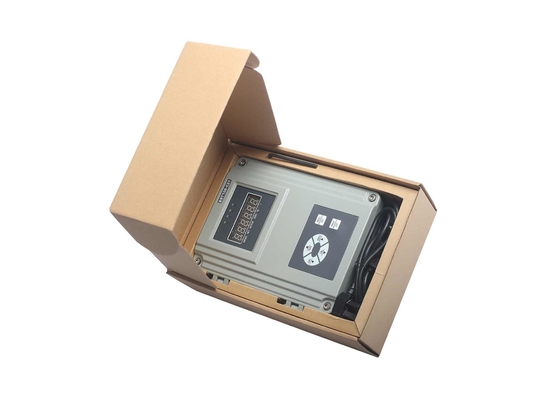

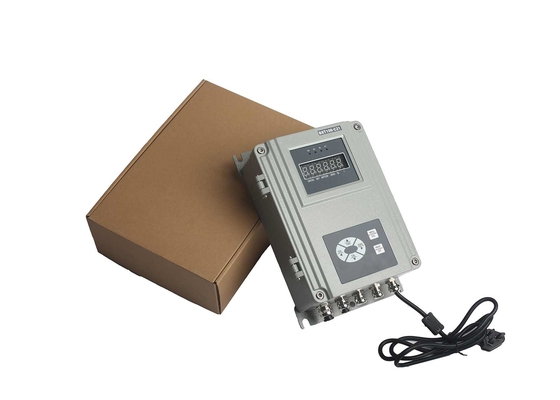

Package:
