Operating Voltage: AC220V±15%, 50/60Hz Accuracy Grade: 0.5
Protection Level: IP65 Max. Power Consumption: 10W
Model Panel-mounting: Approx. 1.3kg. Operating Temperature: -25℃ To +45℃
Storage Temperature: -30℃ To +60℃

High-frequency Sampling Anti-vibration Filter Belt Weigher Indicator With Weight Totalizing



    1. Main Features:

  • Suitable for belt weigher.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • 32-bit ARM CPU with 72MHz & higher arithmetic speed.
  • 160×32 dots LCD display screen with yellow-green background for English display.
  • Menu&Shortcut mode operation with key tone.
  • High-precision ∑-△A/D conversion technology and broad-range speed pulse input circuit.
  • Max. Connection Quantity: 8 Loadcells (350Ω).
  • Auto-locking, Key-locking, Key-unlocking and Digital Setting&Calibration functions available.
  • Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
  • Optional AO [4~20mA] module for Flow signal output (COM1 port will be occupied).
  • 2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
  • Corrosion-proof, water-proof, dust-proof and shock-proof shell for model wall-mounting.
  • Weight Records per shift/day/month of a year can be queried and printed.
  • With the multitasking mode, the weighing process will not be interrupted by parameter setting and the other operations.

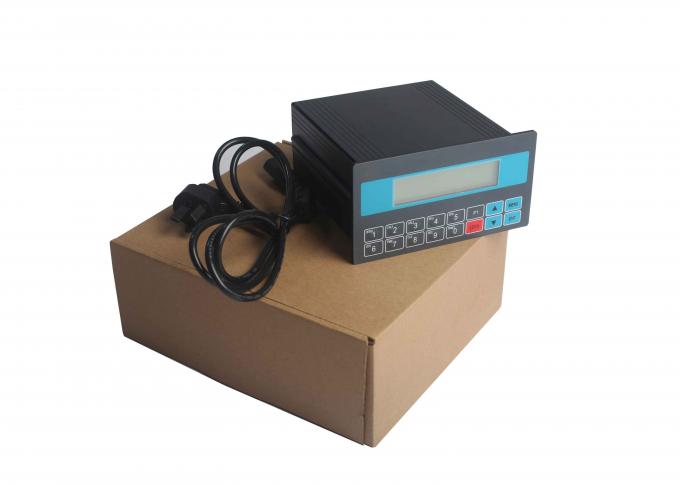

High Frequency Sampling Belt Scale Controller With Anti Vibration Filter

High Frequency Sampling Belt Scale Controller With Anti Vibration Filter

High Frequency Sampling Belt Scale Controller With Anti Vibration Filter

   2. Technical Specification

  • Executing Standard
  • CMC GB/T 7724-2008PRC National Standard.

² OMIL R50:1997International Recommendation.

  • Accuracy Grade: 0.5.
  • Display
  • 160×32 dots LCD display screen with yellow-green background for English display.
  • Display Refreshing Time: Setting Range 0.1~2.0s.
  • Kaypad
  • 16-key English keypad.
  • Menu&Shortcut operation with key tone.
  • Loadcell Interface
  • Excitation Voltage/Max. Current: DC10V/250mA [8-350Ω loadcells].
  • Signal Input Range: 0~25mV.
  • Sampling Frequency: 200Hz.
  • ∑-△ADC: 24-bit, 100,000 internal code used.
  • Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
  • Gain Drift: ±5ppm/℃.
  • Non-linearity: 0.005%FS.
  • Speed Sensor Interface
  • Output Voltage/Max. Current: DC12V/100mA.
  • Speed Pulse Input Range: 0.5~3000Hz.
  • Analog Signal Interface
  • Optional AO [4~20mA] module for Flow signal output.
  • COM1 port will be occupied.
  • Non-linearity: 0.05%FS.
  • Digital Communication Interface
  • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet modules.
  • COM2: RS232.
  • Connectable: IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
  • Report Print
  • Weight Records per shift/day/month of a year can be queried and printed.

  • Operating Specification
  • Operating Voltage: AC220V±15%, 50/60Hz.
  • Max. Power Consumption: 10W.
  • Outline Size
  • Model Panel-mounting: 170×91×184 mm [W×H×D].
  • Model Wall-mounting: 235.5×227.5×119.5mm [W×H×D].
  • Model Explosion-proof: 340×390×205mm [W×H×D].
  • Panel Cut-out Size
  • Model Panel-mounting: 151×76mm [W×H].
  • Operating Temperature: -25℃ to +45℃.
  • Storage Temperature: -30℃ to +60℃.
  • Relative Humidity: Max. 85%RH.
  • Application Environment of Model Explosion-proof
  • Explosion gas environment: Zone 1&2.
  • Classes of explosion gas mixture: IIA, IIB.
  • Temperature grades of explosion gas mixture: T1~T6.
  • Ex-mark: Ex d IIB T6 Gb.
  • Protection Level
  • Front Panel of Model Panel-mounting: IP65.
  • Model Wall-mounting: IP65.
  • Model Explosion-proof: IP65.
  • Weight
  • Model Panel-mounting: Approx. 1.3kg.
  • Model Wall-mounting: Approx. 1.8kg.
  • Model Explosion-proof: Approx. 19.2kg.

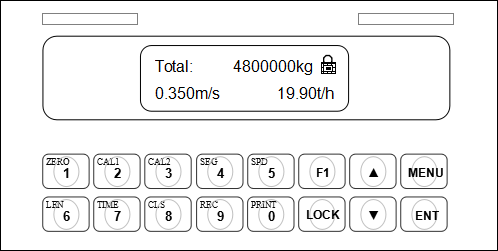

    3. Operation Interface

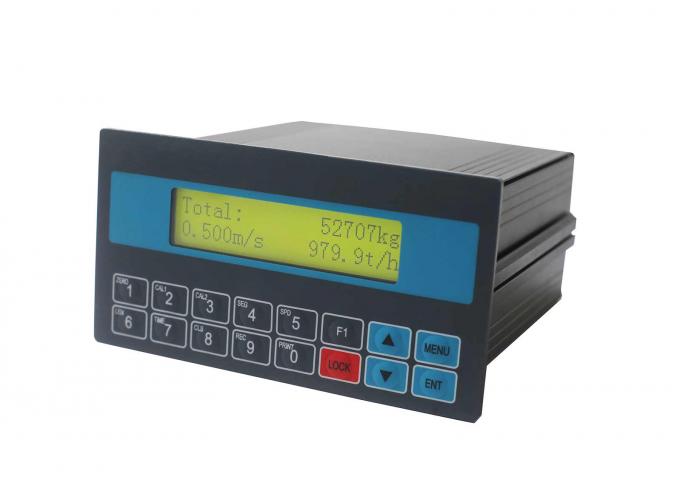

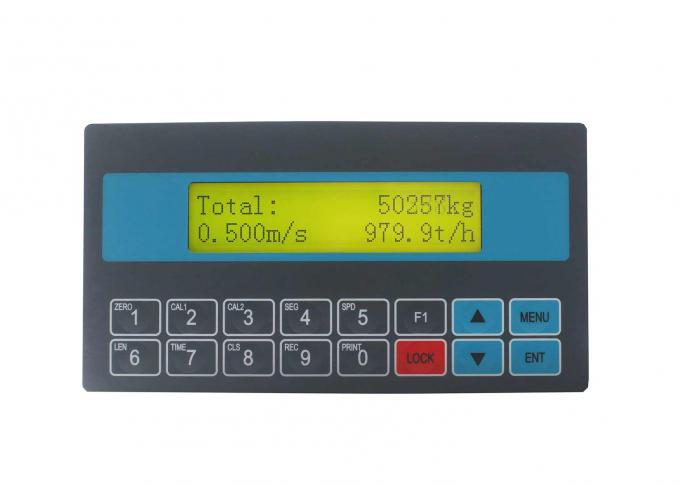

    3.1 Model Panel-mounting / Wall-mounting Operation Interface

High Frequency Sampling Belt Scale Controller With Anti Vibration Filter





3.2 Model Panel-mounting / Wall-mounting Keypad Operation

If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the Indicator will return to ‘Main Display Interface’ automatically.



Menu Operation
Key Name Description
【MENU】 Enter Main Menu / Exit.
【ENT】

Enter/Save.

Return to the initial display interface.

【▲】

Cursor shifts up or left.

Display the previous interface or option.

【▼】

Cursor shifts down or right.

Display the next interface or option.

【0~9】 Digit Input.
Quick Operation
【LOCK】

Key-locking.

Key-unlocking.

【F1】 Static Span Calibration with Hanging Weight.
【ZERO】 Zero Calibration.
【CAL1】 Dynamic Span Calibration.
【CAL2】 Static Span Calibration with Chain Weight.
【SEG】 Segmenting Span Correction.
【SPD】 Speed Calibration.
【LEN】 Belt Length Calibration.
【TIME】 Date/Time Setting.
【CLS】 Clear Screen.
【REC】 Query and Print Weight Record.
【PRINT】 Print.

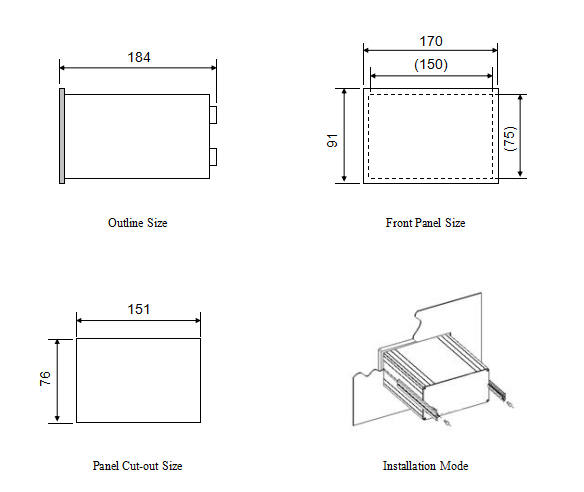

Model Panel-mounting Installation



High Frequency Sampling Belt Scale Controller With Anti Vibration Filter

Model Wall-mounting Installation



High Frequency Sampling Belt Scale Controller With Anti Vibration Filter

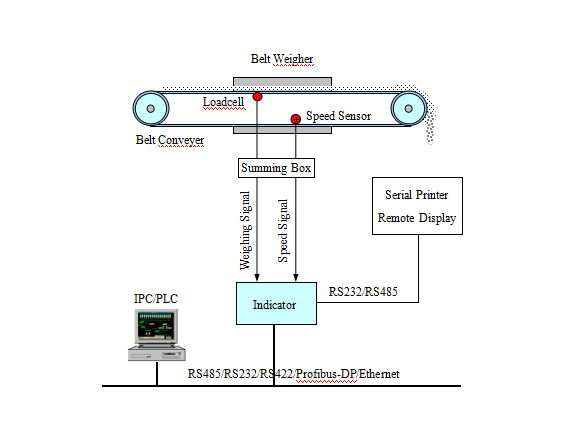

Belt Weighing System



High Frequency Sampling Belt Scale Controller With Anti Vibration Filter
