Corrosion Proof Load Cell Controller Indicator AC220V For Belt Weigher

Good quality Batch Weighing Controller for sales
Good quality Batch Weighing Controller for sales
I'm Online Chat Now

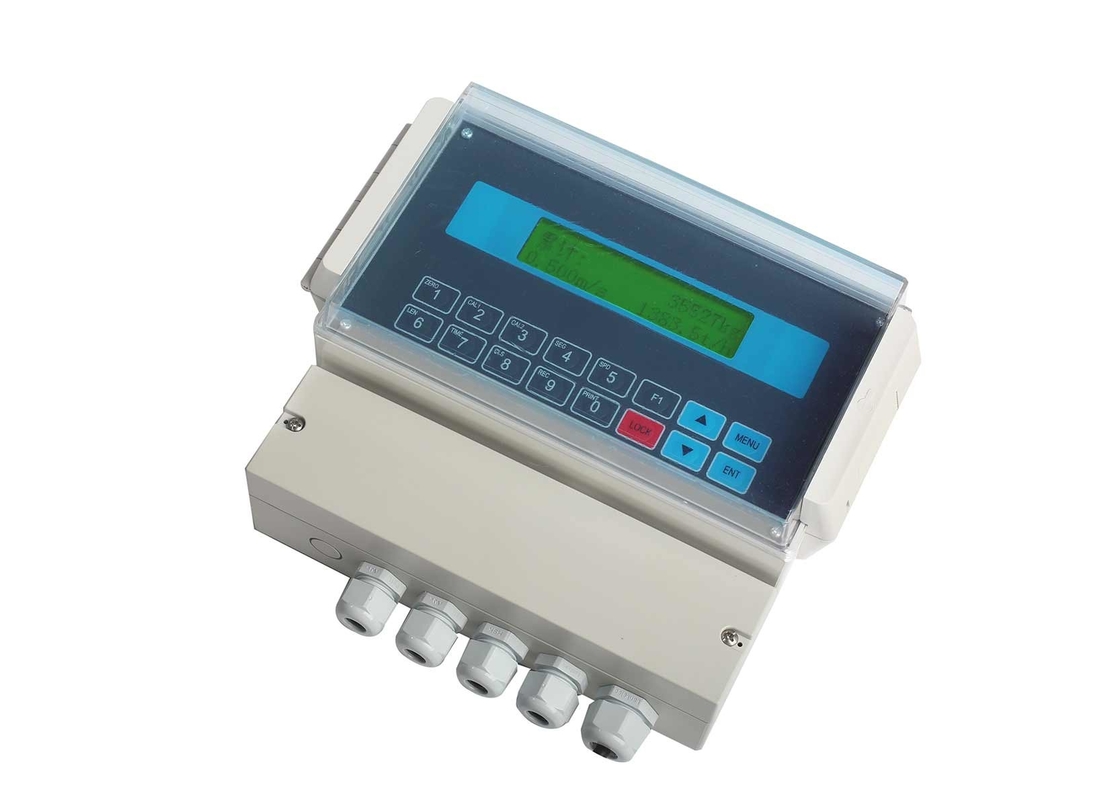

Corrosion Proof Load Cell Controller Indicator AC220V For Belt Weigher

China Corrosion Proof Load Cell Controller Indicator AC220V For Belt Weigher supplier
Corrosion Proof Load Cell Controller Indicator AC220V For Belt Weigher supplier Corrosion Proof Load Cell Controller Indicator AC220V For Belt Weigher supplier Corrosion Proof Load Cell Controller Indicator AC220V For Belt Weigher supplier Corrosion Proof Load Cell Controller Indicator AC220V For Belt Weigher supplier

Large Image :  Corrosion Proof Load Cell Controller Indicator AC220V For Belt Weigher

Product Details:

Place of Origin: China
Brand Name: SUPMETER
Certification: CE
Model Number: BST100-D52

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: 1pcs/box
Delivery Time: 30 working days
Payment Terms: T/T, Western Union
Supply Ability: 200pcs per month
Contact Now
Detailed Product Description
Operating Voltage: AC220V Communication: RS232
Loadcell: Max. Connect 8 Loadcells (350Ohm)

Weighing Controller For Belt Weigher For Corrosion-Proof Belt Weigher Indicator With AC220V





Main Features:

  • Suitable for belt weigher.
  • EMC design with high anti-jamming capability, suitable for industrial environment.
  • 32-bit ARM CPU with 72MHz & higher arithmetic speed.
  • 160×32 dots LCD display screen with yellow-green background for English display.
  • Menu&Shortcut mode operation with key tone.
  • High-precision ∑-△A/D conversion technology and broad-range speed pulse input circuit.
  • Max. Connection Quantity: 8 Loadcells (350Ω).
  • Auto-locking, Key-locking, Key-unlocking and Digital Setting&Calibration functions available.
  • Auto Zero Tracking, Speed Calibration and Belt Length Calibration functions available.
  • Optional AO [4~20mA] module for Flow signal output (COM1 port will be occupied).
  • 2 Optional communication ports for connecting IPC/PLC, LED Remote Display, Serial Printer and Wireless Module.
  • Corrosion-proof, water-proof, dust-proof and shock-proof shell for model wall-mounting.
  • Weight Records per shift/day/month of a year can be queried and printed.
  • With the multitasking mode, the weighing process will not be interrupted by parameter setting and the other operations.

Corrosion Proof Load Cell Controller Indicator AC220V For Belt Weigher

Corrosion Proof Load Cell Controller Indicator AC220V For Belt Weigher

Technical Specifications
 Power Supply: AC220V±15%, 50/60Hz, Max. 10W.
 Loadcell Excitation Voltage/Current: DC10V/250mA.
 8 Loadcells[350Ω] connectable.
 Weighing Signal Input Range: 0~25mV.
 Speed Sensor Excitation Voltage/Current: DC12V/100mA.
 Speed Signal Input Range: 0.5~3000Hz.
 COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet.
 COM2: RS232.
 Connect Host IPC, Remote Display, Printer&Wireless Module.
 Optional 4~20mA Analog Output [AO] Module by COM1.
 Outline Size [W×H×D]: 235.5 × 227.5 × 119.5 mm.
 Operating Temperature: -25℃~+45℃.
 Protection Level: IP65.
 Accuracy Grade: 0.5.

Corrosion Proof Load Cell Controller Indicator AC220V For Belt Weigher

FAQ:





1. Sample is Available?



Yes. This product support free sample. As long as you can bear the freight charge.



2. What detailed information do I need to provide if I want to place an order?

We need to know the following information: accuracy, Quantity, special requirements if you have, etc.



3. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.



4. What terms of payment are available?

We accept T/T, L/C, Trade assurance, Secure payment, Western Union,etc.



5.When will you arrange the production?

We will arrange the production immediately after receiving your payment.



6. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.



7. How long is the warranty period?

The warranty period for our products is 12 (twelve) months.

If the products from SUPMETER are proved to be unable to work normally due to unartificial reasons, and the problems can't be solved by customers under the technical support from SUPMETER, then customers can send the problematic items back to SUPMETER. SUPMETER is RESPONSIBLE to MEND (or REPLACE when necessary) them FREE OF CHARGE.

(Note: if after checking, the returned goods are proved to be in good condition, the trouble is resulted to be caused by improper operation by customers, SUPMETER is IRRESPONSIBLE to bear the shipping & other charges related to the returning.)
