|Material:||Stainless Steel||Operating Voltage:||DC24V±20%|
|Display:||640×480 TFT Color Display Screen For English, Simplified/Complex Chinese Character Display||Operating Temperature:||-20℃~+40℃|
|Max. Power Consumption:||10W||Outline Size:||168×213×50mm [W×H×D]|
High Accuracy Weighing Indicator Controller , Belt weigh feeder controller
ARM CPU system with higher arithmetic speed.
Dust-proof stainless Steel shell.
EMC design with high anti-jamming capability, suitable for industrial environment.
The DC24V power input circuit of weighing indicator has reverse polarity protection function.
The display information of Bucket Lifting/Declining state, Single-bucket-loading-weight, Totalized Loading Weight, Positive/Negative Deviation Value, Alarm state, Date/Time and other auxiliary data are used for adjusting if Single-bucket-loading-weight is valid and the loading process should be stopped.
The information of User Name, Car.No., Goods No., and Operator No. can be inputted.
High sampling frequency, multiple digital filter and acceleration compensation algorithm for ensuring high weighing accuracy in the lifting process of the bucket.
Using two oil pressure sensors for getting higher weighing accuracy than using one.
24-bit High-precision and high-speed ∑-△A/D conversion module with 1,000,000 internal code used and max. sampling frequency 400Hz.
1000 Loading Records can be saved, queried and printed, and each record can contain 50 Single-bucket-loading-weight values.
1000 Reload Records can be saved and open for reloading.
System Weighing Range: 100~12,000kg.
Scale Division: Optional 1, 2, 5, 10, 20, 50kg
Oil Pressure Sensor Interface
Excitation Voltage/Max.Current: DC12V/100mA & DC5V/100mA.
2 Oil Pressure signal inputs.
Signal Input Range: Optional 0~20mV, 0~5V[Factory Set Value].
∑-△ADC: 24-bit, 1,000,000 internal code used.
Sampling Frequency: Optional 50, 100, 200, 400Hz.
Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
Gain Drift: ±5ppm/℃.
Position Sensor Input Interface
1 Switch signal Input.
Output Voltage: DC12V.
Max. Output Current: 100mA.

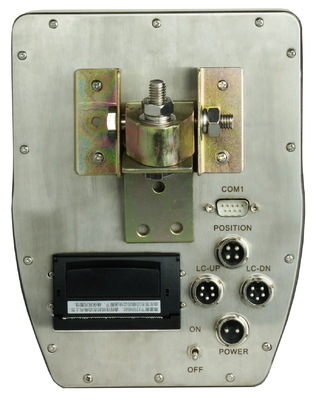

Digital Communication Interface
Internal COM2: Optional wireless serial communication module.
Internal COM3: Connected Thermal Serial Printer, Baud Rate 9600bps, No Parity Check Bit.
1000 Loading Records can be saved, queried and printed, and each record can contain 50pcs Single-bucket-loading-weight value.

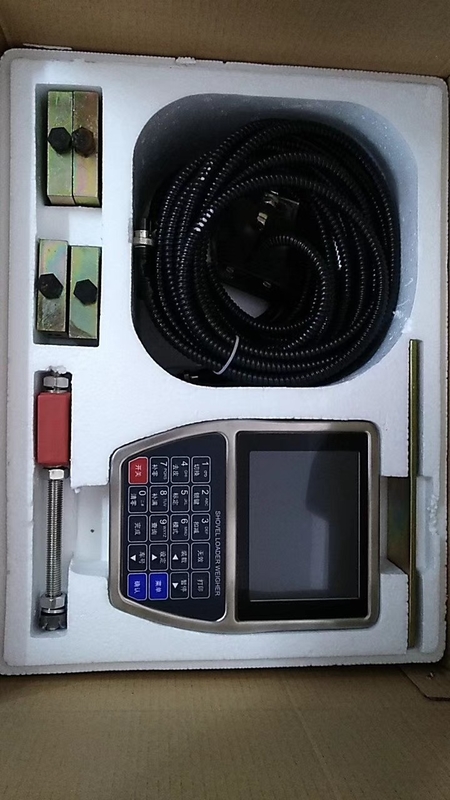

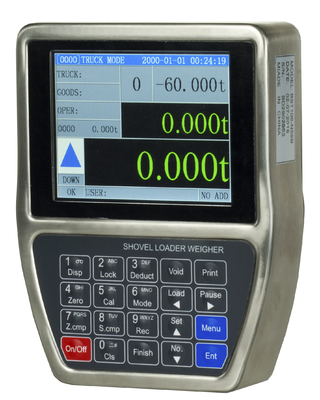

1 Weighing Indicator with Thermal Printer.

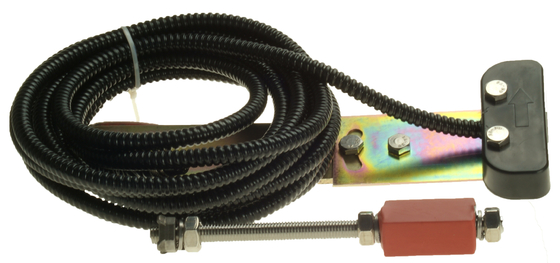

1 Position Sensor.

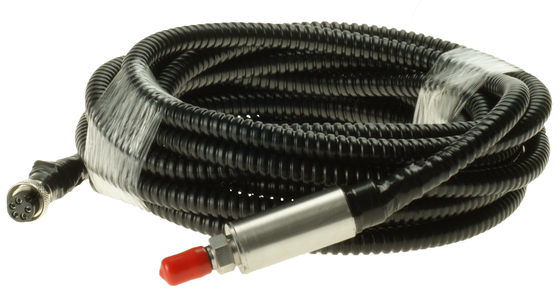

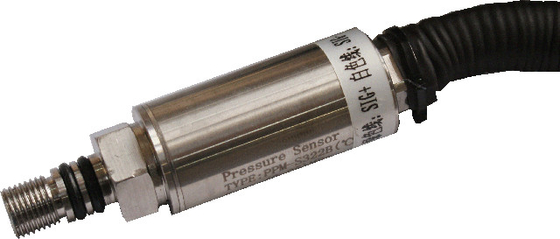

2 Oil Pressure Sensors [China/Switzerland].

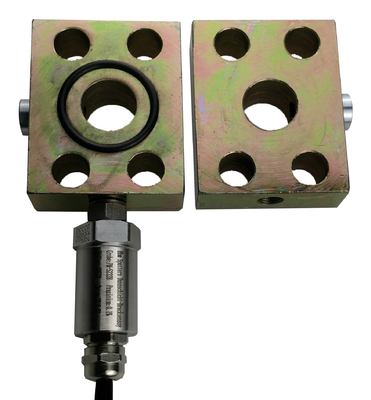

2 Plate Type Three-way Joints.
1 Mounting Fitting.
Accuracy of Single-Bucket -Weight: 0.5%~1.0%FS.
Accuracy of Totalized Loading Weight: ±1.0% (OIML Y(b) Accuracy Grade).
